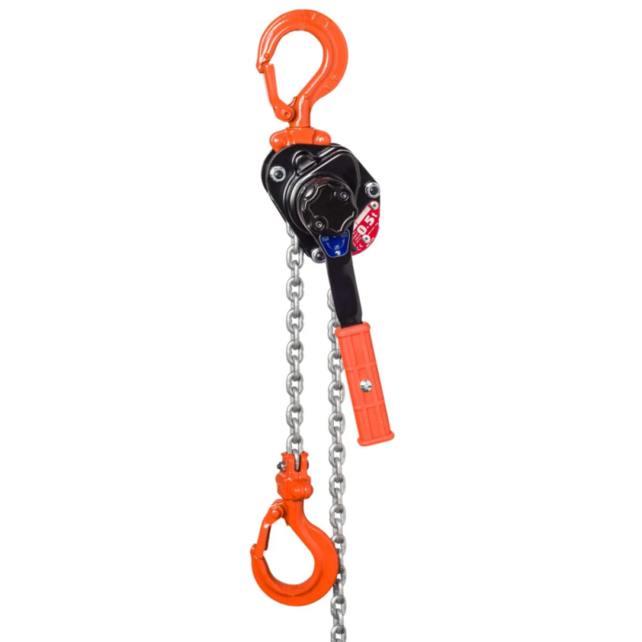

Elephant YA Mini Lever Hoist (Rema YAM) 0.5 Ton – Lifting Height 1.5–6 m
Elephant YA mini lever hoist (Rema YAM) 0.5 ton with lifting height 1.5–6 m. Compact lightweight design with low operating effort due to gear transmission, freewheel function and self-locking brake. Equipped with galvanized Grade 100 load chain. CE marked
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Elephant YA Mini Lever Hoist (Rema YAM) 0.5 Ton – Lifting Height 1.5 to 6 m

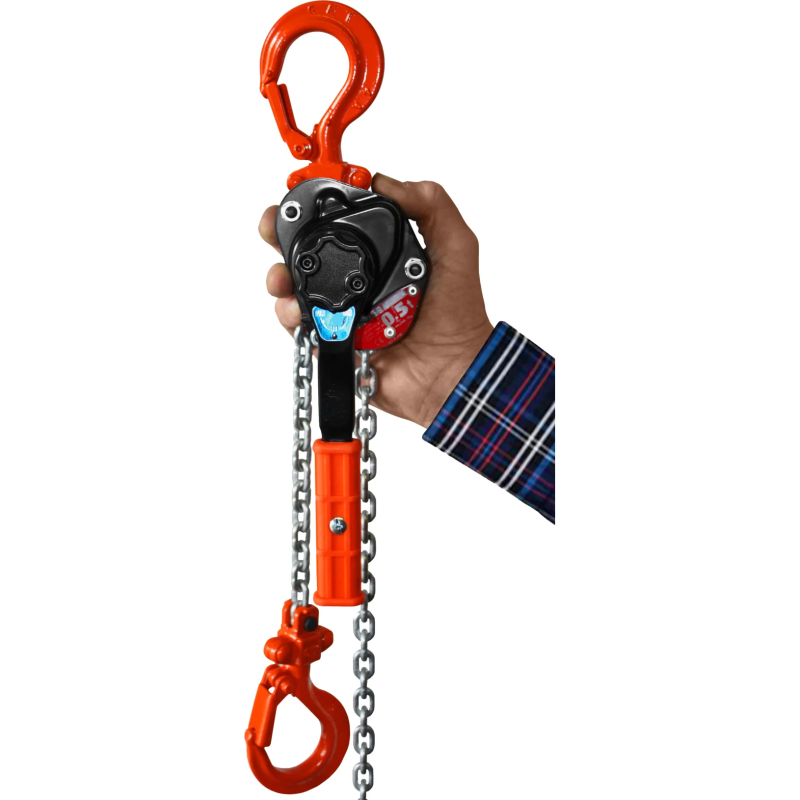

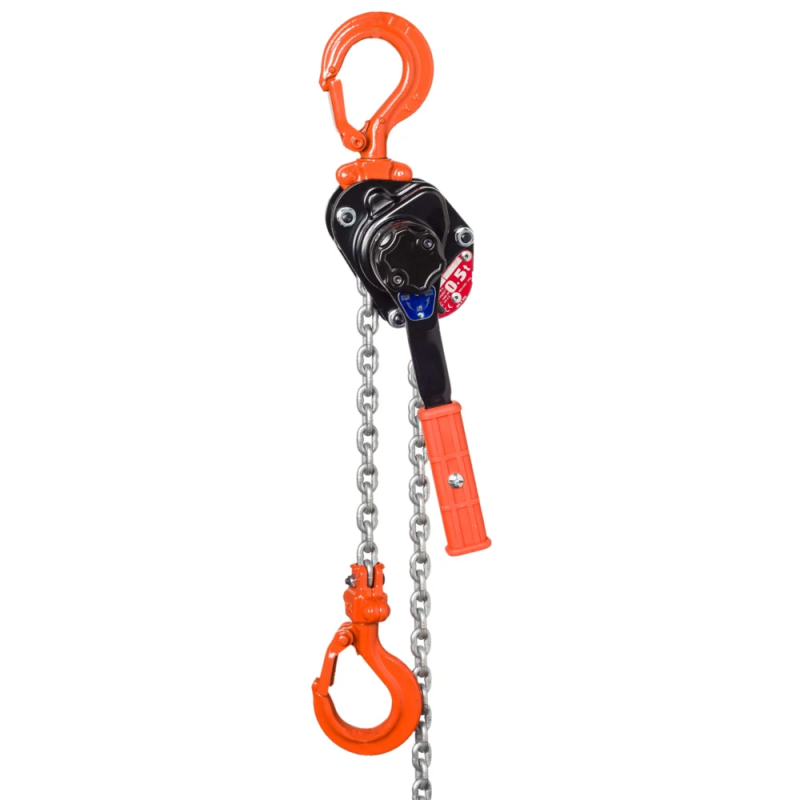

The Elephant YA mini lever hoist (Rema YAM) is a compact and lightweight tool designed for assembly work such as lifting, pulling, and tensioning. Thanks to its gear transmission, the required manual effort remains low even with the short 180 mm handle.
Its robust construction and safety features make it ideal for confined spaces and light industrial applications.
Key Features
- Capacity: 0.5 ton
- Available lifting heights: 1.5 to 6 meters
- Very low self weight (approx. 2.8 kg)
- Compact design with short handle (180 mm)
- Low operating effort due to gear transmission
- Self-locking brake system
- Freewheel function with one simple operation
- Hooks equipped with safety latches
- Overload protection via deformable hooks
- Rubber anti-slip handle
- Galvanized load chain (Grade 100)
- CE marked

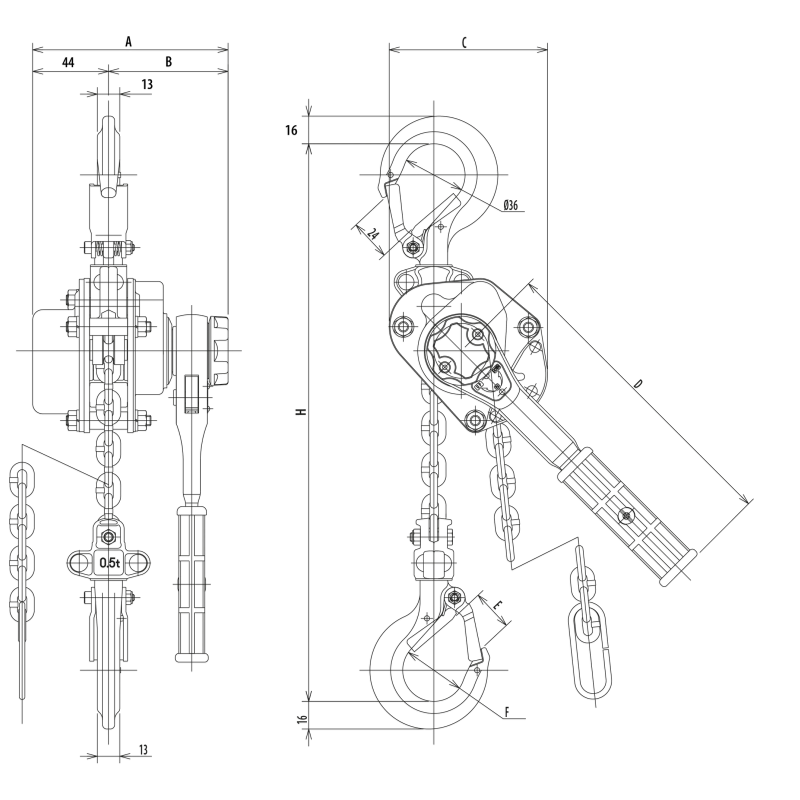

Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 0.5 ton |
| Lifting height | 1.5 – 6 m |
| Number of falls | 1 |
| Load chain | 4.3 x 12 mm |
| Construction height | 240 mm |
| Max hand force | 35 kg |
| Weight | 2.8 – 4.6 kg |
| Standards | EN13157, EN818-7 |
| Marking | CE |
Standard Delivery
- 1.5 m lifting height
- Ready for immediate use
