Elephant YA Lever Hoist 1–9 Ton – Lifting Height 1.5–6 m
Elephant YA lever hoist 1–9 ton with lifting heights from 1.5–6 m. Suitable for lifting, pulling, tensioning and clamping, with Grade 10 galvanized load chain, compact design, patented chain guide and CE marking to EN818-7 and EN13157.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

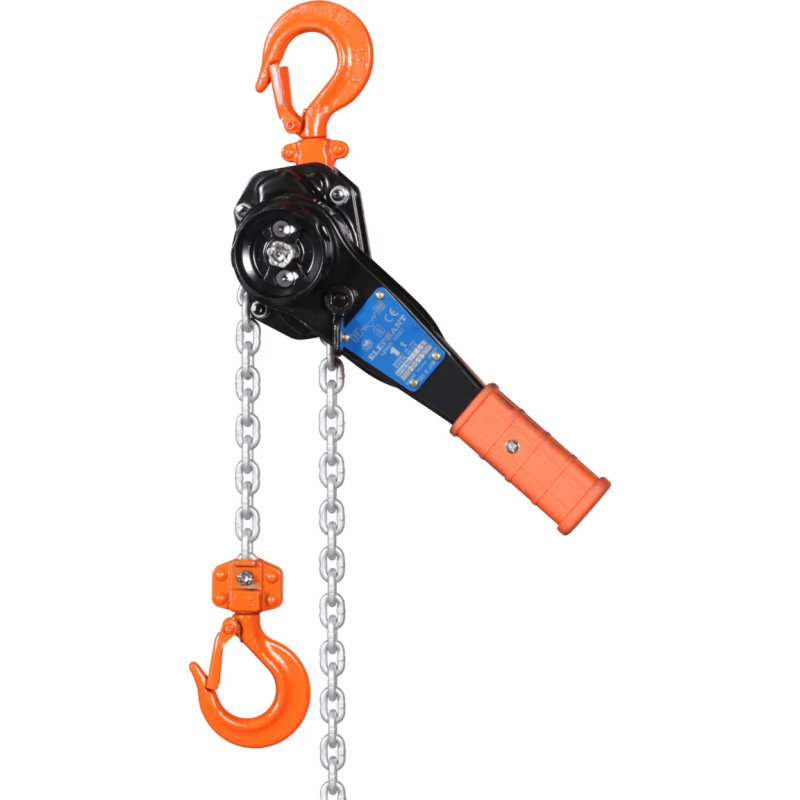

Elephant YA Lever Hoist – 1 to 9 Ton - Lifting Height 1.5–6 m
The Elephant YA series lever hoists are built for robust use in lifting, pulling, tensioning and clamping applications in almost any direction. Thanks to the solid and compact design, special rust-resistant coating, and fully enclosed gearing, this hoist is highly suitable for harsh environments such as offshore and mining industries.
The YA lever hoist combines low self-weight with high reliability and long service life. The one-touch change lever improves working efficiency, while the tough black body resists scratches and corrosion. A waterproof and shock-resistant gear and brake cover, together with the bolted rubber grip, ensure safe and comfortable operation.
Key Features
- Capacity: 1 to 9 ton
- Available lifting heights: 1.5, 3, 4.5 and 6 meters
- Standard supplied with 1.5 m lifting height
- Suitable for lifting, pulling, tensioning and clamping in all directions
- Compact construction with very low self-weight
- Special rust-resistant coating for demanding environments
- Fully enclosed gears for high reliability and reduced maintenance costs
- Grade 10 galvanized load chain with high tensile strength according to EN 818-7
- Reliable self-locking brake holds the load at any required height
- Hooks fitted with safety latches
- Hooks gradually bend under overload instead of breaking suddenly
- Patented guide for the load chain
- Double spring on each catch for additional safety
- Waterproof and shock-resistant gear and brake cover
- Bolted rubber grip for safe operation
- CE marked
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | 1 – 9 ton |
| Available lifting heights | 1.5 – 6 m |
| Standard lifting height | 1.5 m |
| Number of falls | 1 – 3, depending on model |
| Load chain | 5.6 x 17.1 mm to 9.0 x 27.2 mm, depending on model |

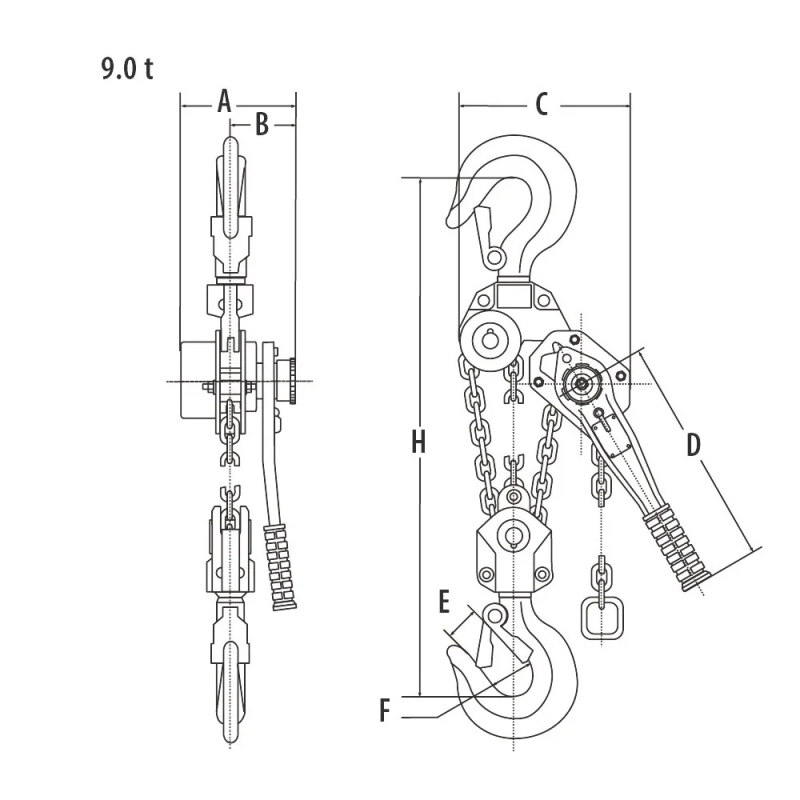

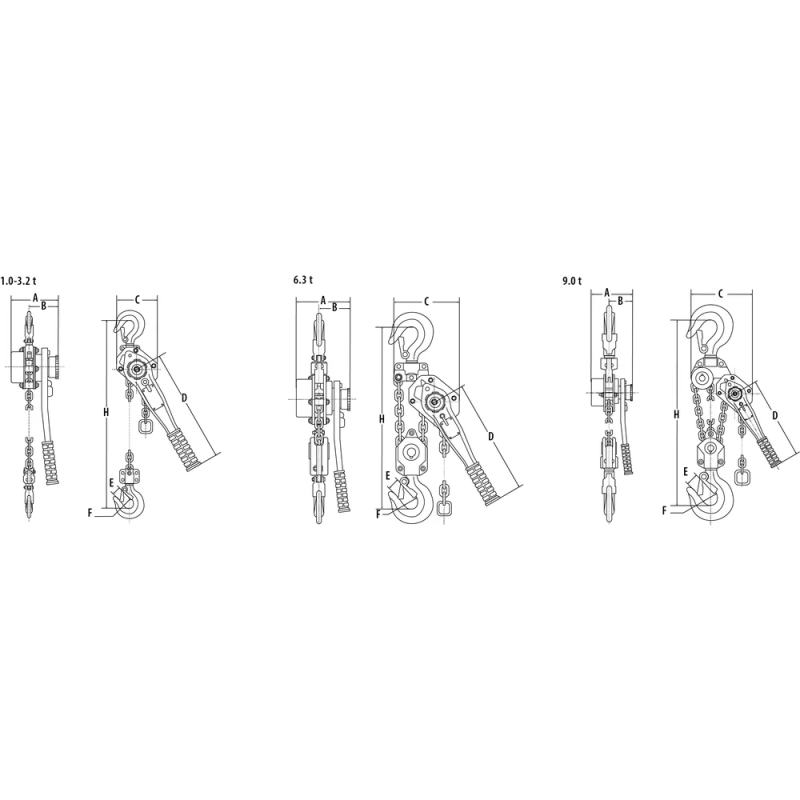

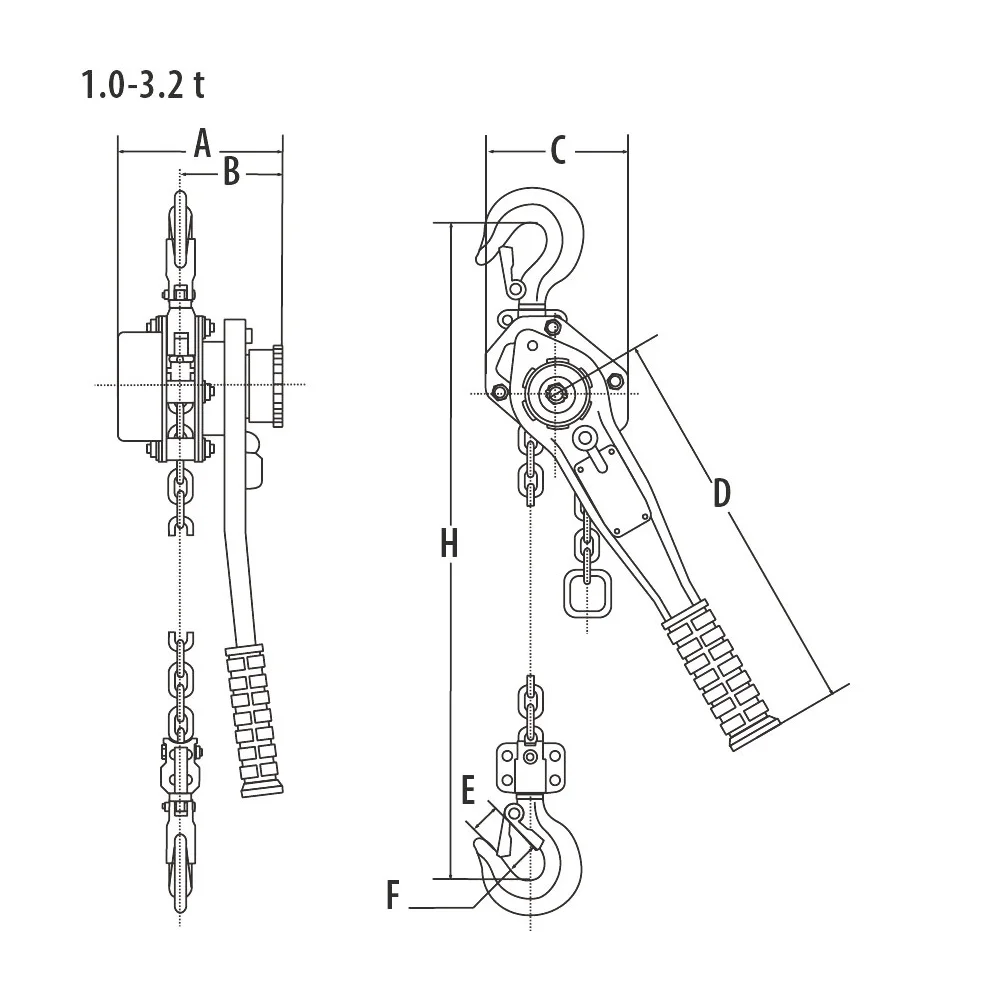

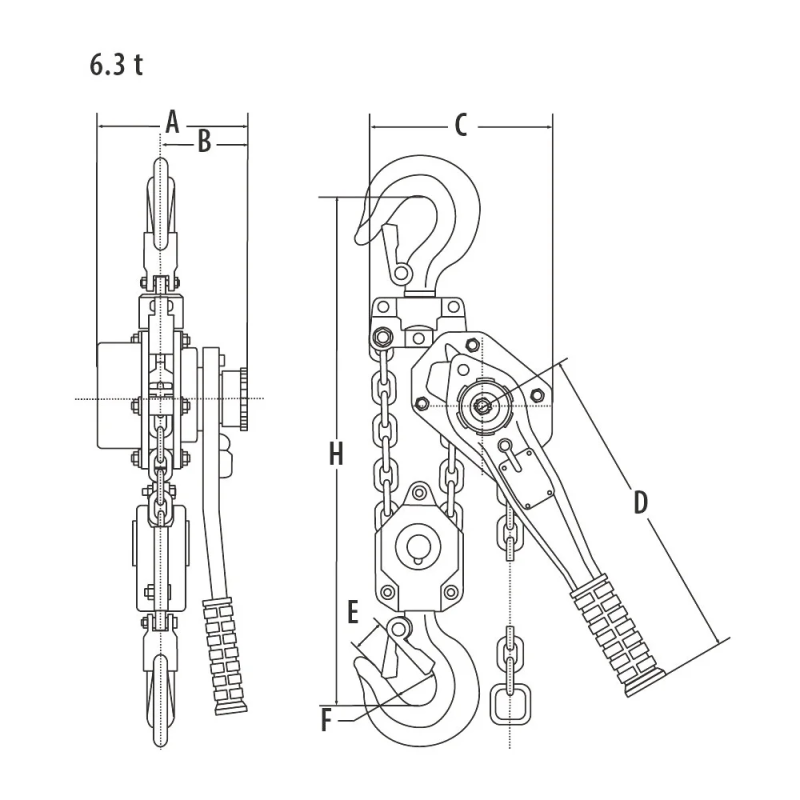

| Construction height | approx. 312 – 589 mm, depending on model |
| Max. hand force | approx. 30 – 39 kg, depending on model |
| Application | Lifting, pulling, tensioning and clamping |
| Safety | Self-locking brake, safety hooks, double spring, controlled overload behavior |
| Standards | EN 818-7, EN 13157 |
| Marking | CE |
Standard Delivery
- 1.5 m lifting height
- Maximum distance between top and bottom hook positions in standard version
- Ready for manual lifting and pulling applications
Options
- Other lifting heights available on request
Note
Technical values differ by capacity and model. Available capacities are 1, 1.6, 3.2, 6.3 and 9 ton.
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB020800315 |
| SKU | SB020800315 |
| EAN | 9509178794984 |
