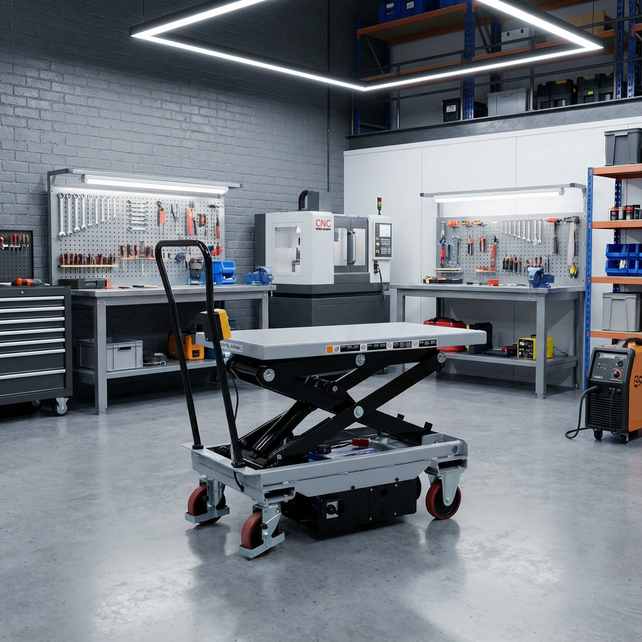

Electric mobile lift table, 1010x520 mm, 300kg capacity H1600 mm
Lifting table 1000Kg Scissor lift truck on wheels from Salesbridges is a mobile lifting table and the ideal support for loading, filling or unloading by means of an electric lifting motor.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

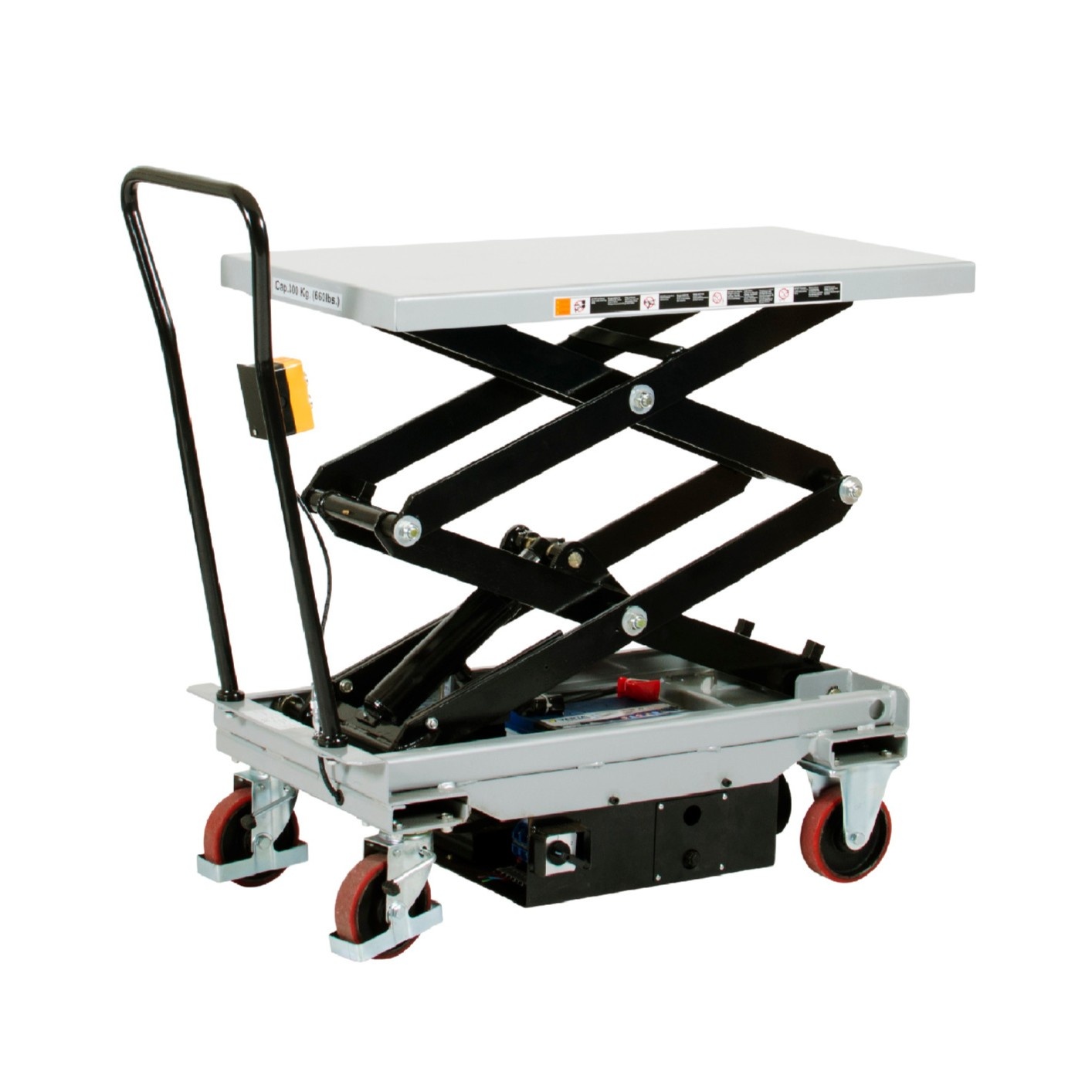

Mobile scissor lift table – SBHTES30D
This mobile lift table presents goods at a useful height for packing, filling and assembly. The lifting platform and wheeled base help adapt the workstation to the material flow.
The stated load capacity is 300 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 300 kg.
- Platform (L × W): 1010 × 520 mm.
- Lift height min.–max.: 495-1600 mm.
Technical specifications
| SKU | SBHTES30D |
|---|---|
| Configuration | Mobile scissor lift table |
| Maximum load capacity | 300 kg |
| Wheel / roller dimensions | Ø150 mm |
| Lift stroke | 1105 mm |
| Lift height min.–max. | 495-1600 mm |
| Platform (L × W) | 1010 × 520 mm |
| Overall dimensions (L × W × H) | 1260 × 520 × 495-1600 mm |
| Net weight | 183 kg |
| Time to maximum lift height | 15 s |
| Handle height | 1185 mm |
| Model | SBHTES30D |
Applications
- Presenting cartons and bins at packing stations
- Preparing components for assembly
- Moving goods between workstations
Configuration and use
Check platform size, lifting range and loading. Distribute the load and use the table on a suitable surface according to its instructions. A mobile goods lift table is not a personnel lift.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBHTES30D |
| SKU | SBHTES30D |
| EAN | 9505377732413 |
