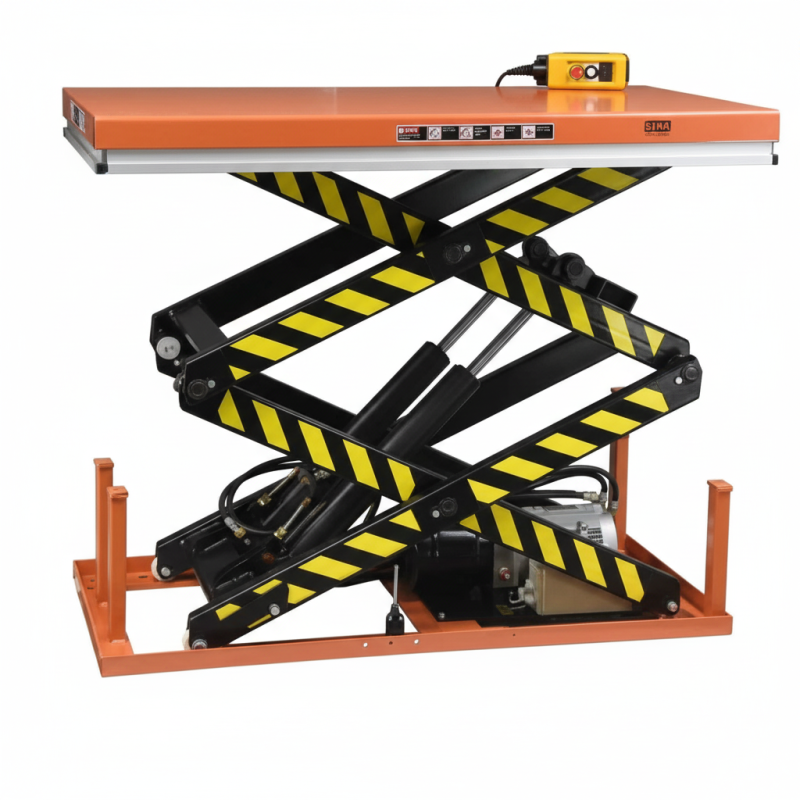

The SalesBridges double scissor stationary lift table is designed for heavy-duty industrial lifting tasks. With its robust double scissor mechanism, the table can safely lift loads up to 4000 kg to a maximum height of 2098 mm.

The lift table can be installed directly on the floor or recessed into a pit, making it suitable for warehouses, production facilities and assembly lines requiring efficient material handling.

Advanced safety features such as overload protection, hydraulic safety valves and an aluminium safety frame ensure safe and reliable operation.

Key Features

• Double scissor mechanism for extended lifting height

• Platform size 1700 x 1200 mm

• Maximum lifting height 2098 mm

• Load capacity 4000 kg

• Suitable for floor or pit installation

• Aluminium safety frame

• Overload protection

• Hose rupture safety valve

• Controlled descent hydraulic valve

• Hard chromed cylinder and piston rod

• Lifetime lubricated bearings

• Operating voltage 400V, control voltage 24V

• Protection class IP54

• CE marked according to EN 12100 and EN 13157

Applications

• Industrial production

• Assembly lines

• Warehouse logistics

• Machine servicing

• Ergonomic workstations

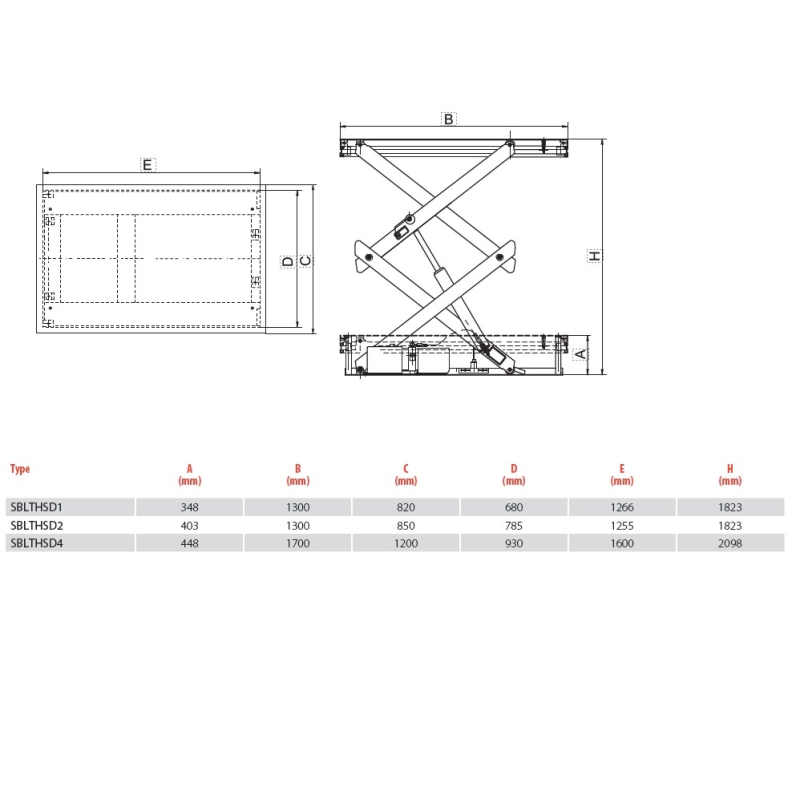

Technical Specifications

Standard Delivery

• 24V push button control

• Emergency stop

• Removable lifting eyes for transport
