Double Scissor Stationary Lift Table 2 Ton – Platform 1300 x 850 mm – Lifting Height 1823 mm

Double Scissor Stationary Lift Table 2 Ton – Platform 1300 x 850 mm – Lifting Height 1823 mm

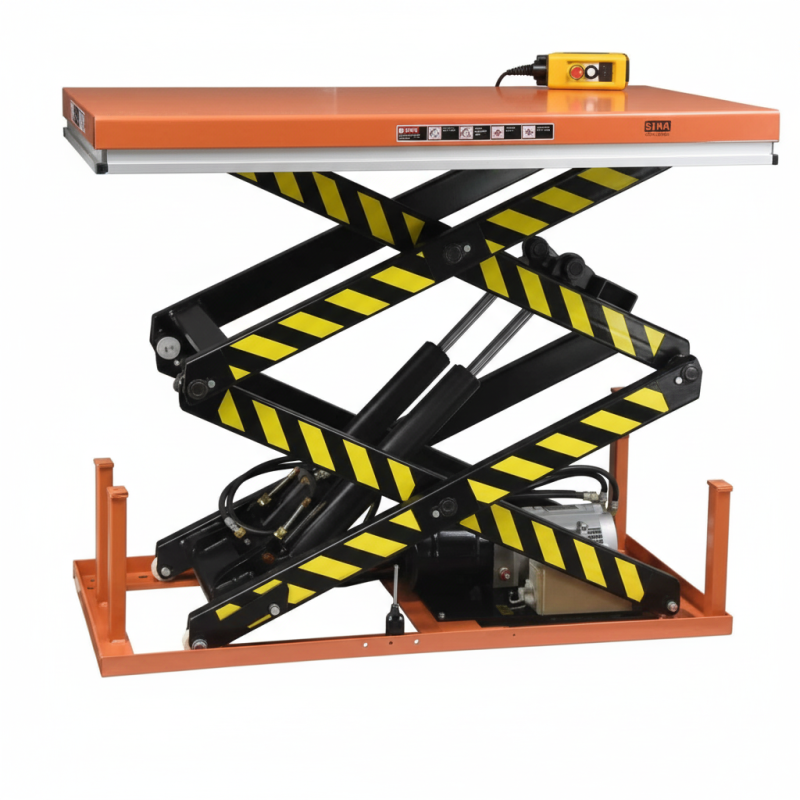

The SalesBridges double scissor stationary lift table is designed for heavy duty industrial lifting applications. With its double scissor mechanism, the table can lift loads up to 2000 kg to a maximum height of 1823 mm while maintaining excellent stability.

This lifting table can be installed on the floor or recessed into a pit, making it ideal for warehouses, production facilities and assembly lines where ergonomic material handling is required.

Safety features such as overload protection, hydraulic safety valves and an aluminium safety frame ensure reliable and secure operation.

Key Features

• Double scissor mechanism for extended lift height

• Platform size 1300 x 850 mm

• Maximum lifting height 1823 mm

• Load capacity 2000 kg

• Suitable for floor or pit installation

• Aluminium safety frame

• Overload protection

• Hose rupture safety valve

• Controlled descent hydraulic valve

• Hard chromed cylinder and piston rod

• Lifetime lubricated bearings

• Operating voltage 400V, control voltage 24V

• Protection class IP54

• CE marked according to EN 12100 and EN 13157

Applications

• Industrial production

• Assembly lines

• Warehouse logistics

• Machine maintenance

• Ergonomic workstations

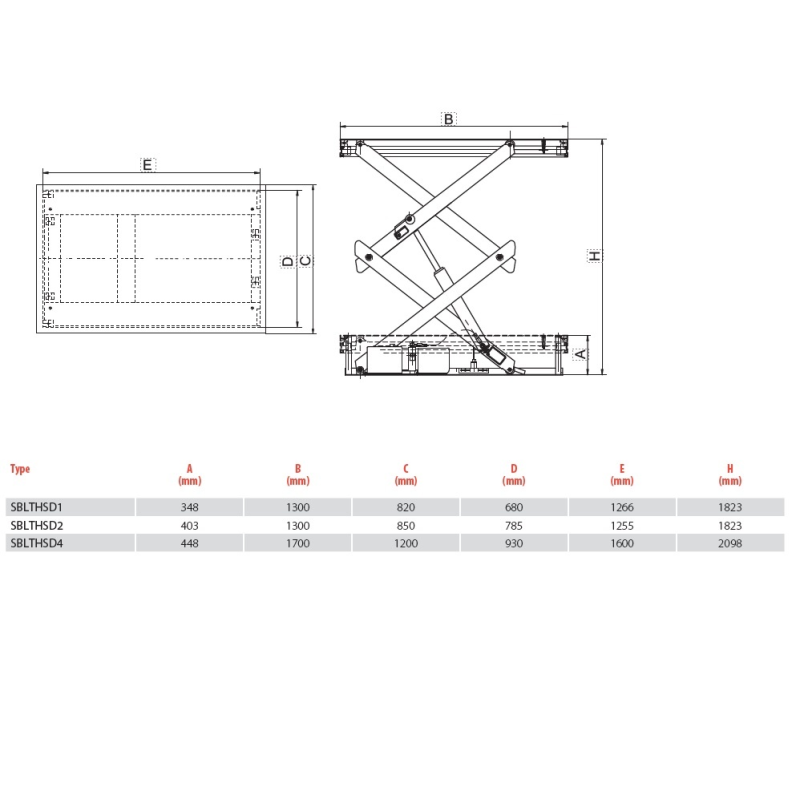

Technical Specifications

Standard Delivery

• 24V push button control

• Emergency stop

• Removable lifting eyes for transport

Delivery

Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
