Double Scissor Stationary Lift Table 1 Ton – Platform 1300 x 820 mm – Lifting Height 1823 mm

Double Scissor Stationary Lift Table 1 Ton – Platform 1300 x 820 mm – Lifting Height 1823 mm

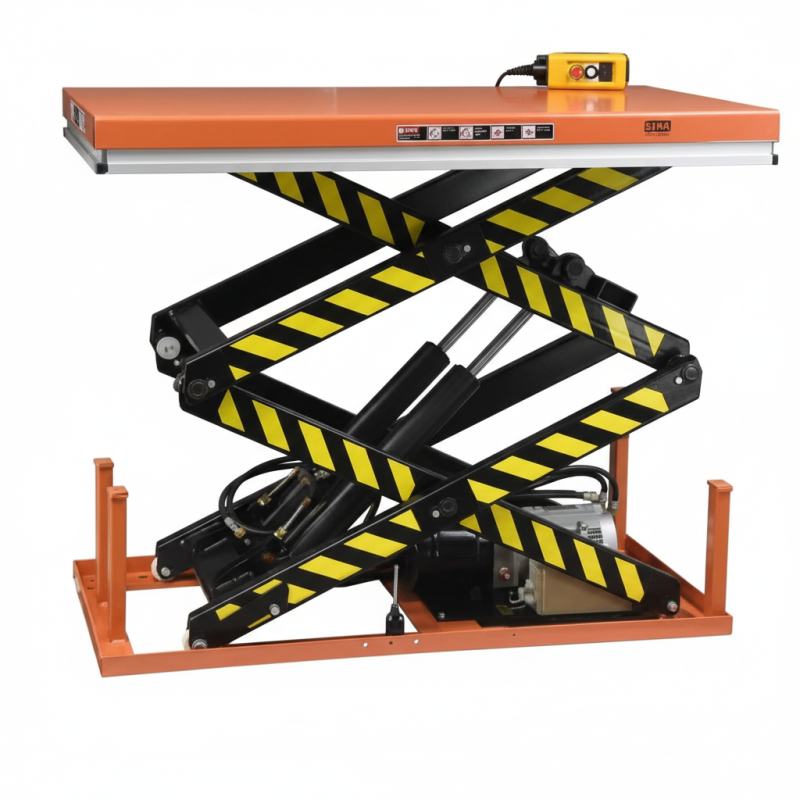

The SalesBridges double scissor stationary lift table is designed for industrial environments where extended lifting height and stability are required. With its double scissor mechanism, this lifting table can safely lift loads up to 1 ton to a maximum height of 1823 mm.

The lift table can be installed directly on the floor or recessed into a pit, making it ideal for production facilities, warehouses and assembly stations where ergonomic working conditions are essential.

The combination of overload protection, hydraulic safety systems and an aluminium safety frame ensures maximum operational safety and reliability.

Key Features

• Double scissor mechanism for higher lifting range

• Platform size 1300 x 820 mm

• Maximum lifting height 1823 mm

• Suitable for floor or pit installation

• Aluminium safety frame for protection

• Overload protection for safe operation

• Special hydraulic valve for controlled descent

• Hose rupture safety valve

• Hard chromed cylinder and piston rod

• Lifetime lubricated bearings

• Operating voltage 400V, control voltage 24V

• Protection class IP54

• CE marked according to EN 12100 and EN 13157

Applications

This industrial lift table is commonly used in:

• Industrial production facilities

• Assembly lines

• Warehouses and logistics centers

• Machine servicing and maintenance

• Ergonomic workstations

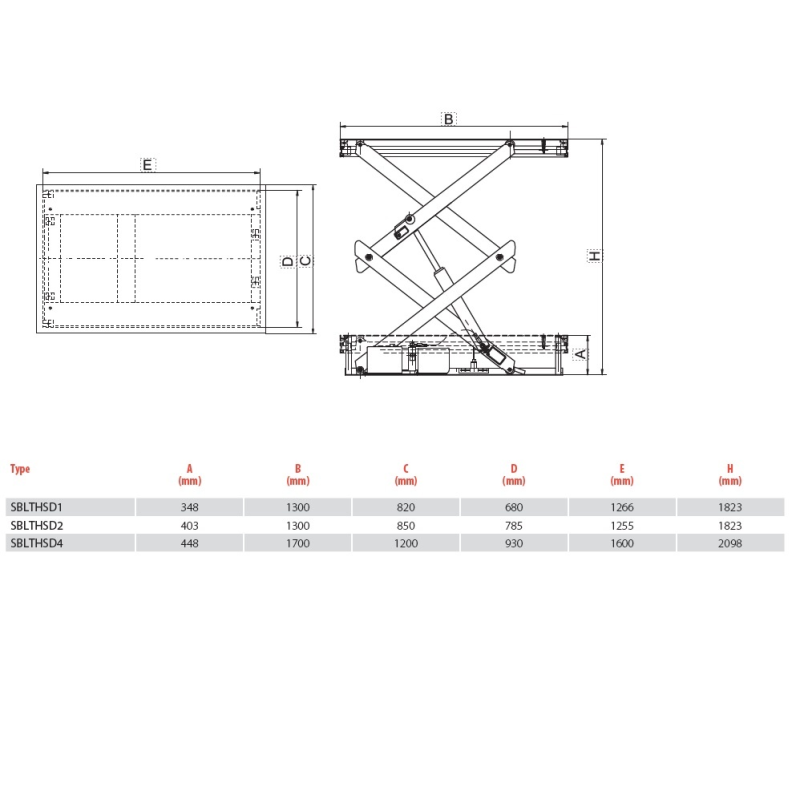

Technical Specifications

Standard Delivery

• 24V push button control

• Emergency stop

• Removable lifting eyes for transport

Delivery

Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.

Request For Quotation

For pricing, technical details or project inquiries:

Email: [email protected]
Phone / WhatsApp: +31 6 52883848
