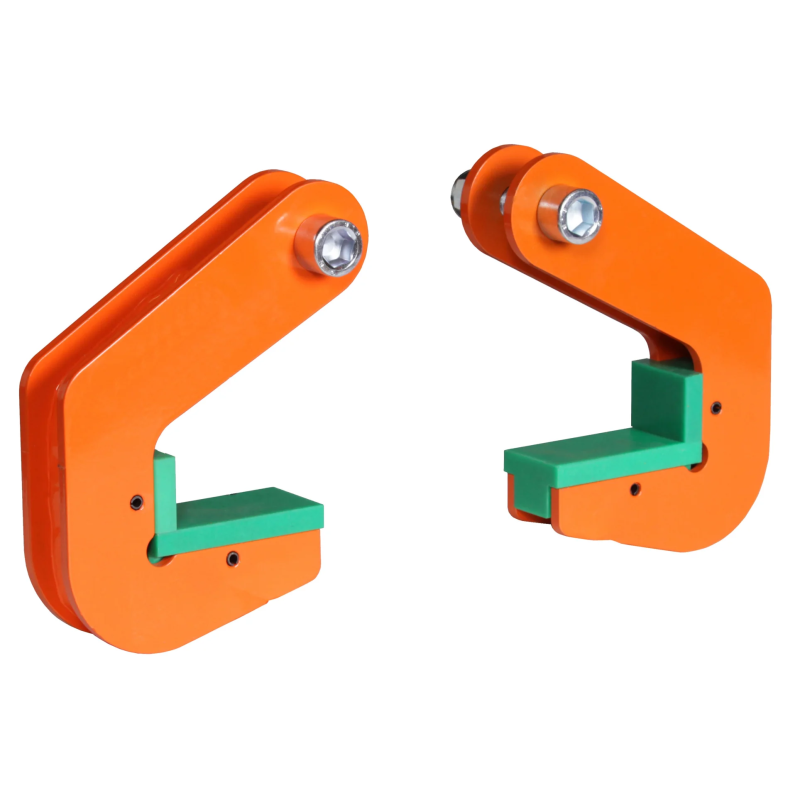

CPH Horizontal pipe lifting clamps - 1500-20000 kg
Horizontal pipe lifting clamps CPH with 1500-20000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
CPH Horizontal pipe lifting clamps - 1500-20000 kg
Horizontal pipe lifting clamps CPH with 1500-20000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
Key features
- Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Working load limit and weight apply per pair; always use as a pair.
- Robust professional construction for repeated industrial use.
- Select the correct model for the material, load and gripping range.
- Use only in accordance with the operating manual and inspect visually before every use.
Technical specifications

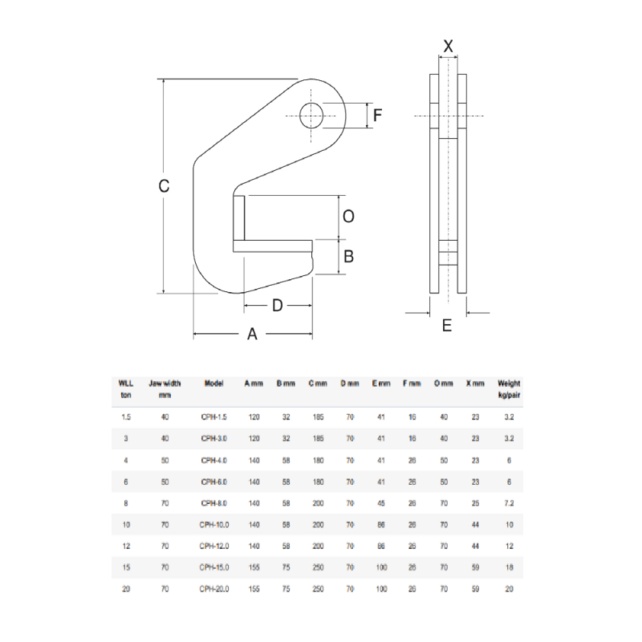

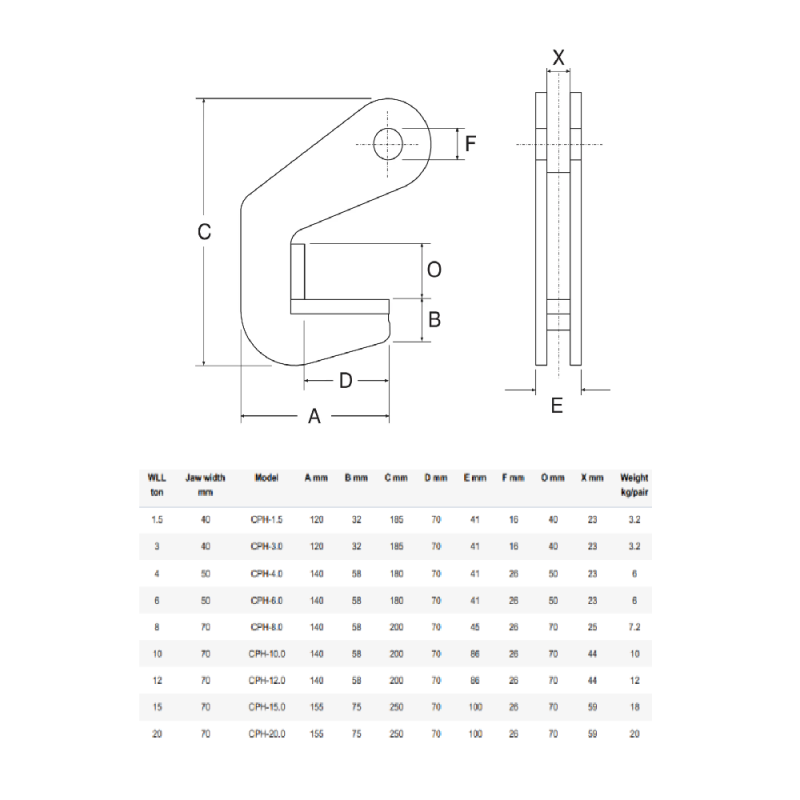

| Model | Working load limit | Jaw opening | Weight | Article code |
|---|---|---|---|---|
| CPH-1.5 | 1500 kg | 40 mm | 3.2 kg | SB3313025 |
| CPH-3.0 | 3000 kg | 40 mm | 3.2 kg | SB3313027 |
| CPH-4.0 | 4000 kg | 50 mm | 6 kg | SB3313029 |
| CPH-6.0 | 6000 kg | 50 mm | 6 kg | SB3313031 |
| CPH-8.0 | 8000 kg | 70 mm | 7.2 kg | SB3313033 |
| CPH-10.0 | 10000 kg | 70 mm | 10 kg | SB3313034 |
| CPH-12.0 | 12000 kg | 70 mm | 12 kg | SB3313035 |
| CPH-15.0 | 15000 kg | 70 mm | 18 kg | SB3313037 |
| CPH-20.0 | 20000 kg | 70 mm | 20 kg | SB3313039 |
| Standards | NEN-EN 13155; safety factor at least 5:1; proof load 2 x WLL where specified | |||
Properties
-
Protective jaw: The jaw is covered with a special high-quality, pressure-resistant plastic.
-
Usage: These hooks must always be used in pairs.
Application
-

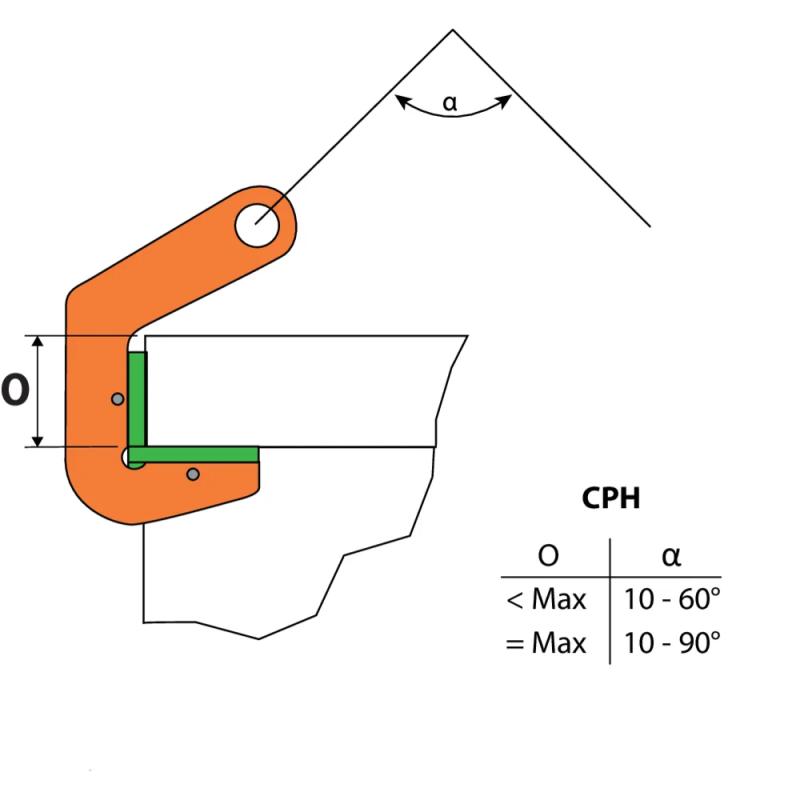

Horizontal lifting and transport: For horizontal lifting and transporting of steel and concrete pipes without damaging the product.
-
WLL: Per pair.
-
Marking: CE-marked according to the standard.
-
Standards: EN 13155, EN 12100
-
Note: Exclusive fasteners.
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
| Brand | Rema |
| Article code | SB3313025 |
| SKU | SB3313025 |
| EAN | 9509858675879 |
