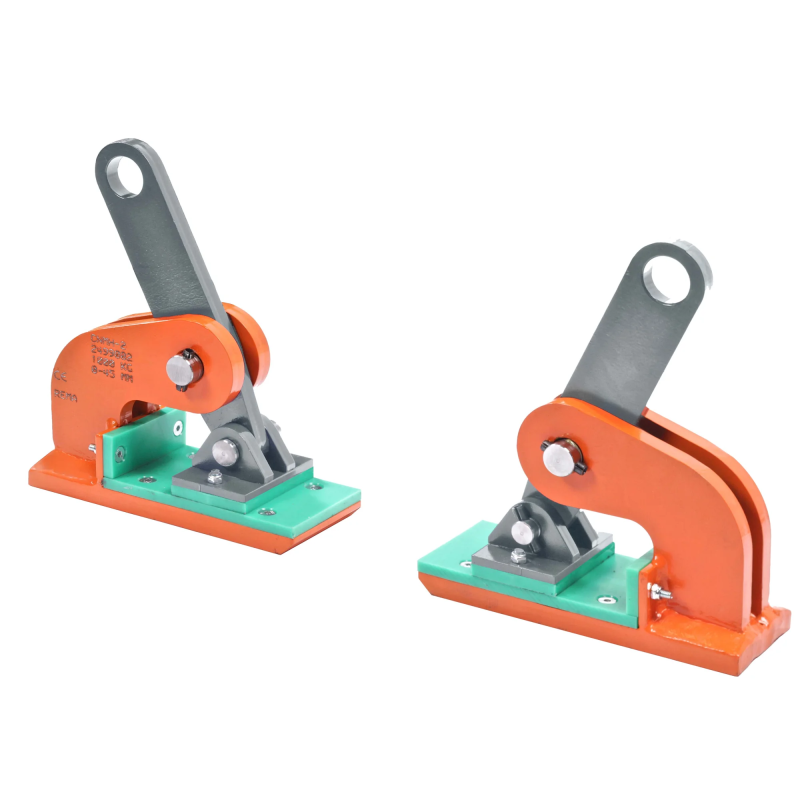

CNMH Non-marking horizontal lifting clamps - 1000-6000 kg
Non-marking horizontal lifting clamps CNMH with 1000-6000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
CNMH Non-marking horizontal lifting clamps - 1000-6000 kg
Non-marking horizontal lifting clamps CNMH with 1000-6000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
Key features
- Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Working load limit and weight apply per pair; always use as a pair.
- Synthetic contact surfaces help protect sensitive materials.
- Select the correct model for the material, load and gripping range.
- Use only in accordance with the operating manual and inspect visually before every use.

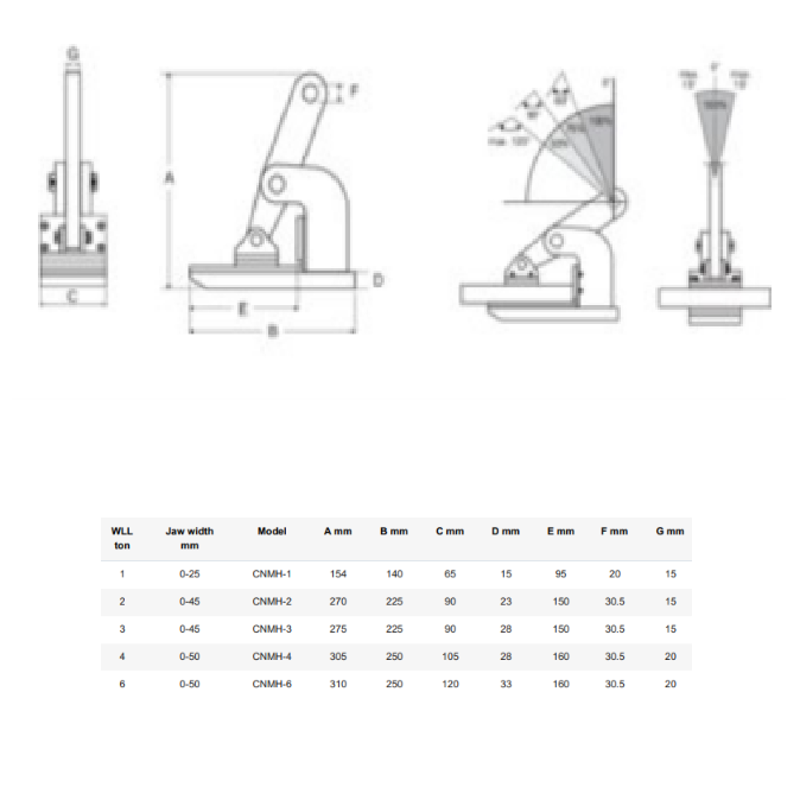

Technical specifications
| Model | Working load limit | Jaw opening | Weight | Article code |
|---|---|---|---|---|
| CNMH-1 | 1000 kg | 0-25 mm | 7 kg | SB3366001 |
| CNMH-2 | 2000 kg | 0-45 mm | 18 kg | SB3366002 |
| CNMH-3 | 3000 kg | 0-45 mm | 26 kg | SB3366003 |
| CNMH-4 | 4000 kg | 0-50 mm | 32 kg | SB3366004 |
| CNMH-6 | 6000 kg | 0-50 mm | 34 kg | SB3366006 |
| Standards | NEN-EN 13155; safety factor at least 5:1; proof load 2 x WLL where specified | |||
Application
-
Pour : Le transport horizontal de tôles en acier inoxydable, de différents panneaux en bois, d’aluminium, etc.
-
Marquage : Marqué CE conformément à la norme.
-
Normes : EN 13155, EN 12100

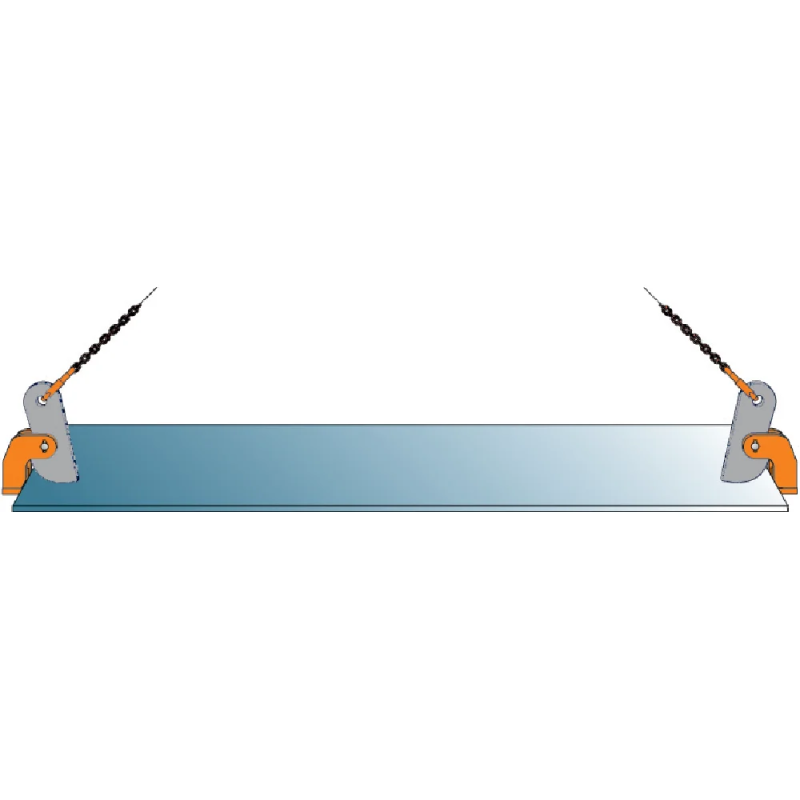

Application
-
For: Horizontal transport of stainless steel plates, various wooden panels, aluminum, etc.
-
Marking: CE-marked according to the standard.
-
Standards: EN 13155, EN 12100
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
| Brand | Rema |
| Article code | SB3366001 |
| SKU | SB3366001 |
| EAN | 9502778275822 |
