CH Horizontal plate lifting clamps - 1000-10000 kg

CH Horizontal plate lifting clamps - 1000-10000 kg

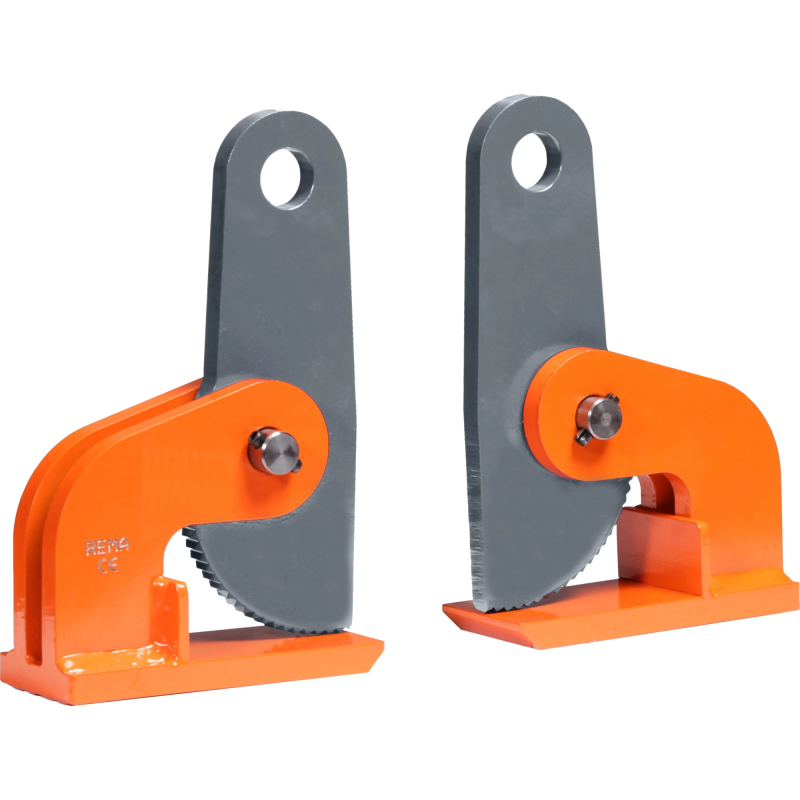

Horizontal plate lifting clamps CH with 1000-10000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.

Key features

• Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
• Working load limit and weight apply per pair; always use as a pair.
• Robust professional construction for repeated industrial use.
• Select the correct model for the material, load and gripping range.
• Use only in accordance with the operating manual and inspect visually before every use.

Technical specifications

Properties

• WLL and jaw opening size: Clearly indicated on the clamp.

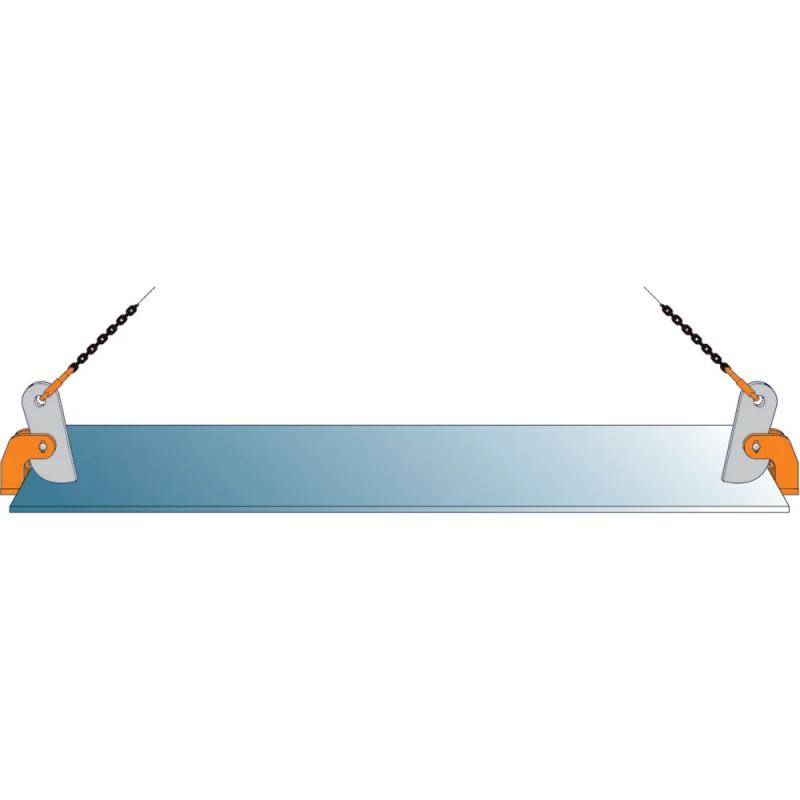

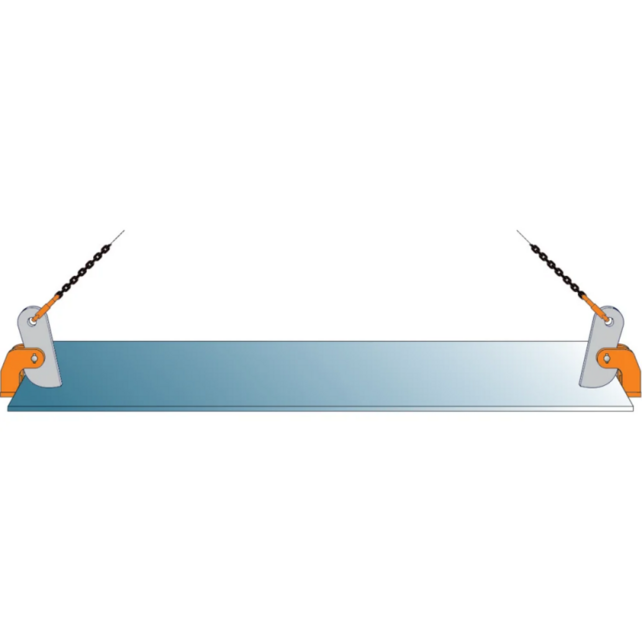

• Suitable for: Hoisting and horizontal transport of steel plates that do not bend.

• Application: Can also be used under a lifting frame or chain sling.

• Usage: Always use in pairs.

• Design: Low weight and compact design.

• Safety factor: At least 5 × WLL.

• Testing: Each clamp is test-loaded to 2 × WLL.

Application

• For lifting: Steel plates up to a hardness of 37 RC (345 HB).

• For transport: Safe transport of steel plates in a horizontal position.

• Marking: CE-marked according to the standard.

• Standards: EN 13155, EN 12100

• Safety factor: 5

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
