CHV Adjustable horizontal plate lifting clamps - 1500-9000 kg
Adjustable horizontal plate lifting clamps CHV with 1500-9000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
CHV Adjustable horizontal plate lifting clamps - 1500-9000 kg
Adjustable horizontal plate lifting clamps CHV with 1500-9000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
Key features
- Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
- Working load limit and weight apply per pair; always use as a pair.
- Robust professional construction for repeated industrial use.
- Select the correct model for the material, load and gripping range.
- Use only in accordance with the operating manual and inspect visually before every use.

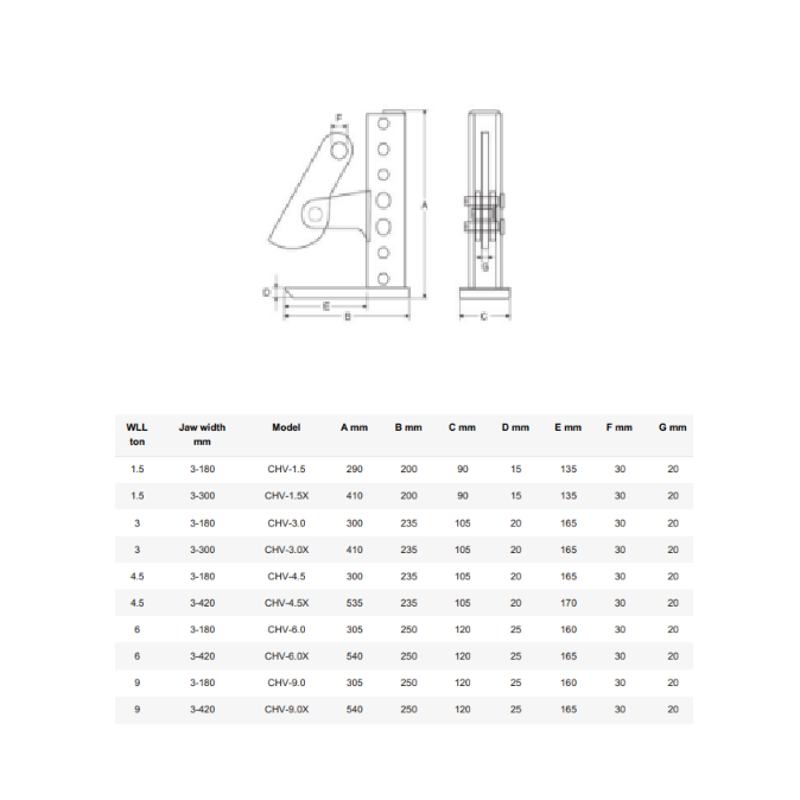

Technical specifications
| Model | Working load limit | Jaw opening | Weight | Article code |
|---|---|---|---|---|
| CHV-1.5 | 1500 kg | 3-180 mm | 18 kg | SB3315011 |
| CHV-1.5X | 1500 kg | 3-300 mm | 23 kg | SB3315013 |
| CHV-3.0 | 3000 kg | 3-180 mm | 29 kg | SB3315015 |
| CHV-3.0X | 3000 kg | 3-300 mm | 31 kg | SB3315017 |
| CHV-4.5 | 4500 kg | 3-180 mm | 32 kg | SB3315019 |
| CHV-4.5X | 4500 kg | 3-420 mm | 34 kg | SB3315021 |
| CHV-6.0 | 6000 kg | 3-180 mm | 40 kg | SB3315023 |
| CHV-6.0X | 6000 kg | 3-420 mm | 46 kg | SB3315025 |
| CHV-9.0 | 9000 kg | 3-180 mm | 51 kg | SB3315027 |
| CHV-9.0X | 9000 kg | 3-420 mm | 60 kg | SB3315029 |
| Standards | NEN-EN 13155; safety factor at least 5:1; proof load 2 x WLL where specified | |||
Properties
-
Marking: CE-marked according to the standard.
-
Standards: EN 13155, EN 12100
-
Safety factor: 5
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
| Brand | Rema |
| Article code | SB3315013 |
| SKU | SB3315013 |
| EAN | 9507361886324 |
