BLACK-LINE Hand Chain Hoist 0.25–0.5 Ton – Lifting Height 10–15 m

Create your own review

EUR 340,00 Excl. tax

EUR 411,40 Incl. tax

Excl. Shipping costs

BLACK-LINE hand chain hoist 0.25–0.5 ton with 10 or 15 m lifting height, designed for theatre and stage use. Black body and hooks for low visibility, double pawl system, load pressure brake with asbestos-free friction discs and galvanized Grade 8 load cha

In stock

3-4 days

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

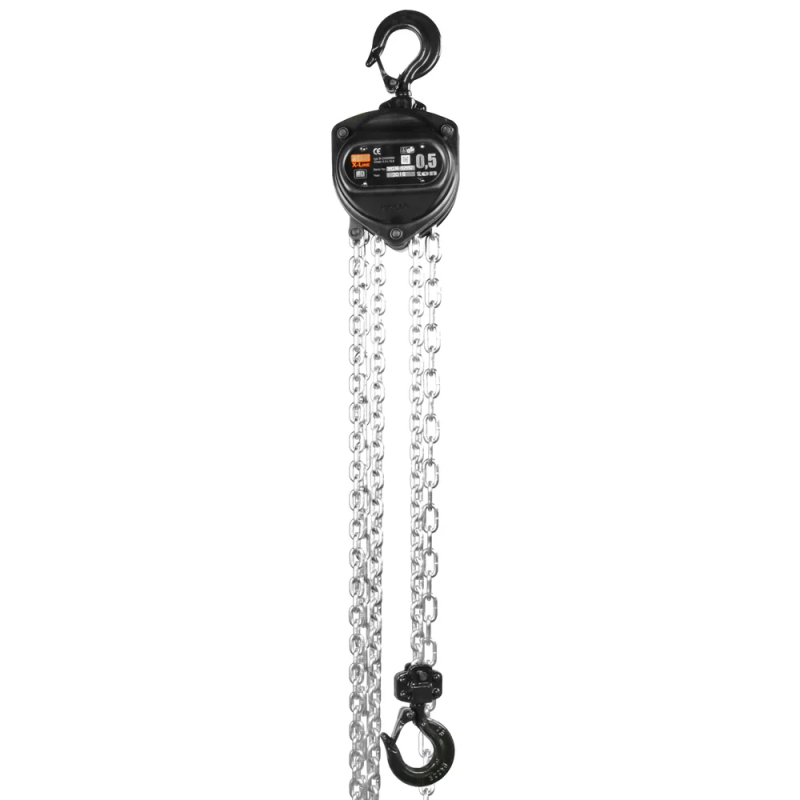

BLACK-LINE Hand Chain Hoist – 0.25 to 0.5 Ton - Lifting Height 10–15 m

The BLACK-LINE hand chain hoist is specially designed for theatre, stage and entertainment applications where safety, ergonomics and low operating effort are essential. The black body and black hooks reduce visibility in sensitive dark environments such as theatres and stages.

Key Features

Capacity: 0.25 to 0.5 ton
Lifting height: 10 or 15 meters
Specially suited for theatre and stage use
Black housing and hooks for reduced visibility
Low operating effort at full load
Increased operational safety due to double pawl system
Load pressure brake with asbestos-free friction discs
Load chain wheel made of wear-resistant alloy steel
Top and bottom hooks with safety latches
Hooks gradually bend under overload instead of breaking suddenly
Galvanized Grade 8 load chain
Galvanized hand chain
CE marked

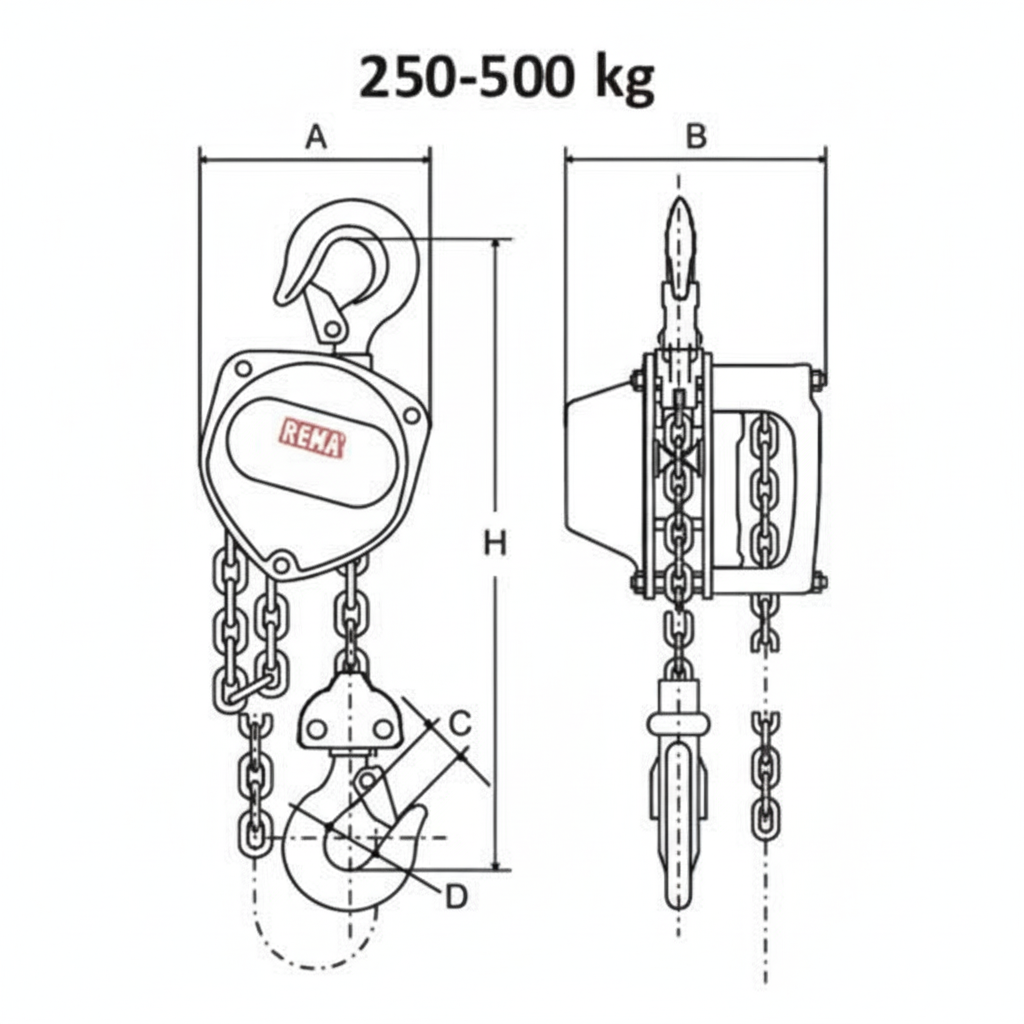

Technical Specifications

Feature	Specification
Capacity	0.25 – 0.5 ton
Lifting height	10 – 15 m
Number of falls	1 – 2 depending on model
Load chain	4.0 x 12 mm / 5.0 x 15 mm, Grade 8
Hand chain	5.0 x 23.7 mm
Construction height	280 mm
Max. hand force	23.5 – 24.9 kg
Housing	Steel, black finish
Standards	EN12100-1/2, EN13157, EN818-7
Marking	CE
