Workshop Crane for EU-Pallet Handling – 1000 kg (Heavy-Duty)

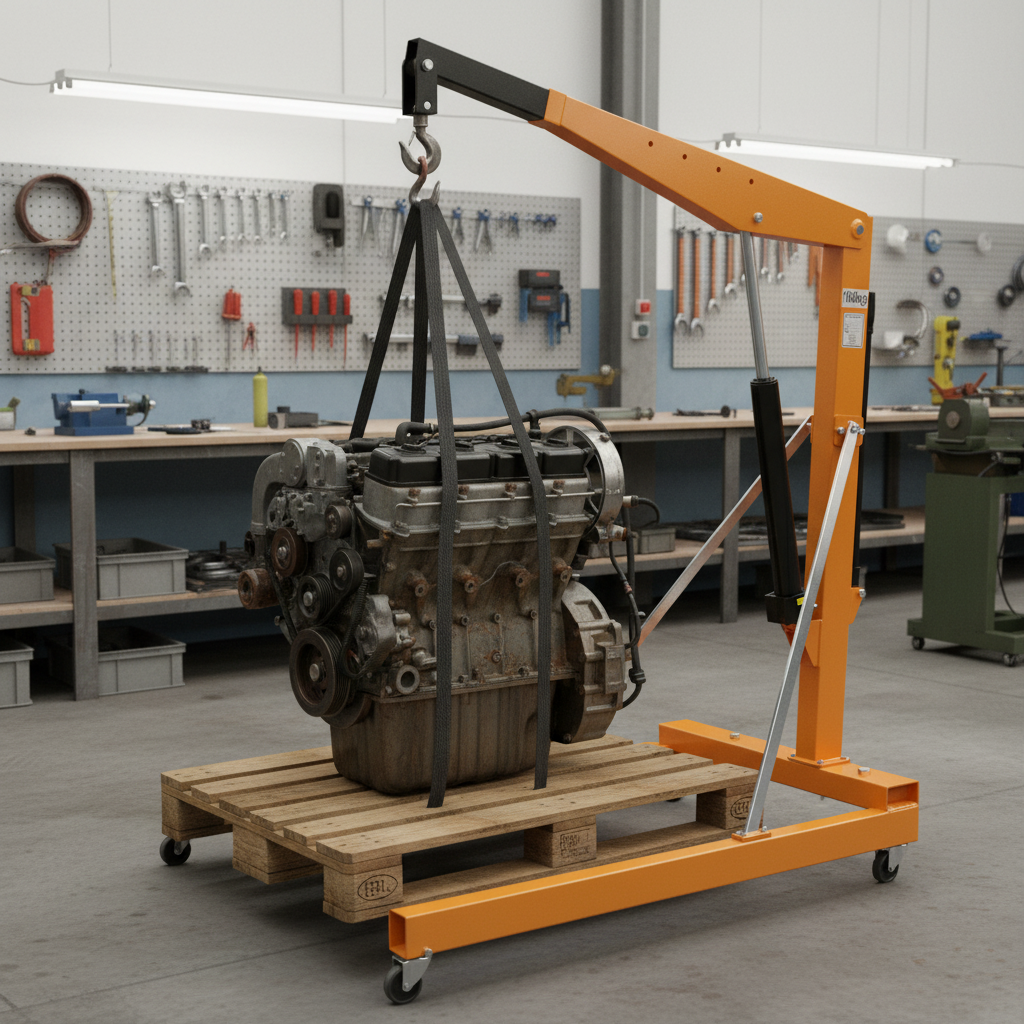

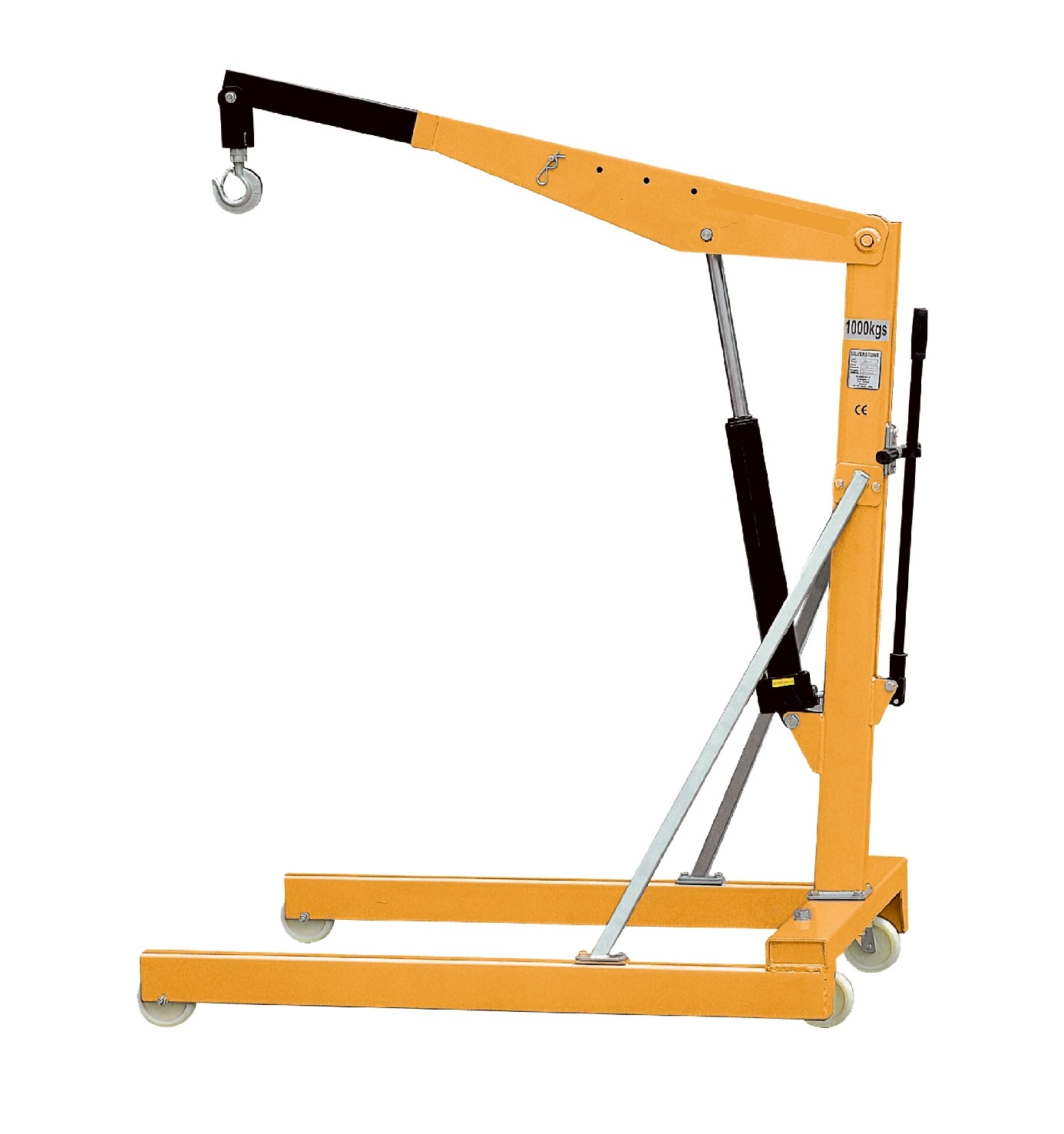

This heavy-duty workshop crane is engineered around EU-pallet dimensions to make lifting and positioning loads in workshops, warehouses, and maintenance areas safer and more efficient. With 840 mm clearance between the support legs, it fits practical pallet-related workflows, while the U-shaped support legs provide stable approach and support.

The crane features 4 reach-out positions, allowing you to adjust the boom length to match the required lifting capacity and reach. A turnable (swivel) hook supports accurate load alignment during lifting and placement. For safer operation, it includes a built-in overload protection valve, and each unit is overload tested before delivery. With 60 mm ground clearance under the support legs, it remains practical for day-to-day maneuvering across typical workshop floors.

Key benefits

• Optimized for EU-pallet handling with 840 mm space between support legs
• Heavy-duty design for professional lifting applications up to 1000 kg
• 4 reach-out positions for flexible reach and controlled lifting
• Turnable/swivel hook for better load positioning
• Overload protection valve to help prevent overloading
• Overload tested prior to delivery
• 60 mm clearance from floor to lowest part of the support leg

Technical specifications
