Wall support bracket for Skipper retractable belt

Wall support bracket for Skipper retractable belt

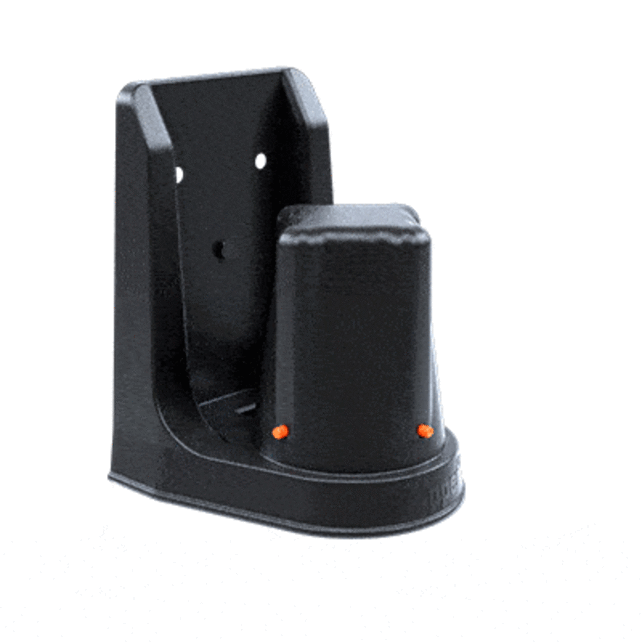

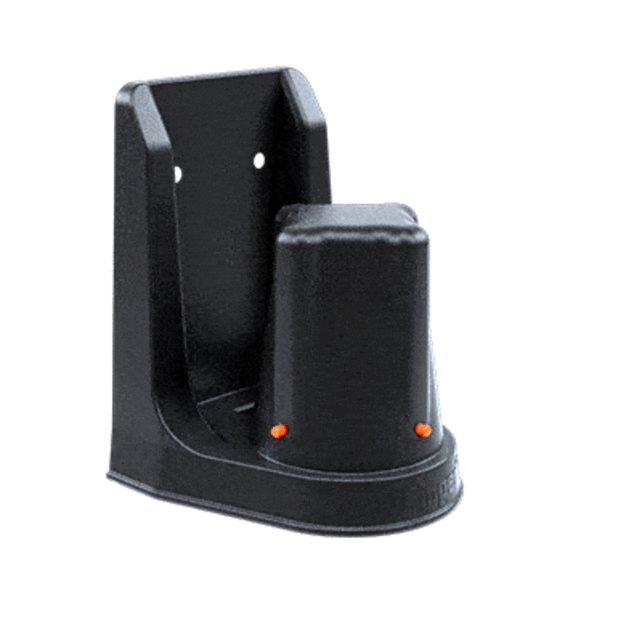

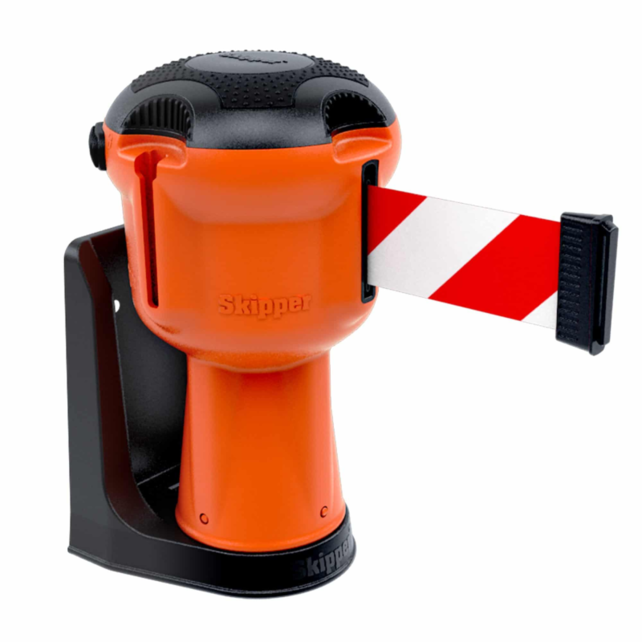

The bracket is available in two versions; a wall version which can be screwed into place for permanent/semi-permanent use, and a non-marking magnetic version which can be attached to vehicles, shelving and other metal surfaces. Once the bracket is in the desired position, the Skipper unit snap-fits onto the bracket and locks into place.

The quick release clip prevents the Skipper unit from detaching from the bracket, and is also used to quickly disconnect the unit after use. The support brackets are ideal for logistics, warehousing and facilities management.

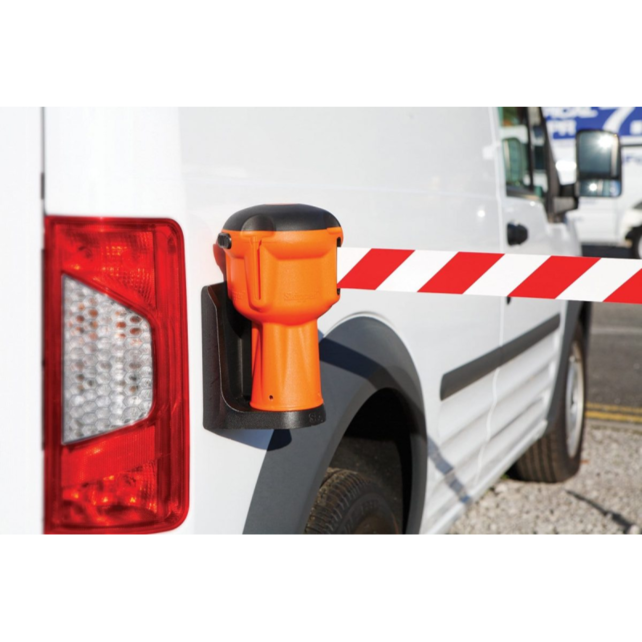

The magnetic support brackets hold the Skipper unit in place without the need for cones or posts. The non-marking magnetic version is perfect for attaching the bracket to vehicles and metal shelving. Simply place the bracket onto the desired metal surface, then click the Skipper unit into place on the bracket (use the orange locking clip to locate into the four corresponding holes on the Skipper).

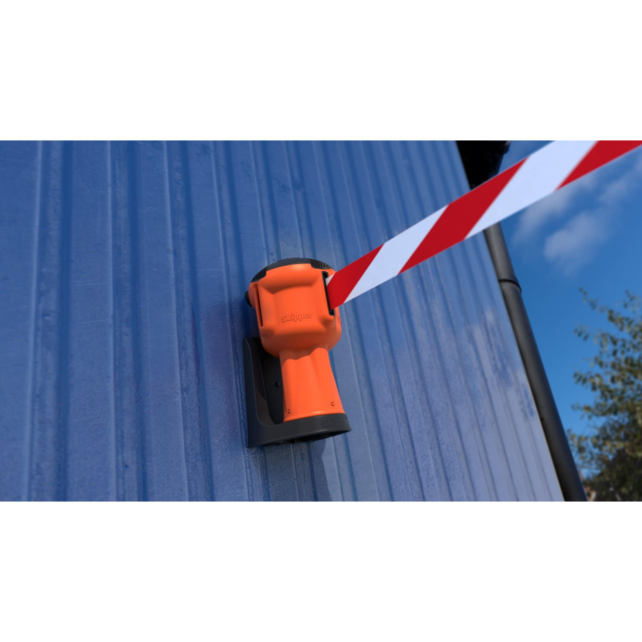

Unlike the magnetic version, the wall support brackets are intended for permanent/semi-permanent fixture. Simply screw the bracket into the desired position, then click the Skipper unit into place on the bracket (use the orange locking clip to locate into the four corresponding holes on the Skipper).

Features

Magnetic option:

• Attach a Skipper unit to a metal surface without having to use a cone or post
• Holds the bracket securely in place - no risk of falling or slipping off surface
• Soft pads to prevent scratching to surfaces
• Locking clip which corresponds to the holes on the Skipper unit. Simply squeeze the clip to quickly release the Skipper unit

The magnetic support bracket can be screwed to walls, but please bear in mind that the magnet is very strong. It is recommended to purchase a wall support bracket if this is the main intention.
If you want to end a line (rather than start a line) at a wall, you can purchase wall or magnetic receiver clips (W/RECEIVER01, M/RECEIVER01)

Wall mount support option:

• Attach a Skipper unit to a wall without having to use a cone or post
• Holds the bracket securely in place. Designed for permanent or semi-permanent fixture.
• Locking clip which corresponds to the holes on the Skipper unit. Simply squeeze the clip to quickly release the Skipper unit

We recommend using a screw and roll plug for the chosen surface. The screw head should be at least 10mm in diameter. Fasten tightly with a screwdriver until the bracket is secure. We also recommend using a washer to protect the bracket.

Specification

• Length: 12.4 mm

• Width: 13 mm

• Height: 16.8 mm

• Weight: 0.17 kg

Minimum order quantity 5 pieces - Combination is possible [email protected]
