SalesBridges Clip Handi Accessory Handi Formwork
Clip Handi Accessory Handi Formwork
€0,00 Incl. tax
SalesBridges

Clip Handi Accessory Handi Formwork

Price on request

Clip Handi Accessory Handi Formwork. Accessory for connecting panels.

In stock
6-8 weeks
Quantity
- +
Product description

Super-lightweight framed formwork HANDI


The universal super-lightweight formwork for working without crane

Handi is a lightweight framed formwork system, which has been specially designed for quick and cost-saving construction. Thanks to its lightweight panels the forming process is effectively implemented by hand. Consequently, the Handi system suits best for forming of foundations, small aboveground and underground concreting work in projects with limited use of crane or without it and with difficulties in use of heavy framed formwork systems (e.g. Varimax system). In addition, it has made a good use in small projects such as villas, private houses, living compounds etc.

We empanel the formworksystem for to your needs. Send us details about your project for a quotation at [email protected]

Need a pricelist? Email us at [email protected]

Download here the brochure of the HANDI with accessories.

Handi Formwork System

Load-bearing capacity:
• 35 kN/m² pressure of fresh concrete
• High quality film faced plywood with thickness of 15mm. Film weight 240g/m2

Cost-effective
• Universal application of the Handi system will give you an opportunity to use one system for variety of different tasks.
• Reduction of expenses due to minimization of crane usage.
• High number of use cycles means lower follow-up
expenses.
• Reduction of expenses by means of restoration and cleaning possibilities.
• Galvanized or powder-coated steel frames, for
long service life.
• High quality of concrete surface minimizes finishing work.

Areas of use of the Handi system:
• Wall formwork
• Column formwork
• Foundation formwork

Easy to use
• Having a grid of standard panel sizes provides much easier planning and forming.
• All the connectors and accessories are easily fixed
into the slots and quickly tighten, consequently forming time is efficient and maximized.
• Ergonomic of the system ensures fast and save
assembly

Safe use
• Accessories such as — lifting hooks, wall brackets, supporting struts etc. make for save and easier handling of the system.

Handi Formwork



Accessories

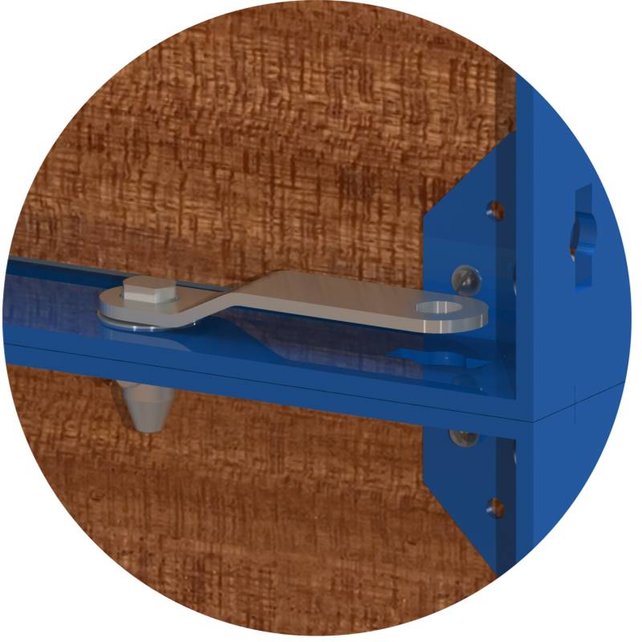

A. CLIP

Clip HANDI

For Handi panels connection use binding clip. Install the clip into the slot and turn it 90°- elements are firmly connected.

B. BINDING CLIP

For Handi panes connection binding clips can also be used.

C. 5-PIN CLAMP FOR COMPENSATION OF LINEAR EXTENSIONS

In case of compensation of linear extensions (1-7 cm) between the panels connect panels with 5-pin clamp. Installation of the 5-pin clamp is identical to the installa-tion of the clip.

We empanel the formworksystem for to your needs. Send us details about your project for a quotation at [email protected]

Product information
Brand SalesBridges
Article code SBF13710
SKU SBF13710
EAN 2007456857002
