USC professional beam clamps and hand trolleys - 3000-5000 kg
The USC series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.
Key features
- Fast installation on suitable steel profiles
- Suitable as a suspension point or for load travel, depending on model
- Safety factor and proof load according to the product specification
- Check beam size, load direction and WLL before use

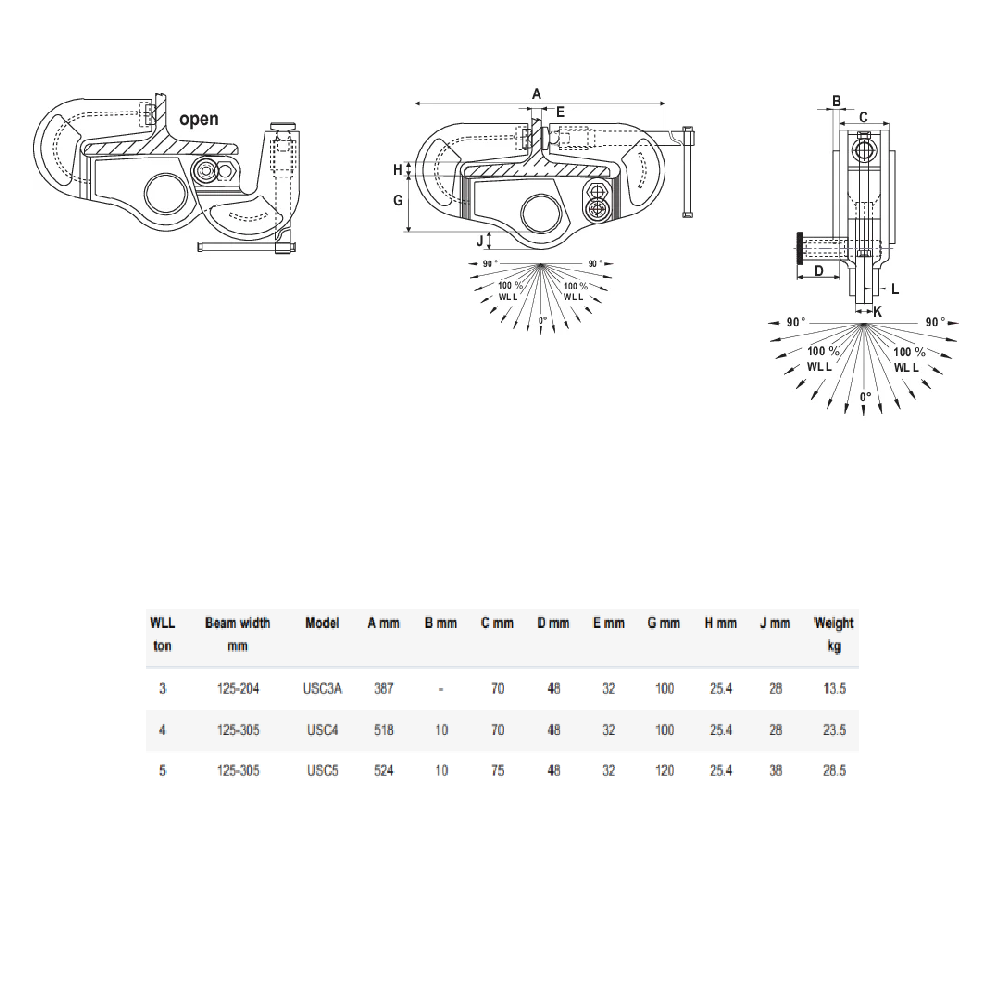

Technical specifications
| Model | Capacity | Range | Weight | Article code |
|---|---|---|---|---|
| USC3A | 3000 kg | 125-204 | 13.5 kg | SB3507007 |
| USC4 | 4000 kg | 125-305 | 23.5 kg | SB3507009 |
| USC5 | 5000 kg | 125-305 | 28.5 kg | SB3507011 |
| Norm | EN 12100-1/2, EN 13155 / EN 13157, AS 4991, ASME B30.20 (as applicable) | |||
Properties
-
Special catch: Fitted with a special catch to prevent beams from displacement.
-
Fixed suspension eyes: With fixed suspension eyes allowing loads at any angle.
Application
-
Suspension point: To be used as a semi-permanent suspension point on angle beams.
-
Marking: According to standard, CE-marked.
-
Standard: EN 13157, EN 12100.
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
