Truck wheel guides 3000mm from steel

Truck wheel guides 3000mm

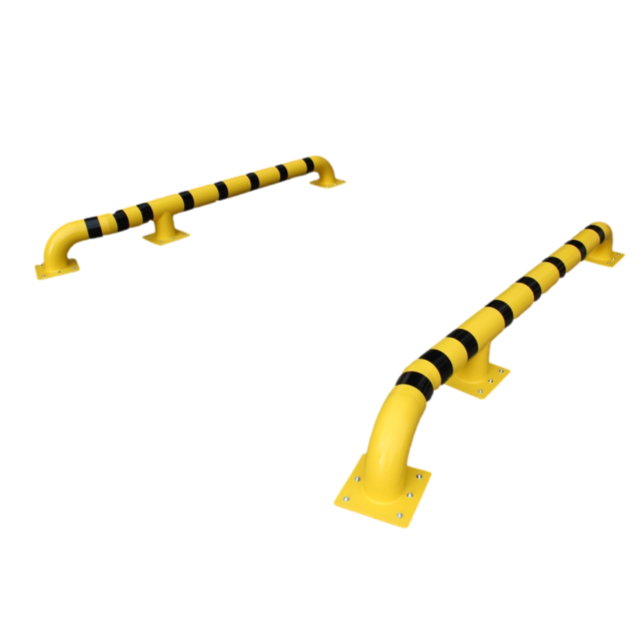

Salesbridges offers you the wheel guide for trucks. The guide is modular, galvanized steel with a length of 3,000 mm and a height of 305 mm. It is an excellent additional protection and extra safety for docks and loading ramps. Available in yellow-black and red-white. TÜV certified. Made in Europe

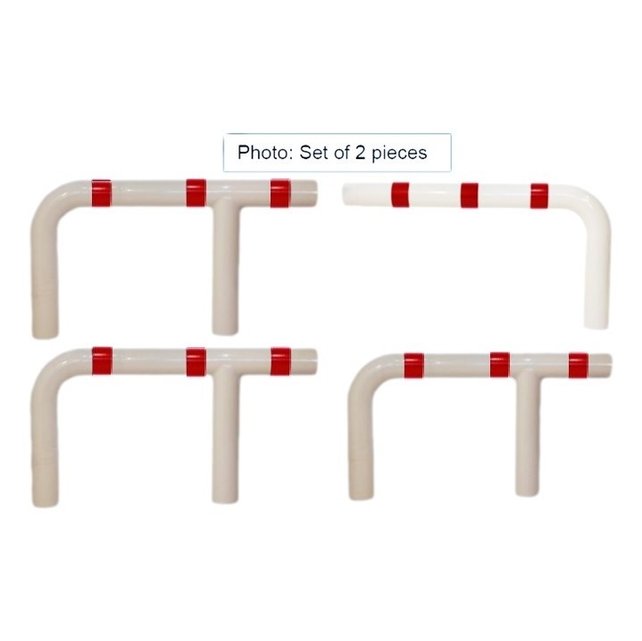

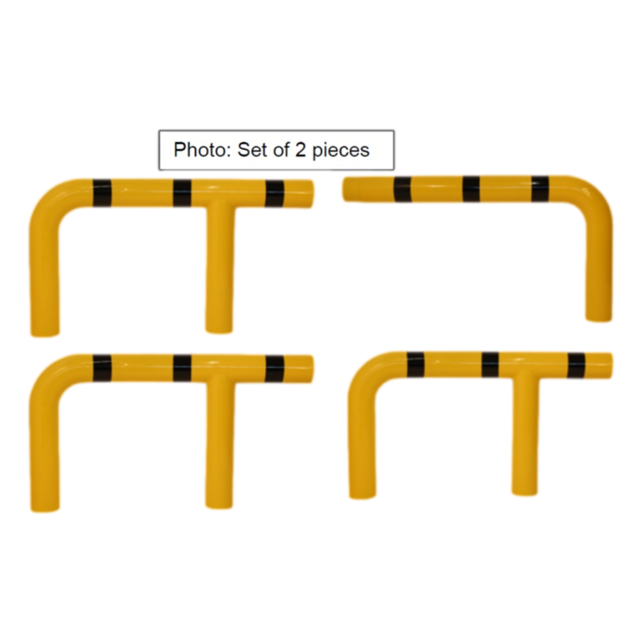

• Set Right and left side – 4 barriers

• Height 314.5 mm

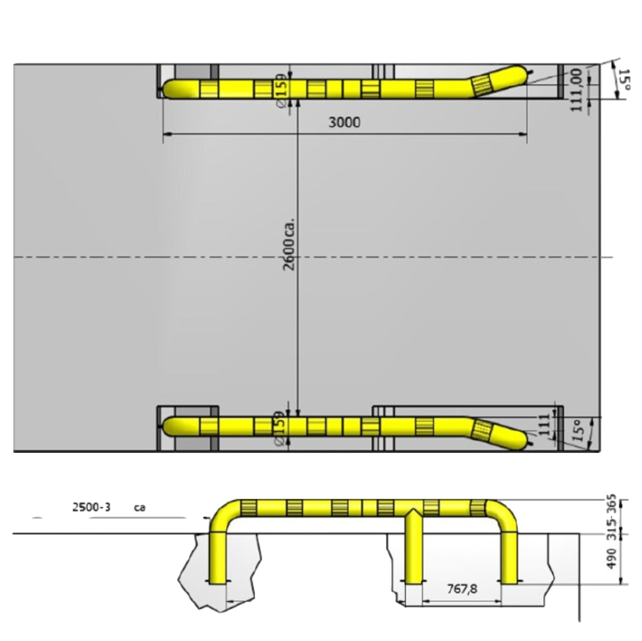

• *in concrete models SBWGYB3UG - SBWGRW3UG Height: 315 mm - 365 mm

• Width 300 mm

• Diameter 159 mm

• Length:

  Single barrier length 1500 mm

  Total length of 2 barriers 3000 mm

• Material: Galvanized and powder coated steel

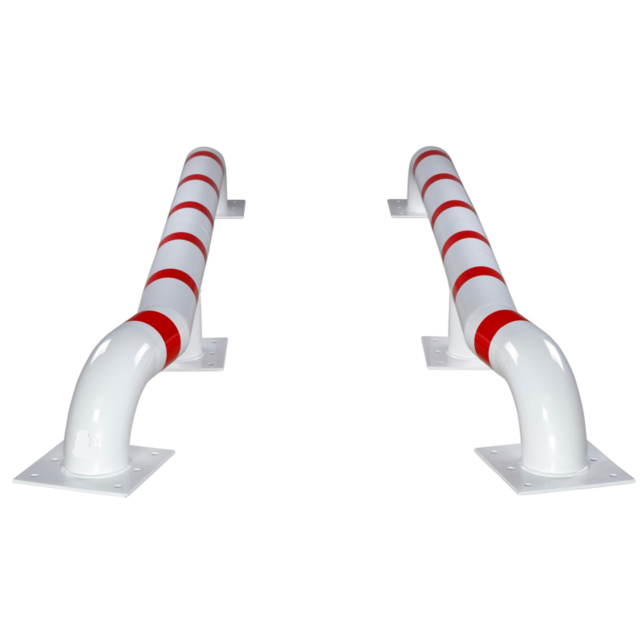

• Color Yellow with black warn marking stripes or White and Red marking stripes

• Material thickness 4.5 mm

• Use: Indoor and outdoor

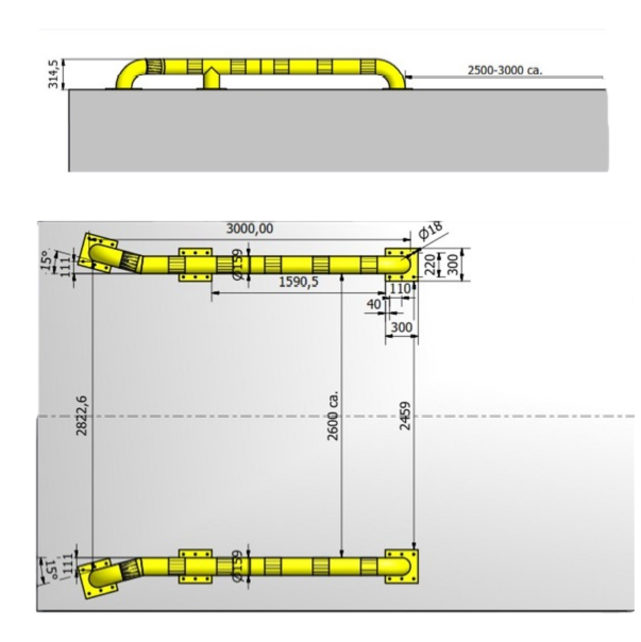

For ground mounting models (SBWGYB3G - SBWGRW3G) :

• Bottom plate 300 mm x 300 mm x 10 mm (6x)

• Boreholes 6x Ø 18 mm in each plate

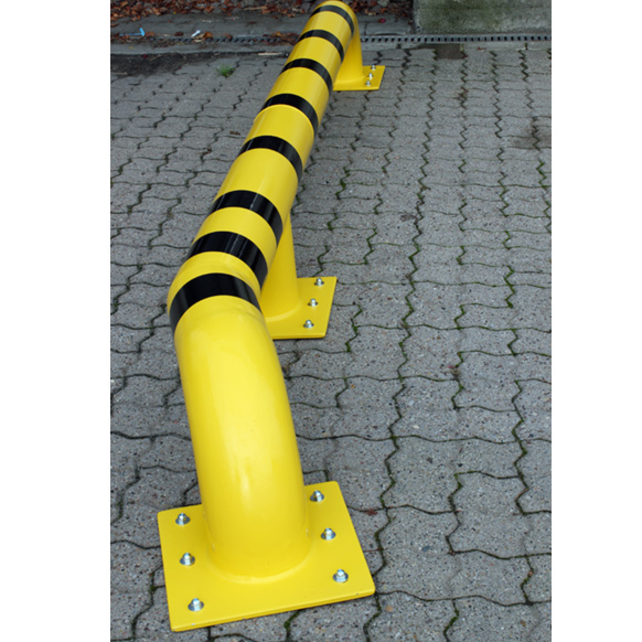

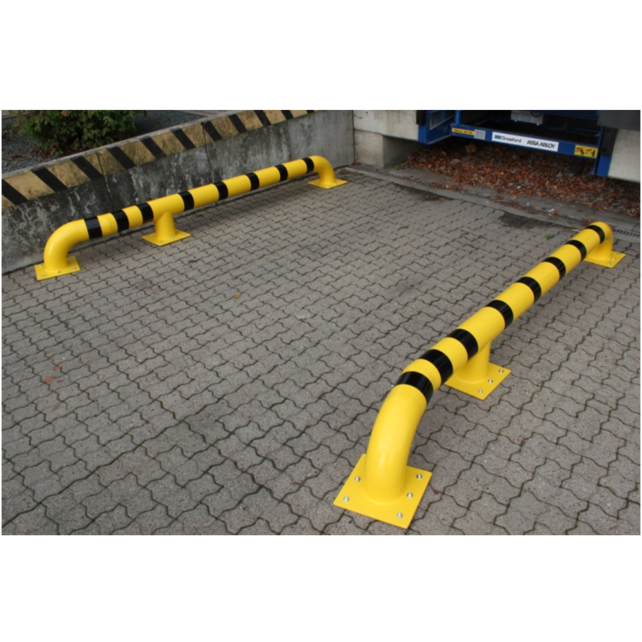

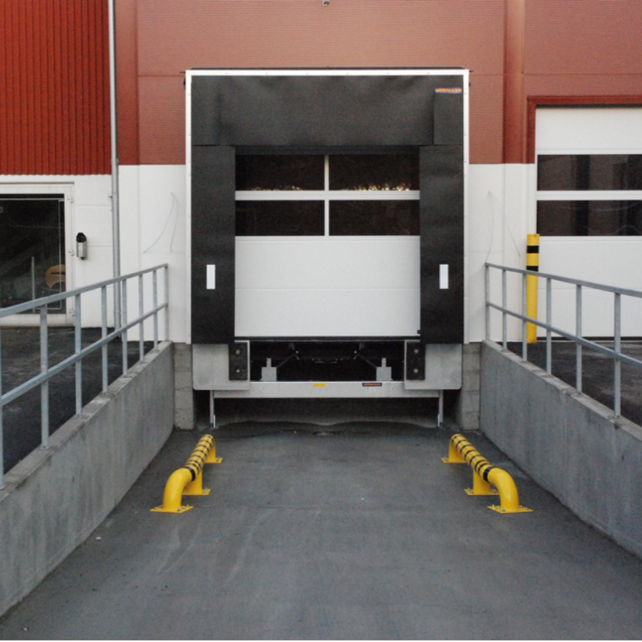

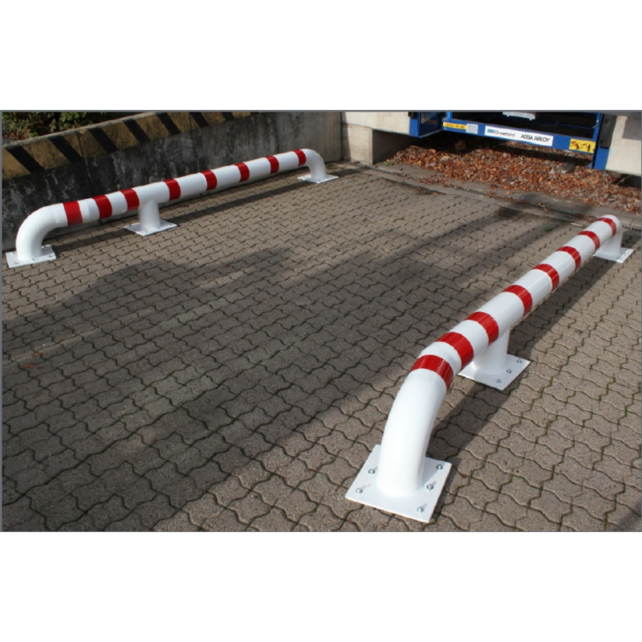

The modular truck positioning aid with yellow-black or red-white marking help the driver to safely and easily drive in and out the docking station as well as the docking process. The guide on loading ramps adds an additional protection to the surrounding buildings and dock structures.

The solid construction of the modular truck positioning is 159 mm in diameter and can be mounted with floor anchors or encased in concrete.
