Sump Tray Type ECO For Drums And IBC Containers
The sump tray type ECO is designed for safe storage of up to 4 x 200 litre drums or 2 x 1000 litre IBC containers. It is also suitable for combinations of 200 litre drums or IBCs with 60 litre drums, canisters, and small cans.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

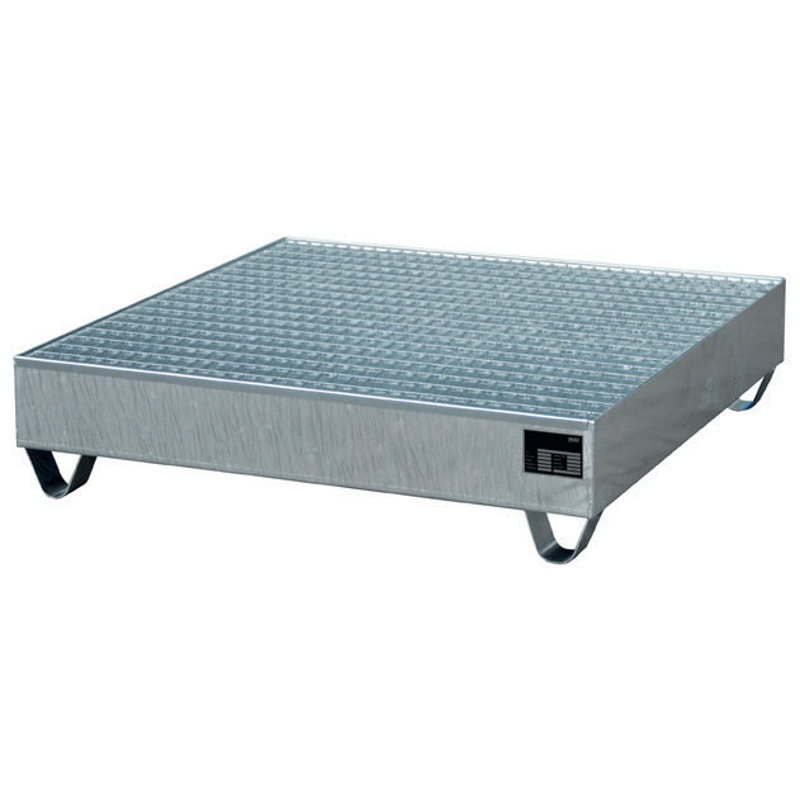

Sump Tray Type ECO For Drums And IBC Containers
Product Information
The sump tray type ECO is designed for safe storage of up to 4 x 200 litre drums or 2 x 1000 litre IBC containers. It is also suitable for combinations of 200 litre drums or IBCs with 60 litre drums, canisters, and small cans.
The ECO sump tray is made from 2 mm steel sheet, provides 100 mm ground clearance, and is equipped with a galvanized grid with a load capacity of 1000 kg/m². Every unit is tested for leakage and is suitable for flammable liquids and substances hazardous to the aquatic environment according to GHS categories.

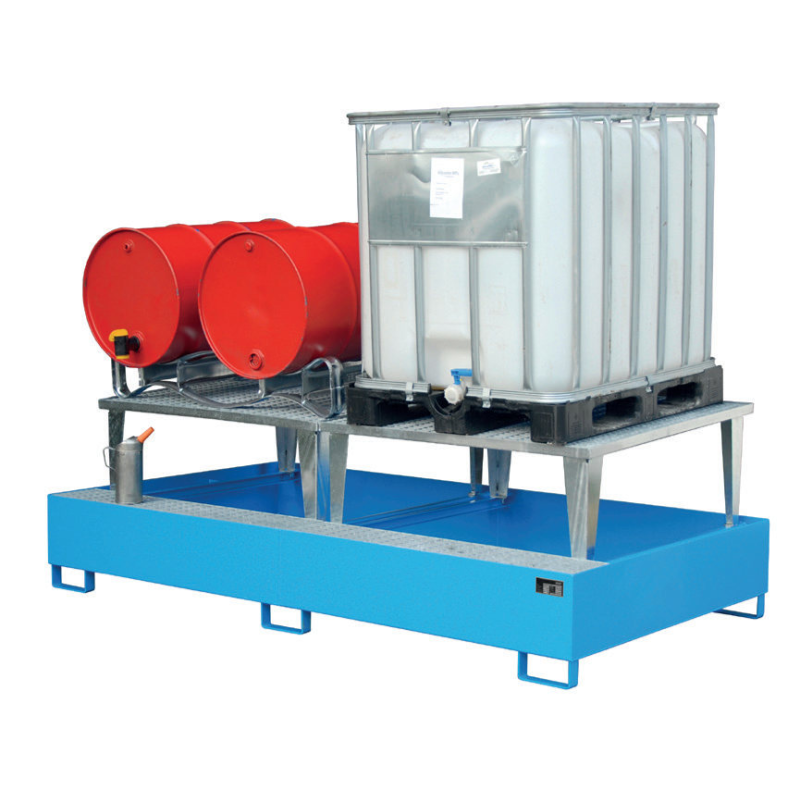

The ECO is available without raised platform, and the ECO-A version is supplied with raised platform.
Key Features
- For max. 4 x 200 litre drums
- For max. 2 x 1000 litre IBC containers
- Also suitable for combinations with 60 litre drums, canisters, and small cans
- Made from 2 mm steel sheet
- Ground clearance: 100 mm
- Galvanized grid with 1000 kg/m² load capacity
- Every unit tested for leakage
- Suitable for flammable liquids GHS categories 1–3
- Suitable for hazardous to aquatic environment GHS categories 1–4
- ECO: without raised platform
- ECO-A: with raised platform
- Available painted or hot-dip galvanized
- Finish: RAL 2000 / RAL 3000 / RAL 5012 / RAL 6011 / RAL 7005 / hot-dip galvanized
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Sump tray for drums and IBC containers |
| Type | ECO / ECO-A |
| Capacity | Max. 4 x 200 L drums / max. 2 x 1000 L IBCs |
| Construction | 2 mm steel sheet |
| Ground Clearance | 100 mm |
| Grid | Galvanized grid |
| Grid Load Capacity | 1000 kg/m² |
| Retention Capacity | 222 – 1128 litres |
| Weight Painted / Galvanized | 44 / 46 kg to 233 / 244 kg |
| ECO Version | Without raised platform |
| ECO-A Version | With raised platform |
| Suitable For | Flammable liquids and water-polluting substances |
| GHS Flammable Liquids | Categories 1–3 |
| GHS Aquatic Hazard | Categories 1–4 |
| Finish | RAL 2000 / RAL 3000 / RAL 5012 / RAL 6011 / RAL 7005 / hot-dip galvanized |
Available Variants
| Model | Max. 200 L Drums / 1000 L IBCs | Dimensions L x W x H mm | Retention Capacity | Weight Painted / Galvanized |
|---|---|---|---|---|
| ECO 1/200 | 1 / - | 800 x 800 x 455 | 222 L | 44 / 46 kg |
| ECO 2/200 | 2 / - | 1200 x 800 x 360 | 240 L | 54 / 57 kg |
| ECO 4/200 | 4 / - | 1200 x 1200 x 285 | 261 L | 68 / 71 kg |
| ECO 4/400 | 4 / - | 1200 x 1200 x 410 | 435 L | 77 / 80 kg |
| ECO 1/1000 | - / 1 | 1460 x 1460 x 620 | 1100 L | 141 / 147 kg |
| ECO 2/1000 | - / 2 | 2650 x 1300 x 435 | 1128 L | 185 / 195 kg |
| ECO-A 1/1000 | - / 1 | 1460 x 1460 x 1083 | 1100 L | 150 / 158 kg |
| ECO-A 2/1000 | - / 2 | 2650 x 1460 x 863 | 1128 L | 233 / 244 kg |
