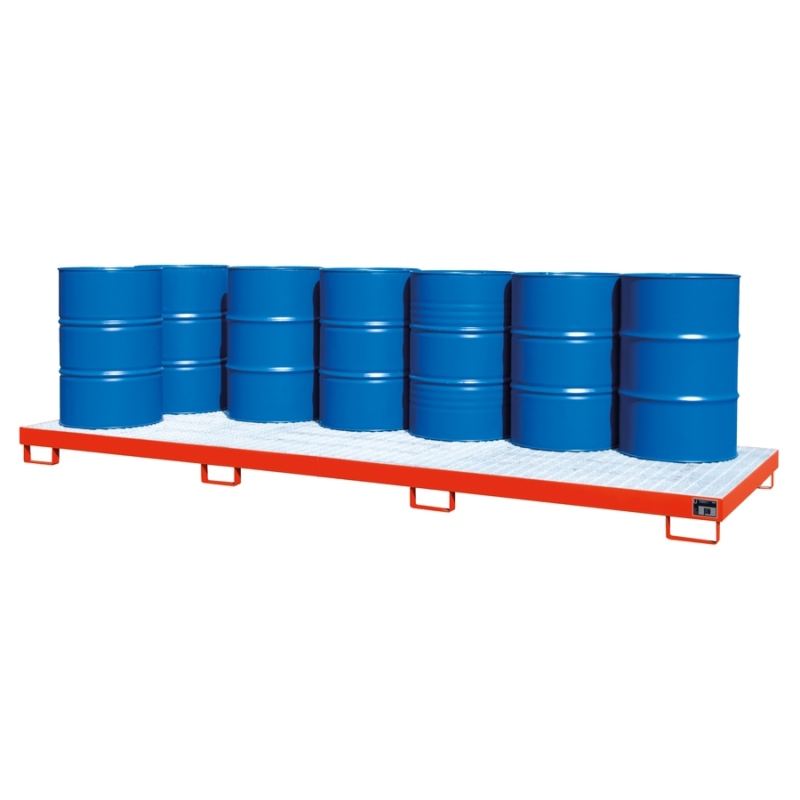

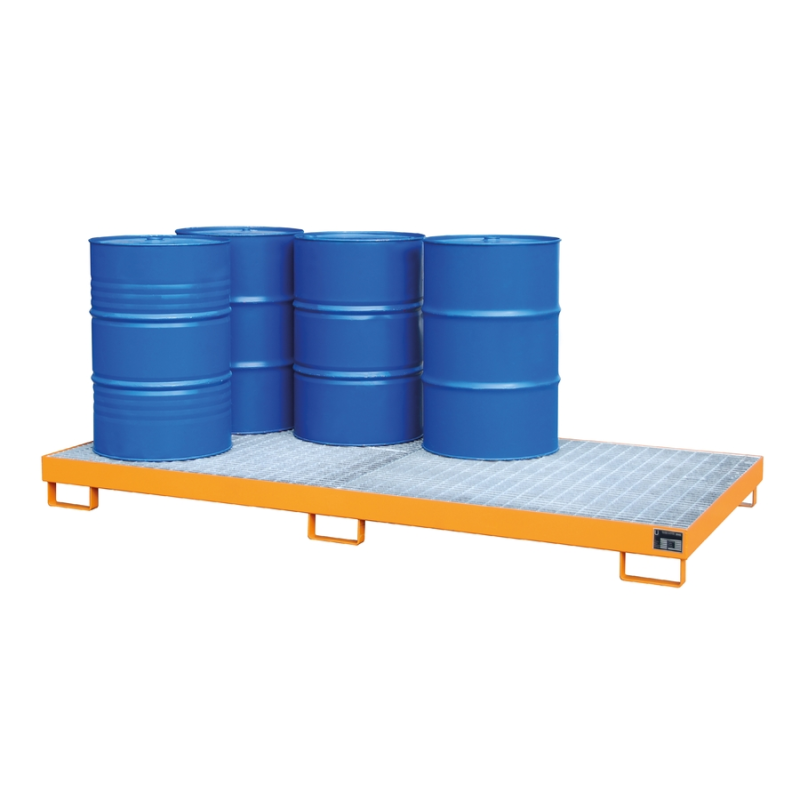

Sump Tray Type AW For 200 Litre Drums
The sump tray type AW 8–12 is designed for safe storage of large quantities of 200 litre drums, or 200 litre drums in combination with 60 litre drums, canisters, and small cans. The tray is suitable for storing flammable liquids and substances hazardous t
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Sump Tray Type AW For 200 Litre Drums
Product Information
The sump tray type AW 8–12 is designed for safe storage of large quantities of 200 litre drums, or 200 litre drums in combination with 60 litre drums, canisters, and small cans. The tray is suitable for storing flammable liquids and substances hazardous to the aquatic environment according to GHS categories.
The construction is made from 3 mm steel sheet and fitted with a galvanized grid with a load capacity of 1000 kg/m². Every unit is tested for leakage and has 100 mm ground clearance for easy handling.
Key Features
- Suitable for max. 8, 10, or 12 x 200 litre drums

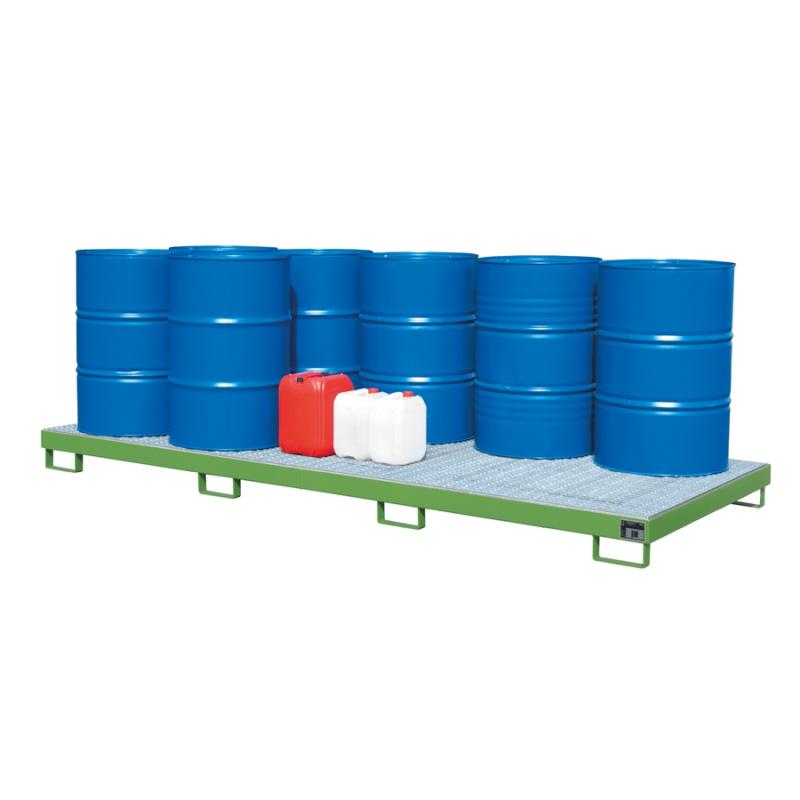

- Also suitable for combinations with 60 litre drums, canisters, and small cans
- Made from 3 mm steel sheet
- Galvanized grid with 1000 kg/m² load capacity
- Ground clearance: 100 mm
- Every unit tested for leakage
- Suitable for flammable liquids GHS categories 1–3
- Suitable for hazardous to aquatic environment GHS categories 1–4
- Available painted or hot-dip galvanized
- Finish: RAL 2000 / RAL 3000 / RAL 5012 / RAL 6011 / RAL 7005 / hot-dip galvanized
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Sump tray for drums |
| Type | AW 8–12 |
| Capacity | Max. 8–12 x 200 litre drums |
| Construction | 3 mm steel sheet |
| Ground Clearance | 100 mm |
| Grid | Galvanized grid |
| Grid Load Capacity | 1000 kg/m² |
| Retention Capacity | 340 – 468 litres |
| Weight Painted / Galvanized | 190 / 200 kg to 260 / 274 kg |
| Suitable For | Flammable liquids and water-polluting substances |
| GHS Flammable Liquids | Categories 1–3 |
| GHS Aquatic Hazard | Categories 1–4 |
| Finish | RAL 2000 / RAL 3000 / RAL 5012 / RAL 6011 / RAL 7005 / hot-dip galvanized |
Available Variants
| Model | Max. 200 L Drums | Dimensions L x W x H mm | Retention Capacity | Weight Painted / Galvanized |
|---|---|---|---|---|
| AW-8 | 8 | 2650 x 1300 x 210 | 340 L | 190 / 200 kg |
| AW-10 | 10 | 3250 x 1300 x 195 | 395 L | 226 / 238 kg |
| AW-12 | 12 | 3850 x 1300 x 200 | 468 L | 260 / 274 kg |
Accessories And Options
- Galvanized drum supports type FA
- Galvanized clip-on rotating supports type RA for rotating drums
- Galvanized can shelves type GR
Delivery
Delivery in the Netherlands and Belgium and shipping across Europe via SALESBRIDGES.
Request A Quote Or More Information
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | Salesbridges |
| Article code | SBSTAW8 |
| SKU | SBSTAW8 |
