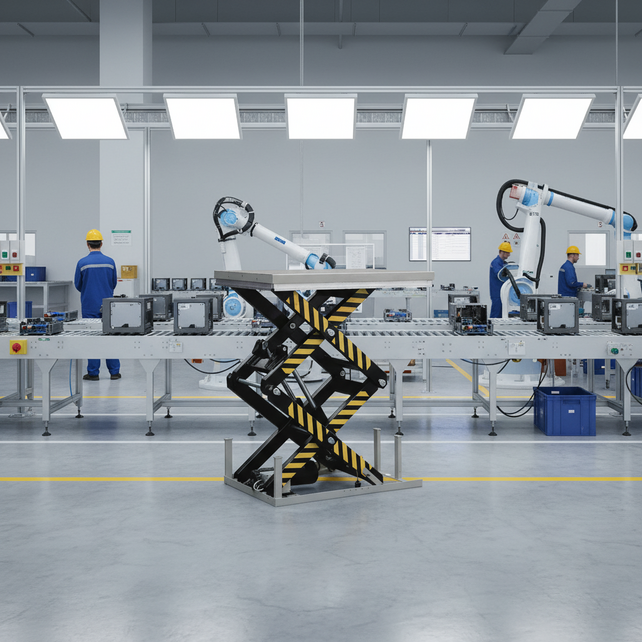

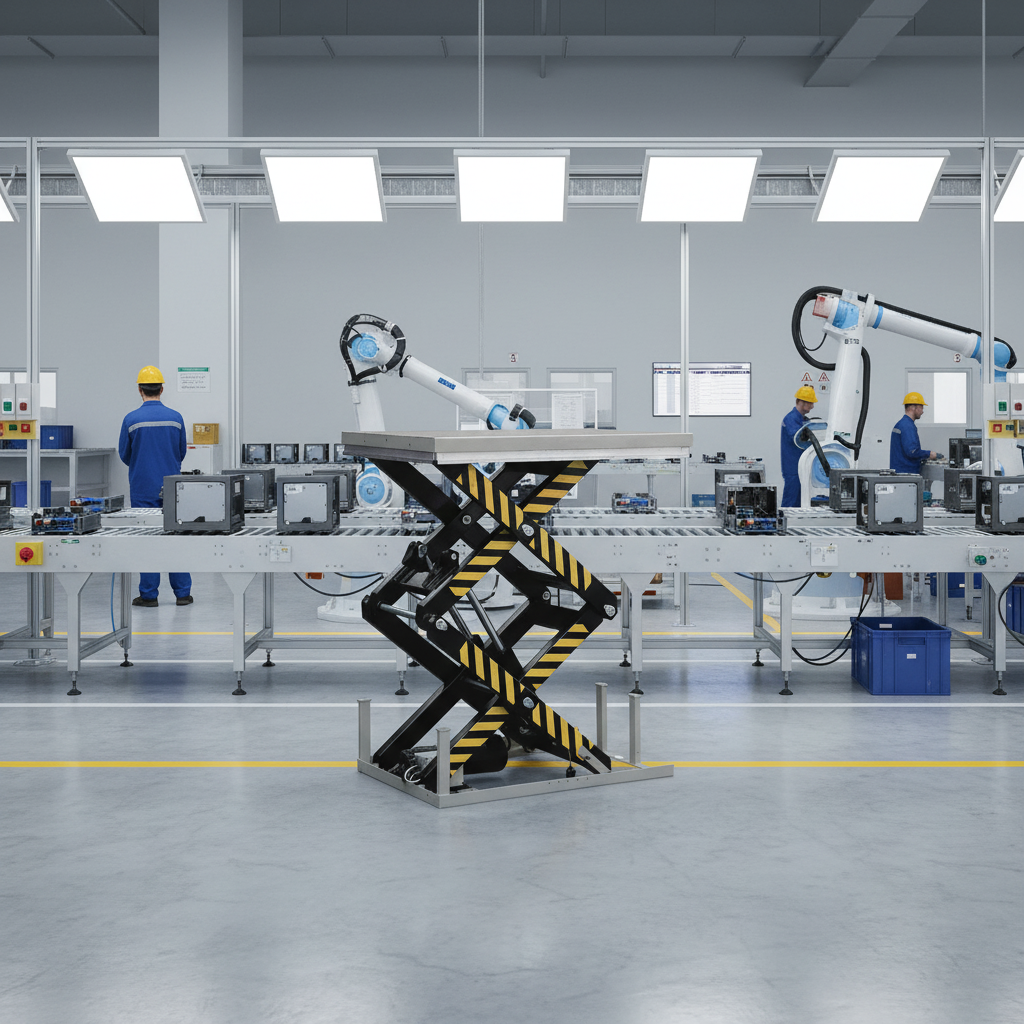

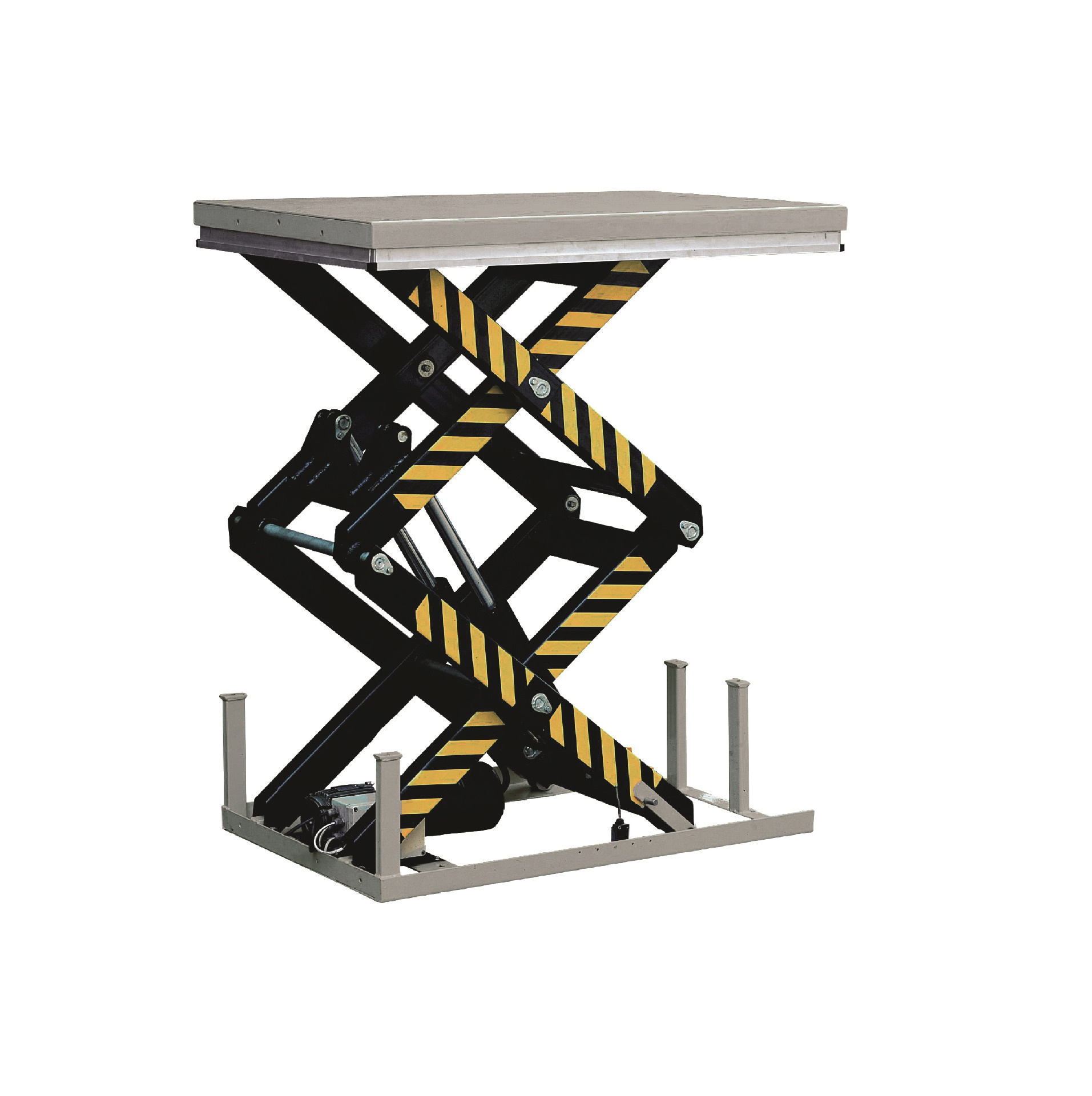

Stationary lifting table 1000kg with double scissors 130x82cm
The Salesbridges lifting table SBHD1000 supports you when lifting heavy to extra heavy pallets or half-timbered boxes in the warehouse or on production lines. With the double scissors, it achieves a greater lifting height than other models.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Salesbridges HD1000 Lift Table 1300x820mm, 1000kg – For High Lifts and Long Goods
The Salesbridges HD1000 lift table, featuring a 1300x820mm platform and 1000kg capacity, is the perfect solution for safe and efficient lifting of heavy and long goods in industrial settings. The double scissor design and lifting height up to 1780 mm make it ideal for manufacturing, logistics, and warehouse applications. The table must be bolted to the floor for maximum stability.
Maintenance-free pivot bushings, large safety clearance between the scissors, and a safety valve for hose burst protection ensure reliable and safe operation. Additional features include a lift cylinder with internal drainage, low-noise power pack with overload valve, and a movable limit switch. The lift table complies with EN1570-1 and comes with a 1-year factory warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Double scissor |
| Capacity | 1000 kg |
| Platform (LxW) | 1300 x 820 mm |
| Base frame (LxW) | 1250 x 680 mm |
| Lifting height | 305 – 1780 mm |
| Stroke length | 1475 mm |
| Weight | 210 kg |
| Lifting time | 20–25 seconds |
| Lift motor | 380V / 50Hz, 1.5kW |
| Power supply | 3-phase, 380V/16A |
| Pivot bushings | Maintenance-free |
| Safety | Safety valve, hose burst protection, large clearance, limit switch |
| Standard | EN1570-1 |
| Installation | Floor fixing with bolts |
| Warranty | 1-year factory warranty |
Functions

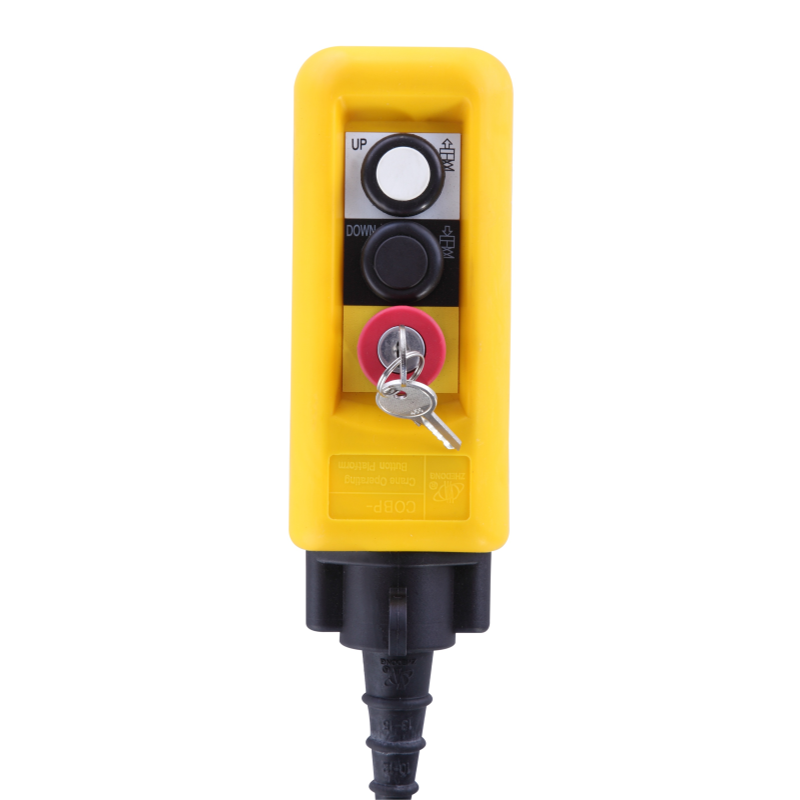

With the external control panel and a 2,800 mm supply line, the Salesbridges lift table SBHD1000 can also be operated comfortably from a safe distance. The protective frame and the high-quality powder coating protect against unwanted damage or scratches. Sturdy scissor supports and safety distances between the lifting scissors are also part of the standard equipment, as are mechanical protection during maintenance work and the maintenance-friendly design.
Operating voltage 380V
This model is optionally operated with an operating voltage of 380V. The lifting motor lifts with 2.2 kW. In addition, all models are equipped with an emergency stop and a key switch as standard.
Contact Sales for a Quote:
[email protected] | +31 6 52883848
| Brand | Salesbridges |
| Article code | SBHD1000 |
| SKU | SBHD1000 |
| EAN | 9504251614265 |
