Stationary Lifting Table HW501 - 500 kg Capacity - 900 × 700 mm
Compact stationary lift table SBHTHW501 with 500 kg capacity and 900 × 700 mm platform. Low-noise hydraulic system, maintenance-free design and EN1570-1 compliance. Ideal for ergonomic lifting in workshops, warehouses and assembly areas.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

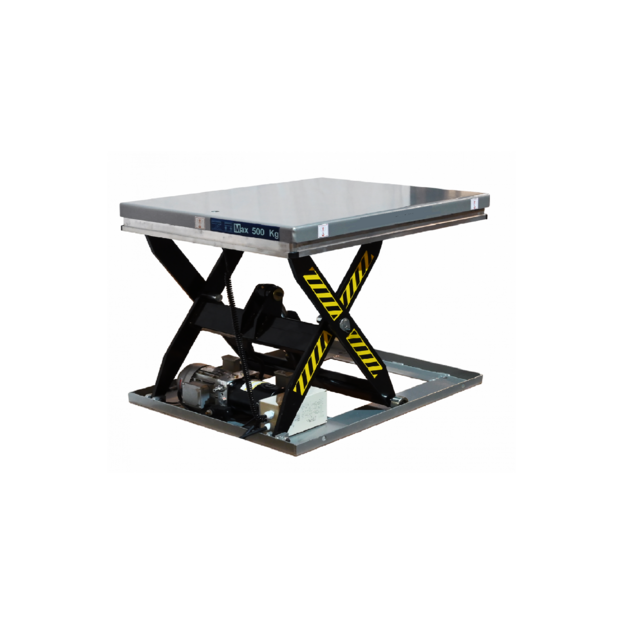

Stationary scissor lift table – SBHTHW501
This stationary lift table positions goods at a fixed workstation. Its lifting movement helps match material height to assembly, processing and transfer tasks.
The stated load capacity is 500 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 500 kg.
- Platform (L × W): 900 × 700 mm.
- Lift height min.–max.: 160 – 760 mm.
Technical specifications
| SKU | SBHTHW501 |
|---|---|
| Model | SBHTHW501 |
| Configuration | Stationary scissor lift table |
| Maximum load capacity | 500 kg |
| Platform (L × W) | 900 × 700 mm |
| Base frame / plate (L × W) | 885 × 700 mm |
| Lift height min.–max. | 160 – 760 mm |
| Lift stroke | 600 mm |
| Time to maximum lift height | 12 seconds |
| Lowering time | 10 seconds |
| Lifting motor | 0.37 kW |
| Power supply | 3-phase, 380V / 16A |
| Net weight | 110 kg |
| Safety features | Hose-burst valve, overload valve, safety clearance |
| Standard stated in product specification | EN1570-1 |
| Noise level stated in product data | 60 dB |
Applications
- Material supply in production and assembly
- Positioning at packing and processing stations
- Transferring goods between suitable working heights
Configuration and use
Match installation, floor fixing, platform size and lift height to the location. Check the power supply and load distribution. Confirm custom configurations against the quotation and drawing. Use as a personnel lift is not included in this description.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBHTHW501 |
| SKU | SBHTHW501 |
| EAN | 9508371491867 |
