RBH Concrete Hooks for Precast Concrete Plates - 1.3 to 20 t

Rema

RBH Concrete Hooks for Precast Concrete Plates - 1.3 to 20 t

EUR 35,00 Excl. tax

EUR 42,35 Incl. tax

RBH Concrete Hooks for Precast Concrete Plates - 1.3 to 20 t. The REMA RBH concrete hook is designed for safely lifting precast concrete plates. Five capacities allow selection according to the required working load, dimensions and hook weight.

In stock

3-4 days

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

RBH Concrete Hooks for Precast Concrete Plates - 1.3 to 20 t

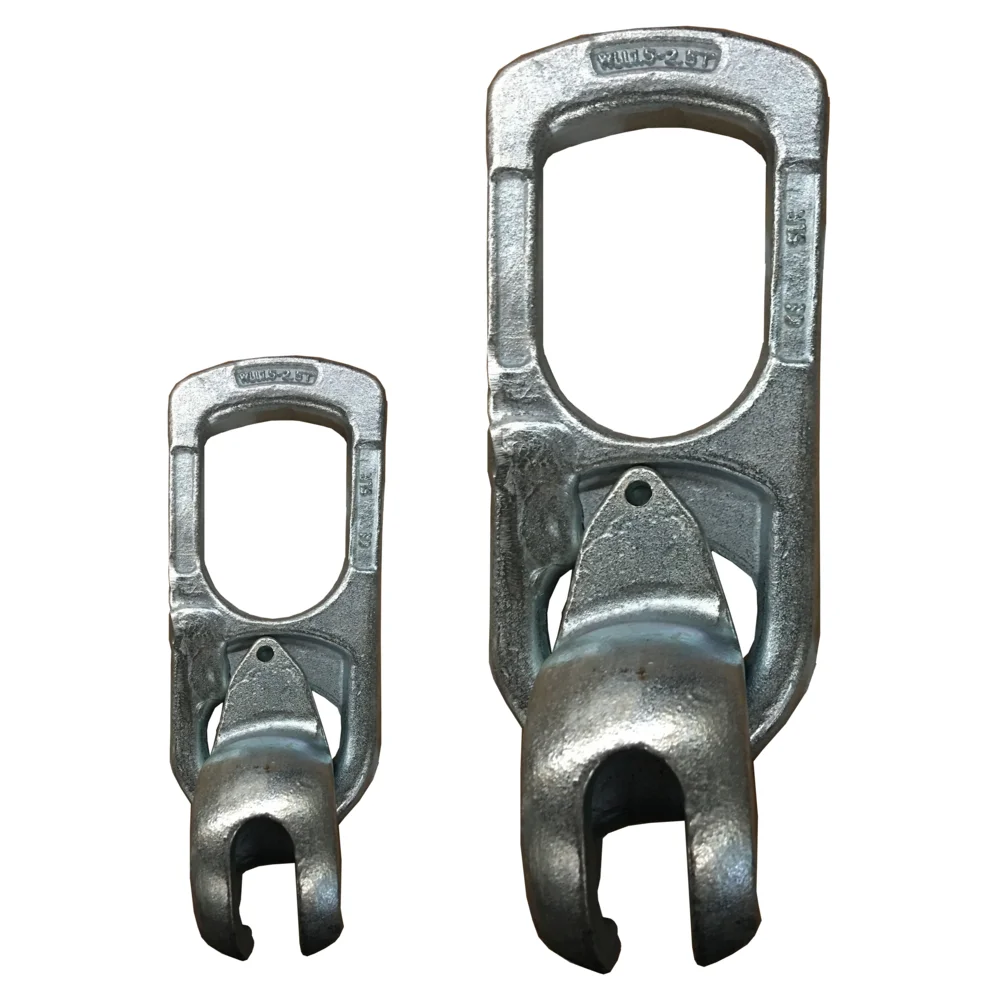

The REMA RBH concrete hook is designed for safely lifting precast concrete plates. Five capacities allow selection according to the required working load, dimensions and hook weight.

Key features

For precast concrete plates
Five variants with working load limits from 1,300 to 20,000 kg
Robust construction for professional lifting operations
Always select a capacity appropriate for the load
Complies with EN 1677

Technical specifications

Model	Working load limit	Breaking force	Weight	Dimensions according to drawing
RBH-1.3	1300 kg	51 kN	0.89 kg	B 34, D 42/70.5, C 80.4, E 45, F 73, G 20.5, H 157, K 12.5, L 186, M 11.5 mm
RBH-2.5	2500 kg	98 kN	1.3 kg	B 42, D 49/85, C 99, E 57, F 88, G 27, H 190, K 14, L 227, M 16 mm
RBH-5	5000 kg	196 kN	3.24 kg	B 55, D 70/88, C 133, E 69, F 110, G 35, H 233, K 18, L 282, M 22 mm
RBH-10	10000 kg	392 kN	10.01 kg	B 74, D 92/116, C 176, E 83, F 161, G 51, H 336.5, K 27, L 391, M 30 mm
RBH-20	20000 kg	784 kN	20.37 kg	B 110, D 114.5/133.5, C 228, E 107.5, F 182, G 77, H 437, K 31, L 497, M 42 mm
Standard	EN 1677

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For availability, technical advice or an RFQ, contact [email protected] or +31 6 52883848.
