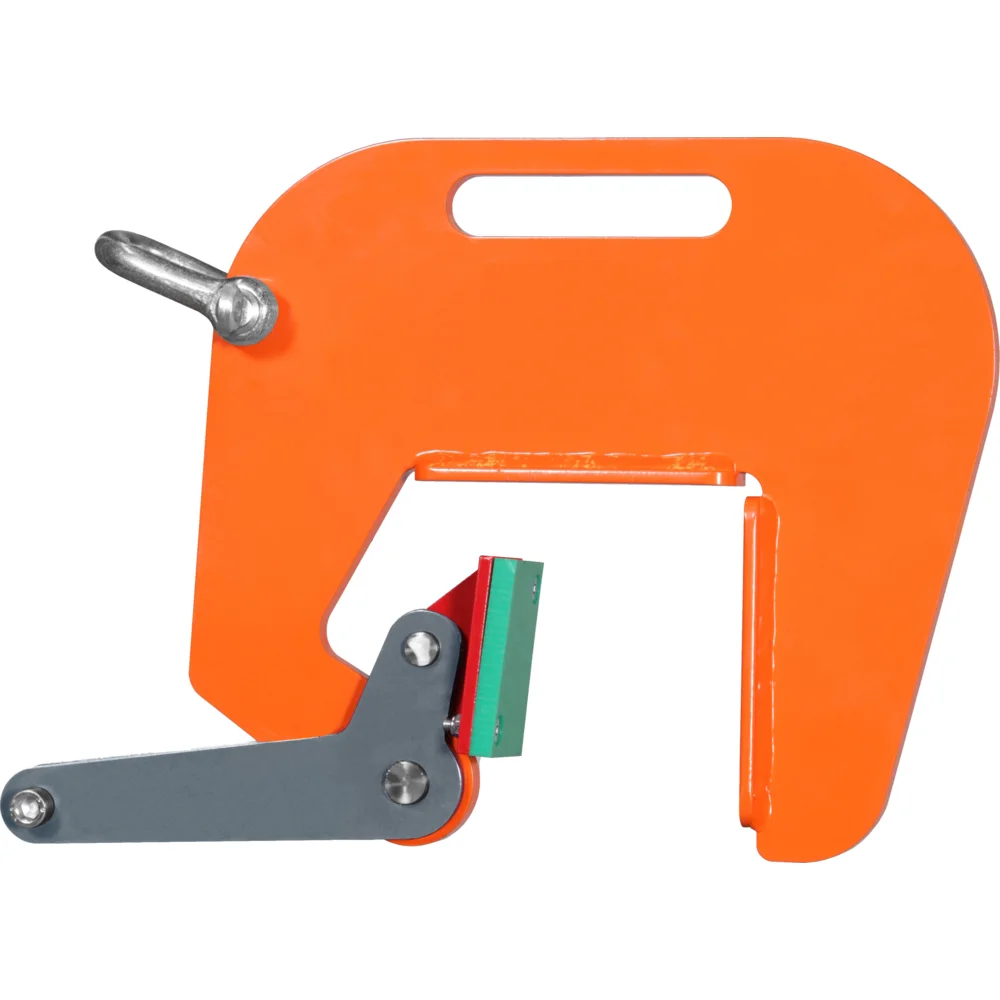

CBA Vertical Concrete Pipe Lifting Clamps - Set of 3

Create your own review

EUR 545,00 Excl. tax

EUR 659,45 Incl. tax

Excl. Shipping costs

CBA Vertical Concrete Pipe Lifting Clamps - Set of 3. REMA CBA lifting clamps are specifically developed for safely lifting concrete pipes vertically. They must always be used as a set of three clamps, evenly positioned around the pipe.

In stock

3-4 days

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

CBA Vertical Concrete Pipe Lifting Clamps - Set of 3

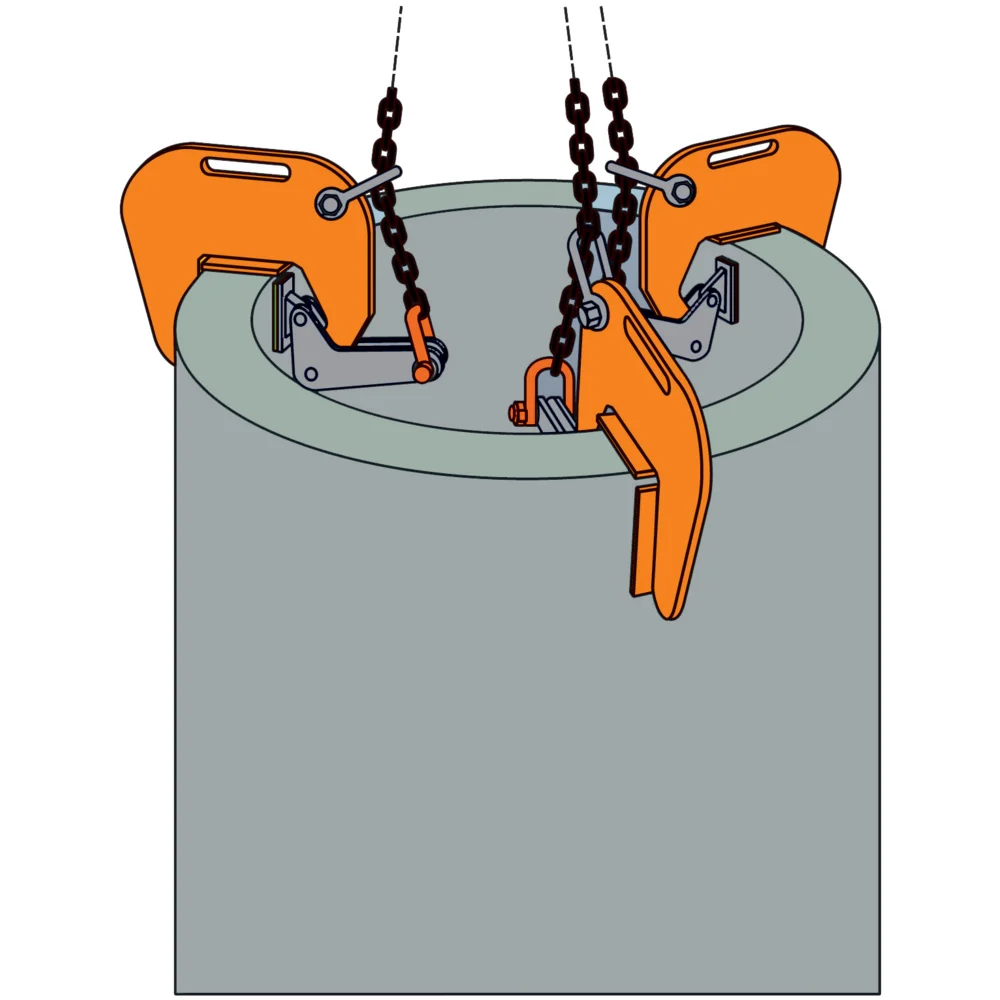

REMA CBA lifting clamps are specifically developed for safely lifting concrete pipes vertically. They must always be used as a set of three clamps, evenly positioned around the pipe.

Key features

Always use as a complete set of three clamps
Jaw opening 60-120 mm
Total WLL per set: 1,500 or 3,000 kg
Chains and crane eyes available by special order
Optional three-leg lifting chain: product ID 2629040

Technical specifications

Model	Working load limit	Jaw opening	Weight	Dimensions according to drawing
CBA-1.5	1500 kg per set / 500 kg per clamp	60-120 mm	30 kg per set / 10 kg per clamp	A 320, B 170, C 110, D 160, E 12, F 12, G 40, H 60, R 60-120 mm
CBA-3.0	3000 kg per set / 1000 kg per clamp	60-120 mm	30 kg per set / 10 kg per clamp	A 320, B 170, C 110, D 160, E 12, F 12, G 40, H 60, R 60-120 mm
Standard	EN 12100-1/2, EN 13155, AS 4991, ASME B30.20
Important operating requirement	Use only with three clamps

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For availability, technical advice or an RFQ, contact [email protected] or +31 6 52883848.
