Product description
Push-pull Props Jacks push pull
1.80 to 3.00 m
Type L2 - ASTM D 2247-87

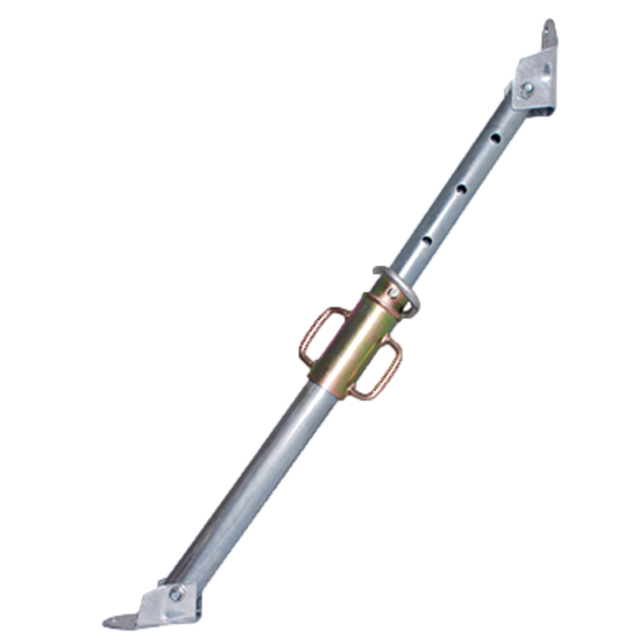

The push push-pull diagonal props consist of two telescopically slidable pipes.
The displacement thereof can be adjusted by means of a threaded ring nut and a pin inserted into the holes of the inner pipe.
This structure enables it to perform two actions, the classic pushing action (like normal props do) and the pulling action.
These elements are crucial for temporary and safe stabilisation of structures during the casting step, whether formworks, wooden panels, or prefabricated elements of various types.
Our push-pull props come in three models.
Type L push-pull props: adjustment carried out using a double handle sleeve
Type N push-pull props: adjustment carried out using a single ring nut.
Type H push-pull props: adjustment carried out using two ring nuts.

Ext.
PTS 3000 L2
PTS 3500 L2
PTS 4000 L2
PTS 4500 L2
PTS 5000 L2
Compr.
Traction
Compr.
Traction
Compr.
Traction
Compr.
Traction
Compr.
Traction
(metri)
Ph (kN)
Pa (kN)
Pz (kN)
Ph (kN)
Pa (kN)
Pz (kN)
Ph (kN)
Pa (kN)
Pz (kN)
Ph (kN)
Pa (kN)
Pz (kN)
Ph (kN)
Pa (kN)
Pz (kN)
5,00

2.42
4.84
36.70
4,90

2.55
5.11
36.70
4,80

2.70
5.41
36.70
4,70

2.87
5.73
36.70
4,60

3.05
6.09
36.70
4,50

2.90
5.80
36.70
3.24
6.49
36.70
4,40

3.08
6.15
36.70
3.46
6.93
36.70
4,30

3.27
6.55
36.70
3.71
7.41
36.70
4,20

3.49
6.98
36.70
3.98
7.96
36.70
4,10

3.73
7.45
36.70
4.29
8.58
36.70
4,00

3.65
7.29
36.70
3.99
7.98
36.70
4.64
9.28
36.70
3,90

3.89
7.79
36.70
4.28
8.57
36.70
5.04
10.09
36.70
3,80

4.17
8.33
36.70
4.61
9.23
36.70
5.51
11.02
36.70
3,70

4.47
8.94
36.70
4.99
9.97
36.70
6.06
12.12
36.70
3,60

4.81
9.62
36.70
5.41
10.83
36.70
6.71
13.42
36.70
3,50

4.70
9.39
36.70
5.19
10.38
36.70
5.91
11.81
36.70
7.47
14.95
36.70
3,40

5.06
10.13
36.70
5.62
11.24
36.70
6.48
12.96
36.70
8.34
16.69
36.70
3,30

5.47
10.95
36.70
6.11
12.22
36.70
7.16
14.32
36.70
9.21
18.43
36.70
3,20

5.94
11.88
36.70
6.67
13.34
36.70
7.99
15.98
36.70
9.89
19.77
36.70
3,10

6.47
12.93
36.70
7.32
14.65
36.70
9.01
18.02
36.70
10.33
20.65
36.70
3,00
6.51
13.03
36.70
7.07
14.14
36.70
8.10
16.20
36.70
10.30
20.60
36.70
10.65
21.31
36.70
2,90
7.12
14.25
36.70
7.76
15.53
36.70
9.03
18.07
36.70
11.94
23.88
36.70
10.96
21.91
36.70
2,80
7.83
15.65
36.70
8.57
17.15
36.70
10.19
20.39
36.70
13.66
27.33
36.70

2,70
8.64
17.28
36.70
9.53
19.07
36.70
11.69
23.37
36.70
14.65
29.30
36.70

2,60
9.59
19.19
36.70
10.69
21.38
36.70
13.71
27.42
36.70
15.25
30.50
36.70

2,50
10.73
21.45
36.70
12.12
24.25
36.70
16.64
33.29
36.70

2,40
12.09
24.19
36.70
13.96
27.92
36.70
18.35
36.70
36.70

2,30
13.79
27.58
36.70
16.42
32.84
36.70

2,20
15.95
31.90
36.70
18.35
36.70
36.70

2,10
18.35
36.70
36.70
18.35
36.70
36.70

2,00
18.35
36.70
36.70

1,90
18.35
36.70
36.70

1,80
18.35
36.70
36.70


Type L2 push-pull prop: with greater thicknesses, it comes both in the hot dip coated version as well as the galvanised version (hot or cold dip galvanisation).
Features of the Type L2 push-pull prop:
Pipe protection: hot-dip galvanization in compliance with the UNI EN ISO 1461 standard, with a guaranteed minimum thickness of 55 microns;
Inner pipe diameter 48 x 3.00 mm;
Outer pipe diameter 57 x 2.5 mm;

Comparative table of push-pull props

PTS 3000 L1
PTS 3500 L1
PTS 4000 L1
PTS 4500 L1
PTS 5000 L1
PTS 3000 L2
PTS 3500 L2
PTS 4000 L2
PTS 4500 L2
PTS 5000 L2
PTS 3000 N
PTS 3500 N
PTS 4000 N
PTS 4500 N
PTS 5000 N
PTS 3000 H1
PTS 3500 H1
PTS 4000 H1
PTS 4500 H1
PTS 5000 H1
PTS 3000 H2
PTS 4000 H2
PTS 5400 H2
MAX EXT. (m)
3,05
3,55
4,05
4,55
5,05
3,05
3,55
4,05
4,55
5,05
3,05
3,45
4,05
4,55
5,05
3,05
3,45
4,05
4,55
5,05
3,05
4,05
5,45
MIN EXTENSION (m)
1,75
2,05
2,35
2,55
2,85
1,75
2,05
2,35
2,55
2,85
1,80
2,20
2,40
2,60
2,90
1,80
2,20
2,40
2,60
2,90
1,75
2,30
3,10
Ø INNER TUBE (mm)
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
48,30
63,50
63,50
63,50
INNER TUBE THICKNESS (mm)
1,80
1,80
1,80
1,80
1,80
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
3,00
2,60
2,60
2,60
Ø OUTER TUBE (mm)
56,00
56,00
56,00
56,00
56,00
57,00
57,00
57,00
57,00
57,00
60,30
60,30
60,30
60,30
60,30
60,30
60,30
60,30
60,30
60,30
76,10
76,10
76,10
OUTER TUBE THICKNESS (mm)
1,65
1,65
1,65
1,65
1,65
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,50
2,60
2,60
2,60
PLATES
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
WEIGHT (Kg)
9,40
10,50
11,50
12,60
13,80
13,40
15,10
16,60
18,30
20,20
15,95
18,30
20,90
22,80
25,15
16,50
18,95
21,55
23,45
25,80
18,35
22,55
30,30
