Salesbridges Props 2.34 to 4.00 meters Jacks Typ B Light DIN EN 1065
Props 2.34 to 4.00 meters Jacks Typ B Light DIN EN 1065
€0,00 Incl. tax
Salesbridges

Props 2.34 to 4.00 meters Jacks Typ B Light DIN EN 1065

Price on request

Props 2.34 to 4.00 meters Jacks Typ B Light DIN EN 1065

In stock
1-2 weeks
Quantity
- +
Product description

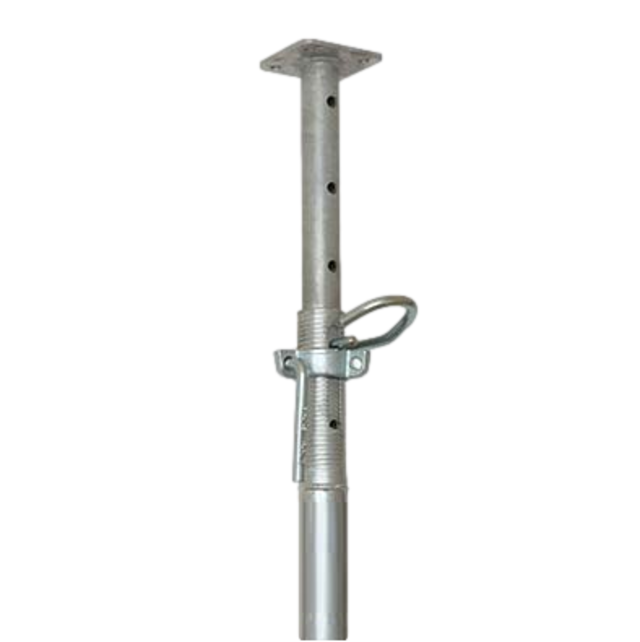

Props 2.34 to 4.00 meters Jacks Typ B Light DIN EN 1065
Typ B

We offer three different models of the DIN EN 1065 class B props (B 30, B 35, B 40).

These are classified according to maximum extension (this model is capable of covering extensions between 1.82 m and 4.00 m) and capacity (higher with closed configuration).

Below are the technical features of each one of them.

Dimensions table
    B 30 B 35 B 40
Maximum extension cm 300 350 400
Minimum extension cm 182 207 234
Inner diameter mm 48,30 48,30 48,30
Outer diameter mm 60,30 60,30 60,30
Weight Kg 14,50 15,80 17,90

They come in 3 models with different extension and capacity:
  • SBPB3010: extendable between 1.82 and 3.00 meters
  • SBPB3510: extendable between 2.07 and 3.50 meters
  • SBPB4010: expandable between 2.34 and 4.00 meters
DIN EN 1065 class B props loads table

Extension
(meters)
B 30
1,82 - 3,00 m
(kN)
B 35
2,07 - 3,50 m
(kN)
B 40
2,34 - 4,00 m
(kN)
4,0     11,6
3,9     12,6
3,8     13,1
3,7     13,9
3,6     14,8
3,5   15,8 15,5
3,4   17,0 16,2
3,3   18,1 17,1
3,2   18,3 18,3
3,1   20,2 19,4
3,0 21,1 20,8 20,1
2,9 23,1 21,0 21,3
2,8 24,8 21,1 22,8
2,7 27,0 21,4 25,9
2,6 28,9 22,0 30,0
2,5 30,6 23,3 30,0
2,4 32,1 25,1 30,0
2,3 34,0 28,8 30,0
2,2 36,8 30,0
2,1 39,0 30,0
2,0 39,0 30,0
1,9 39,0
1,8 39,0







Made in EU - EN 1065 Gecertificeerd.

DIN EN 1065 stempels zijn heavy duty-stempels. Ontworpen om zware lasten te dragen - meer dan 30kN - vormen ze de kern van de productie.
Dankzij het certificaat van het strenge Duitse technische instituut "Materialprüfungsanstalt Universität Stuttgart" voldoen ze volledig aan de Europese norm UNI EN 1065:1999.
Deze norm stelt wereldwijd de strengste eisen aan materialen, ontwerpeisen en beschermingsmaatregelen tegen corrosie.
Het handvat van de steun is altijd voorzien van een markering met het volgende:
Het standaardonderwerp van compliance;
Jaar van fabricage;
Identificatiecode fabrikant (G staat voor ons fabriek).
DIN EN 1065 heavy duty stutten zijn er in de volgende uitvoeringen:
Gecoat;
Elektrolytisch verzinkt;
Thermisch verzinkt.
Dit type prop kan op verzoek worden aangepast met merkstickers.
Deze producten zijn compatibel met de meeste accessoires van andere bekistingen en vloeren.
GBM - Prop
General specification

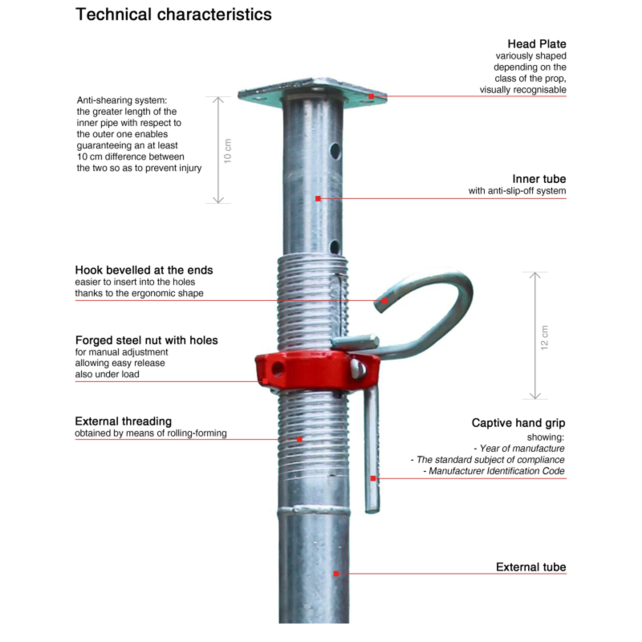

Below are the features of our “DIN EN 1065” EURO prop:

Differently shaped plates, depending on the class of the support, to make it immediately visually recognizable;
forged steel adjusting ring nut with two additional holes, suitable for millimetric adjustment;
hook chamfered at the ends: easier to insert into the holes thanks to its ergonomic shape;
anti-shear system: the greater length of the inner tube compared to the outer one makes it possible to guarantee a difference of at least 10 cm between the two to avoid injury;
male thread obtained through roll forming, ensuring the wholeness of the material without removing material;
inner holes obtained with machines that can machine them perfectly or by means of a milling system that obtains twists on the surface of the pipe: both methods guarantee the complete absence of burrs in the vicinity of the holes;
inner tube anti-slip-off system, to prevent the tube from slipping accidentally, thus guaranteeing integrity and safety when laying down and moving on site;
three types of surface protection, obtained by the process of:
dip coating;
Passivated electrolytic galvanizing (tropicalization), with a guaranteed minimum thickness of 10 microns;
hot-dip galvanizing, with a guaranteed minimum thickness of 50 microns;
Request:
Sticker personalized with the customer's logo, with information about capacity and maximum expansion;
quick release system, an accessory that guarantees the release of the support under the load by simply hitting it with the hammer to speed up and simplify the release procedure and reduce operator effort;

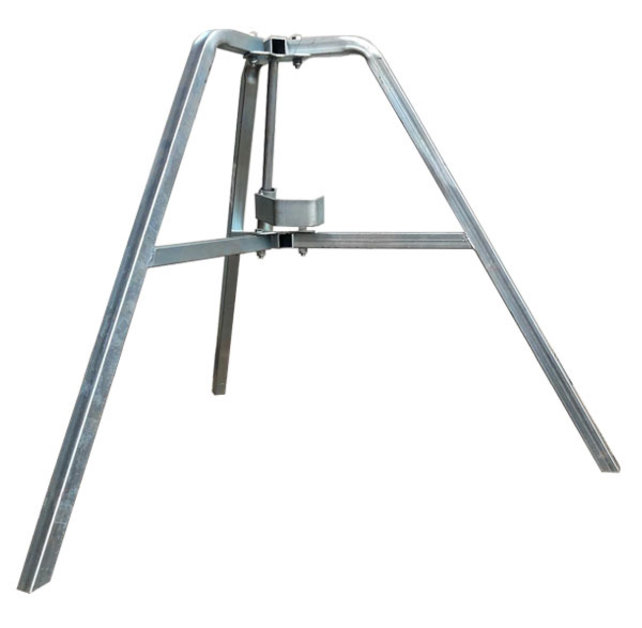

tripod that can support the support when laying on the construction site and when laying the floor;

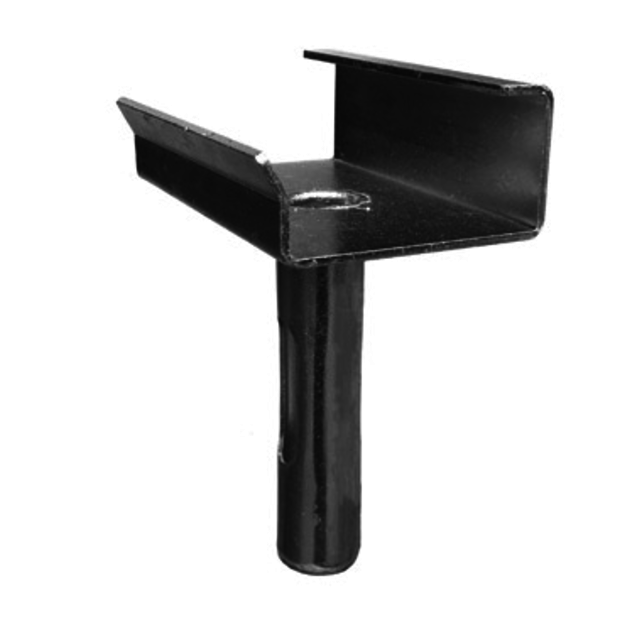

three different types of forks for supporting the floor, depending on the needs of the manufacturer:
  • head stop fork (easy),
  • 4-way head,

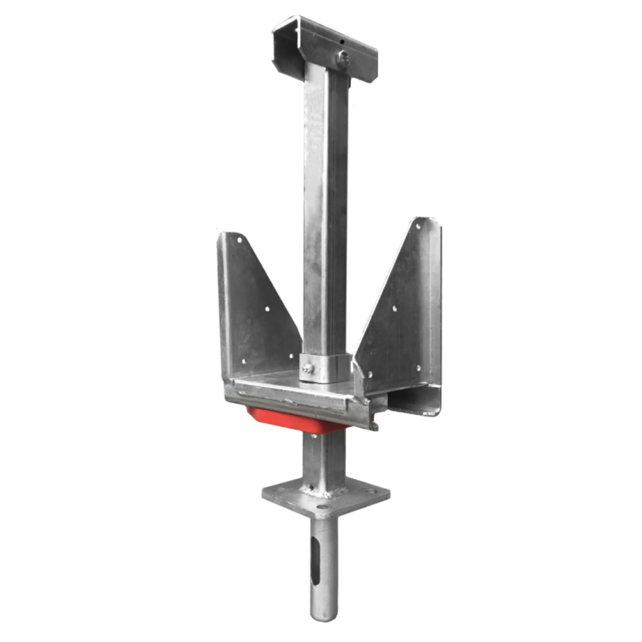

  • fork referred to as "drop head".


Note: the capacities indicated in the table always refer to the capacity of the single post shore. Higher capacities can be achieved by binding, port-like systems or pipe coupling systems. The gate-like system is a temporary structure suitable for creating a loading tower. By tying the props in quarters, the capacity can be maximized. The pipe coupling system provides top and bottom pipe with couplings; it is the same figure of the gate, which is more economical, but less fast.

Comparative table of DIN props
  B 30 B 35 B 40 D 25 ECO D 30 ECO D 35 ECO D 30 D 35 D 40 D 45 D 55 E 30 E 35 E 40
MAX EXT. (m) 3,00 3,50 4,00 2,50 3,00 3,50 3,00 3,50 4,00 4,50 5,50 3,00 3,50 4,00
MIN EXT. (m) 1,82 2,07 2,34 1,46 1,82 2,07 1,73 1,98 2,25 2,50 3,03 1,73 1,98 2,25
Ø INNER TUBE (mm) 48,30 48,30 48,30 48,30 48,30 48,30 63,50 63,50 63,50 63,50 76,10 63,50 63,50 76,10
Ø OUTER TUBE (mm) 60,30 60,30 60,30 60,30 60,30 60,30 76,10 76,10 76,10 76,10 88,90 76,10 76,10 88,90
Weight (Kg) 14,50 15,80 17,90 13,00 15,90 17,60 17,80 19,70 22,10 27,50 35,00 17,50 23,80 26,00

Product information
Brand Salesbridges
Article code SBPB4010
SKU SBPB4010
EAN 9507329574935
