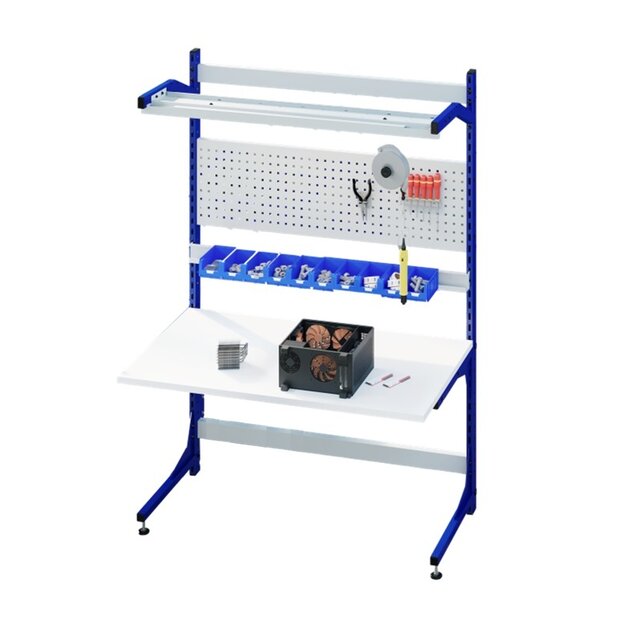

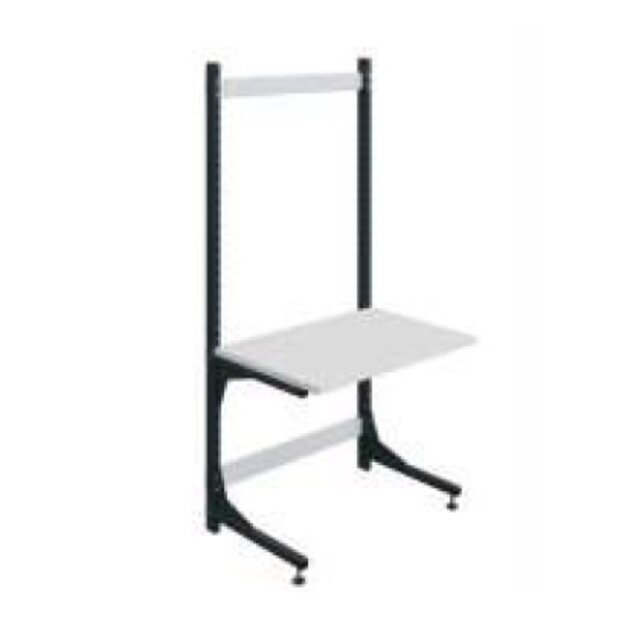

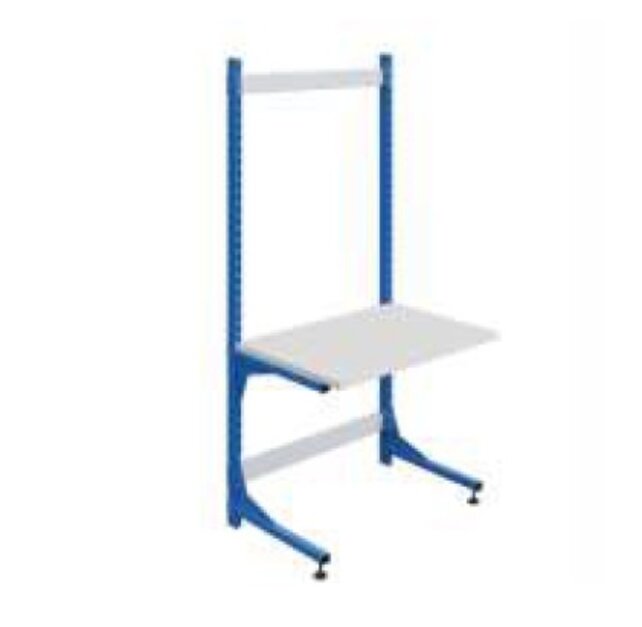

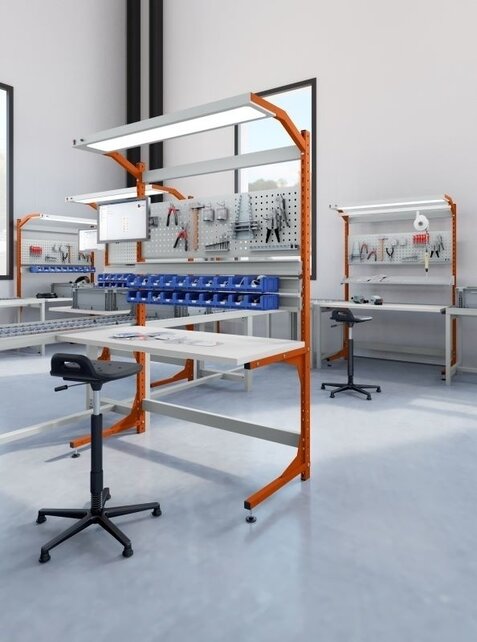

Production line workstation conveyor workbench 150 kg with worktop
Workstation with metal structure perforated profile with total height of 1950 mm adjustable height with 50mm incrementation. Load capacity 150kg. Choice of length 925mm or 1360mm. Depth 650 or 750mm. 5 years warranty. Made in France
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Production Line Workstation – Conveyor Worktable 150 kg with Worktop
Create an efficient, scalable production or packing line with this modular industrial workstation. Built on a heavy-duty steel structure with 4-sided perforated uprights, it is designed for fast configuration changes and easy mounting of accessories such as shelves, rails, and lighting supports. Ideal for assembly, inspection, kitting, and packing workflows where ergonomics and line flow matter.
Why choose this workstation (key benefits)
- 150 kg load capacity per workstation for demanding industrial use
- Height adjustable structure with 50 mm increments (easy reconfiguration)
- Perforated uprights on all 4 sides for modular accessories and future expansion
- Leveling feet with 30 mm stroke to compensate uneven floors
- Multiple sizes available to fit your line layout
- Choice of worktops: high-durability laminate, melamine, or gravity roller/roller track surfaces
- Durable epoxy powder coating, oven-cured at 180°C
Common applications
- Assembly and sub-assembly stations

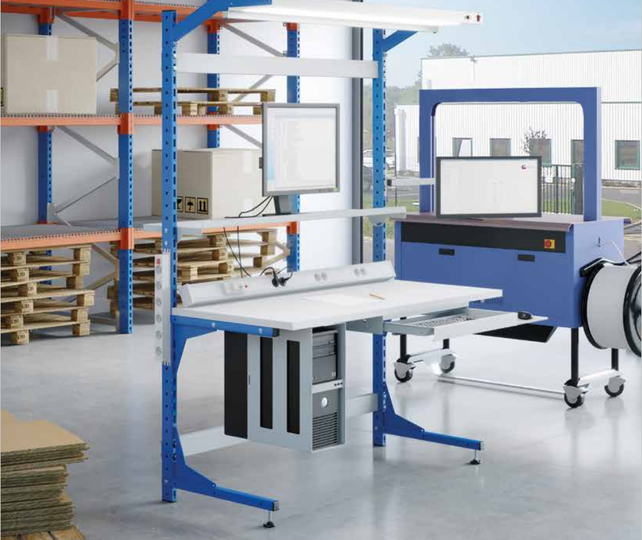

- Packing and order fulfillment benches
- Quality control and inspection workstations

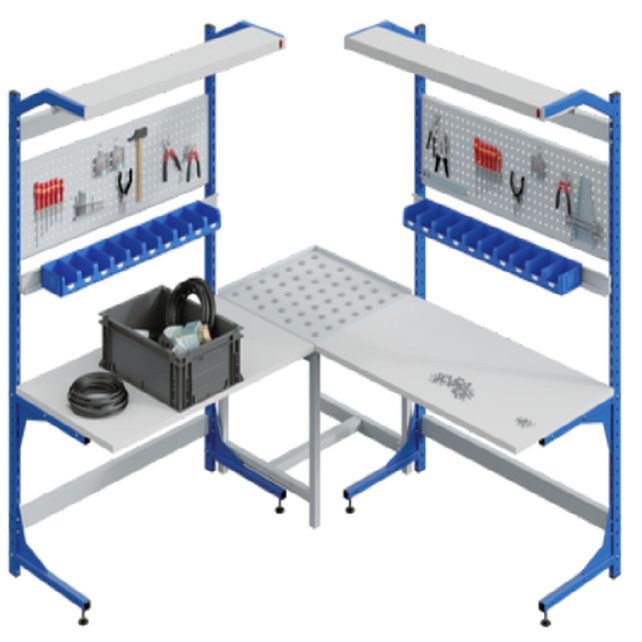

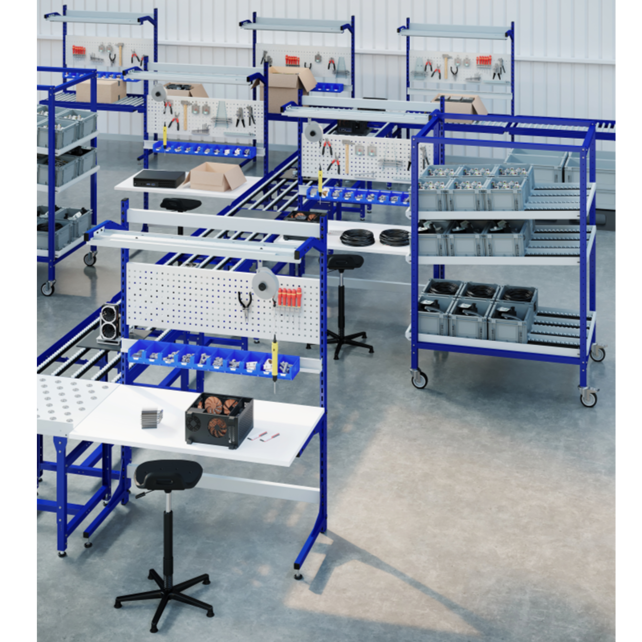

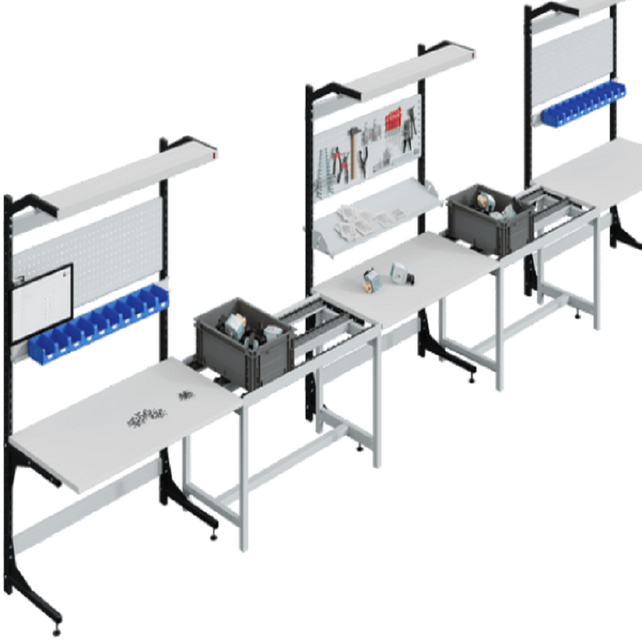

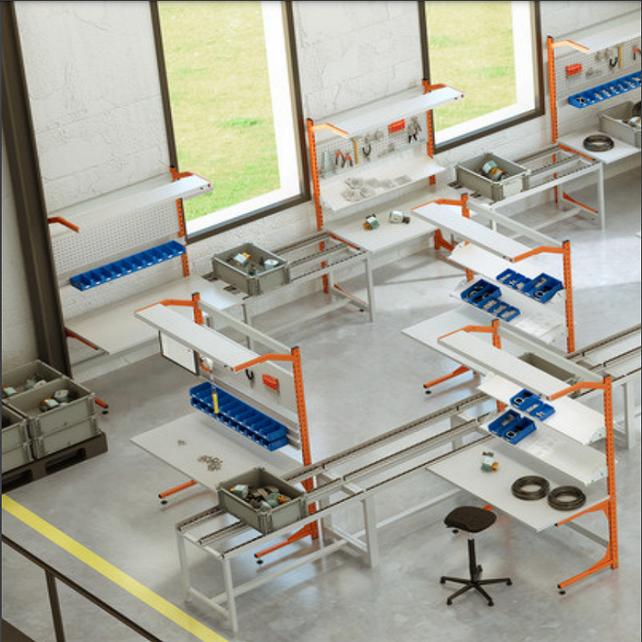

- Production line workpoints with gravity roller / roller track transfer
Configuration options
Choose the setup that matches your process and footprint:
- Lengths: 925 mm or 1360 mm
- Depths: 650 mm or 750 mm
- Work surface options:
- RESITOP laminated worktop, 40 mm
- Melamine worktop, 28 mm
- Gravity roller / roller track worktop (roller/ball transfer variants available on request)
Technical specifications
| Specification | Value |
|---|---|
| Product type | Modular production line workstation / conveyor-compatible worktable |
| Load capacity | 150 kg (per workstation) |
| Overall upright height | 1950 mm |
| Height adjustment | Adjustable in 50 mm steps (via perforated uprights) |
| Uprights (material/section) | Steel tube 60 × 30 mm, thickness 2.0 mm (20/10) |
| Upright perforation (sides) | 10 × 10 mm square, 50 mm pitch |
| Upright perforation (front/back) | 30 × 10 mm slot, 50 mm pitch |
| Base frame (material/section) | Steel tube 35 × 35 mm, thickness 2.0 mm (20/10) |
| Leveling system | Adjustable feet (front) with 30 mm stroke |
| Worktop support arms | Steel tube 35 × 35 mm, height adjustable |
| Finish | Epoxy powder coating, polymerized at 180°C |
| Worktop options | 40 mm RESITOP laminate / 28 mm melamine / gravity rollers or roller track top |
| Standard | In compliance with XPD 65762 |
| Sustainability note | Wood worktops are PEFC certified (where applicable) |
Delivery (Netherlands, Belgium & Europe)
SALESBRIDGES supplies this workstation with delivery options in the Netherlands and Belgium, and we also ship across Europe. Lead time and transport costs depend on configuration and quantity—request a quotation for the fastest and most accurate schedule.
Made in France
RFQ / Quotation request
Contact us for pricing, configuration support, and project-based layouts:
Email: [email protected]
Phone: +31 6 52883848
| Brand | Salesbridges |
| Article code | SB010050001 |
| SKU | SB010050001 |
| EAN | 9501194244924 |
