Forklift Lifting traverse with Swivel Hook 2000 kg – Single Fork
Lifting beam with load hook is the ideal hoisting accessory, when it comes to a safe and secure handling. Capacity 2000 kg.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

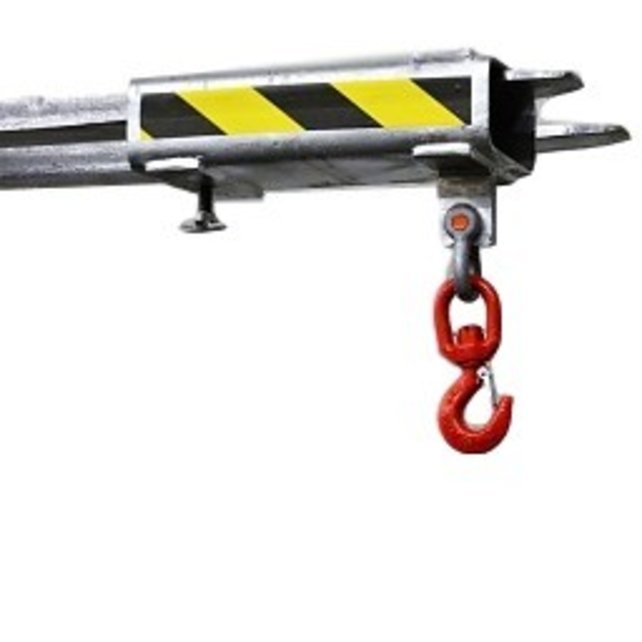

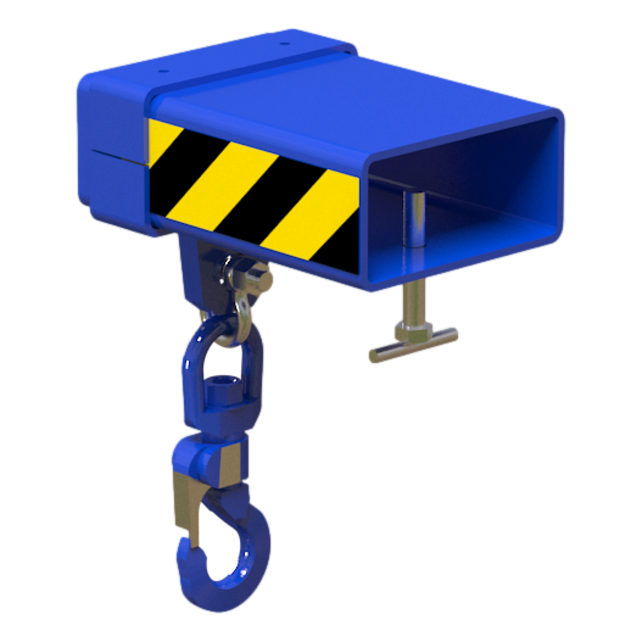

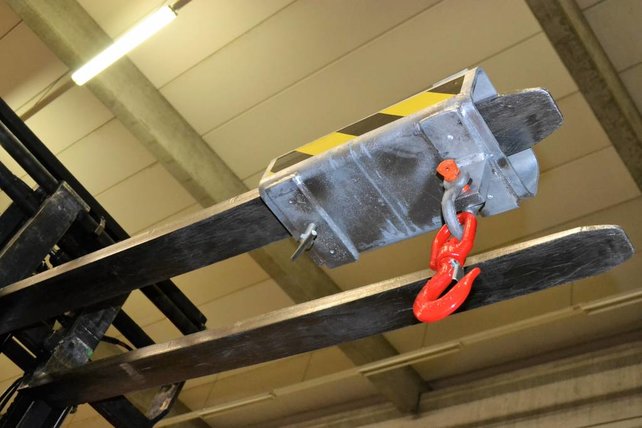

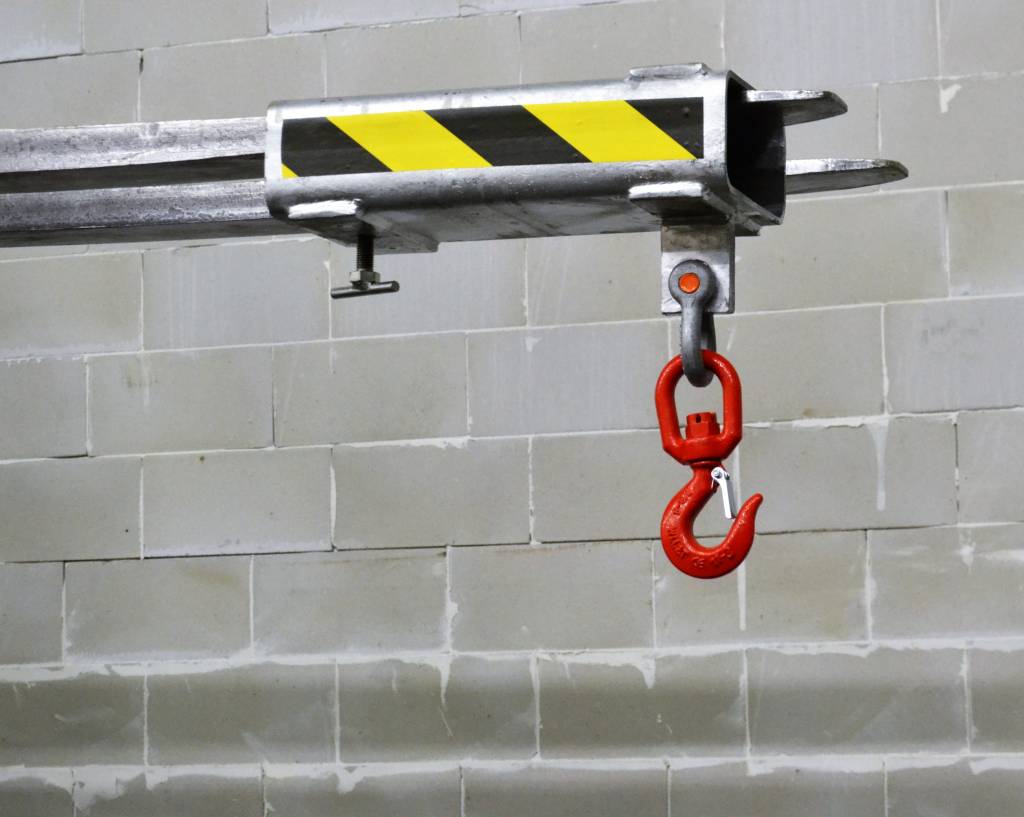

Forklift Lifting Attachment with Swivel Hook 2000 kg – Single Fork
This forklift lifting attachment with swivel hook allows suspended loads to be moved using a forklift. It mounts on one fork and is secured against unintended slipping. A practical solution for lifting operations and internal materials handling in warehouses, workshops and industrial facilities.
The offered configuration has a maximum lifting capacity of 2000 kg, limited by the supplied 2-tonne hook. The fork pocket can support a maximum of 3000 kg. This structural capacity does not increase the permitted lifting capacity of the complete offered configuration.
Key Benefits
-
Simple mounting on a single forklift fork.
-

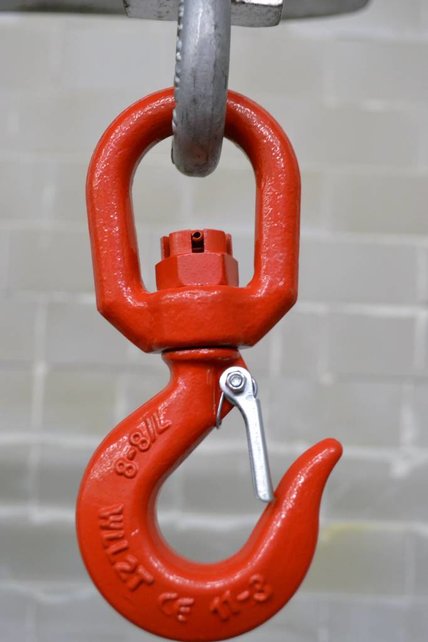

Swivel lifting hook with a capacity of 2000 kg.
-
Securing device against unintended slipping.
-
Compact S235 steel construction.
-
RAL 5010 powder-coated finish.
-
Supplied with a certified lifting hook and D-shackle.
-
Alternative coating colour available on request.
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | Forklift lifting attachment with swivel hook |
| Maximum capacity of the offered configuration | 2000 kg |
| Maximum fork pocket capacity | 3000 kg |
| Mounting | Single forklift fork |
| Overall dimensions (L × W × H) | 300 × 212 × 192 mm |
| Internal fork pocket dimensions | 188 × 88 mm |
| Net weight | 13 kg |
| Sheet metal material | S235 steel |
| Profile and tube material | S235 steel |
| Weld notation | ISO 2553:2019 |
| Supplied swivel lifting hook | 2-tonne capacity |
| Supplied D-shackle | G209, WLL 3.25 tonnes |
| Surface finish | Powder coating |
| Standard colour | RAL 5010 |
| Alternative colour | Available on request |
Capacity and Use
The supplementary technical documentation lists a 322A swivel hook with a 3-tonne capacity. However, the configuration offered here is supplied with a 2-tonne hook and is therefore limited to 2000 kg.
Before use, check fork fit, the securing device and the forklift’s residual lifting capacity at the actual load position. The lowest permitted capacity of the complete combination determines the allowable load. Always follow the relevant operating instructions.
Delivery and Request a Quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. Contact us for availability, lead times, an alternative coating colour or a B2B quotation. Include the required configuration, quantity and delivery location.
Email: [email protected]
Phone: +31 6 52883848
| Brand | SalesBridges |
| Article code | SBTR1RH2000 |
| SKU | SBTR1RH2000 |
| EAN | 7091048009202 |
