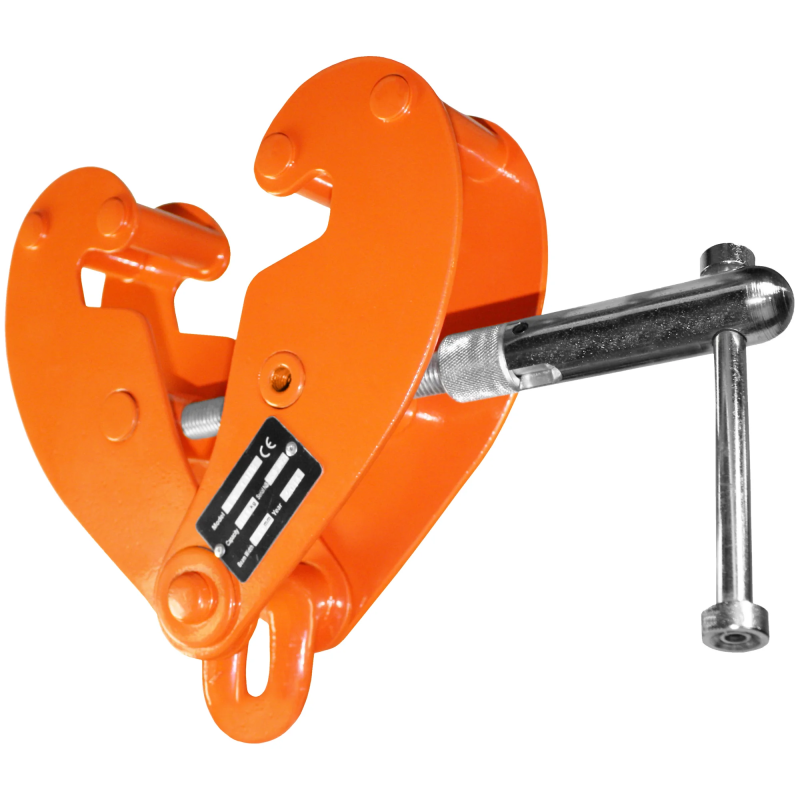

KSBO professional beam clamps and hand trolleys - 1000-10000 kg
The KSBO series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.
Key features
- Fast installation on suitable steel profiles
- Suitable as a suspension point or for load travel, depending on model
- Safety factor and proof load according to the product specification
- Check beam size, load direction and WLL before use

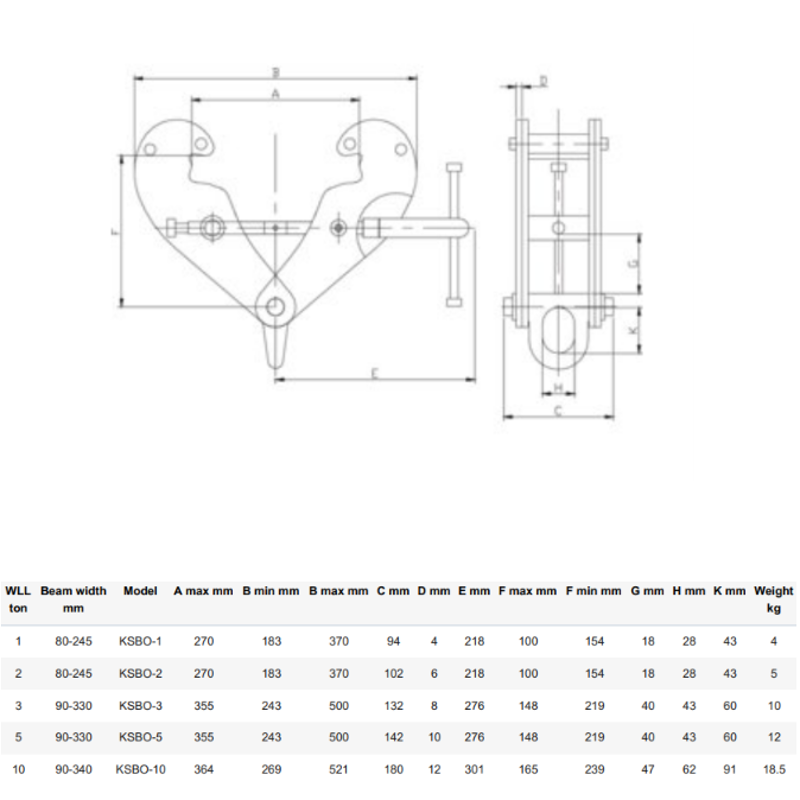

Technical specifications
| Model | Capacity | Range | Weight | Article code |
|---|---|---|---|---|
| KSBO-1 | 1000 kg | 80-245 | 4 kg | SB3317101 |
| KSBO-2 | 2000 kg | 80-245 | 5 kg | SB3317102 |
| KSBO-3 | 3000 kg | 90-330 | 10 kg | SB3317103 |
| KSBO-5 | 5000 kg | 90-330 | 12 kg | SB3317105 |
| KSBO-10 | 10000 kg | 90-340 | 18.5 kg | SB3317110 |
| Norm | EN 12100-1/2, EN 13155 / EN 13157, AS 4991, ASME B30.20 (as applicable) | |||
Properties
-
Suspension eye: Equipped with a suspension eye.
-
Locking spindle: The locking spindle can be secured by means of a nut for extra safety.
-
Easy assembly: Easy assembly by spindle.
-
Beam compatibility: Suitable for IPE and INP beams.
-
Marking: According to standard, CE-marked.
-
Standard: EN 12100, EN 13155.
-
Safety factor: 4.
