CSV professional beam clamps and hand trolleys - 1000-5000 kg
The CSV series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
CSV professional beam clamps and hand trolleys - 1000-5000 kg
The CSV series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.
Key features
- Fast installation on suitable steel profiles
- Suitable as a suspension point or for load travel, depending on model
- Safety factor and proof load according to the product specification

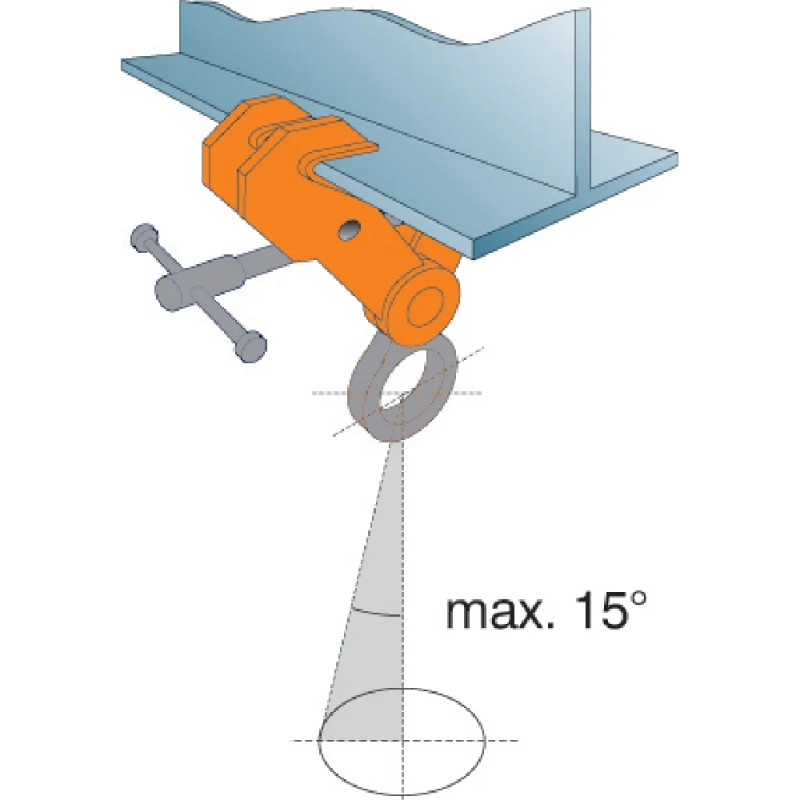

- Check beam size, load direction and WLL before use

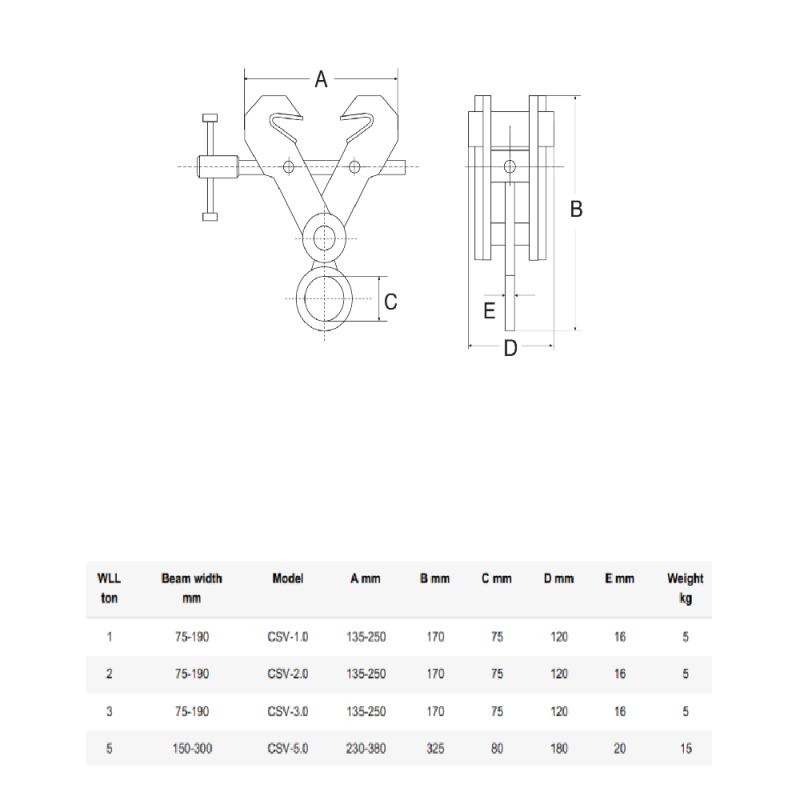

Technical specifications
| Model | Capacity | Range | Weight | Article code |
|---|---|---|---|---|
| CSV-1.0 | 1000 kg | 75-190 | 4 kg | SB3368001 |
| CSV-2.0 | 2000 kg | 75-190 | 5 kg | SB3368002 |
| CSV-3.0 | 3000 kg | 75-190 | 5 kg | SB3368003 |
| CSV-5.0 | 5000 kg | 150-300 | 15 kg | SB3368005 |
| Norm | EN 12100-1/2, EN 13155 / EN 13157, AS 4991, ASME B30.20 (as applicable) | |||
Properties
-

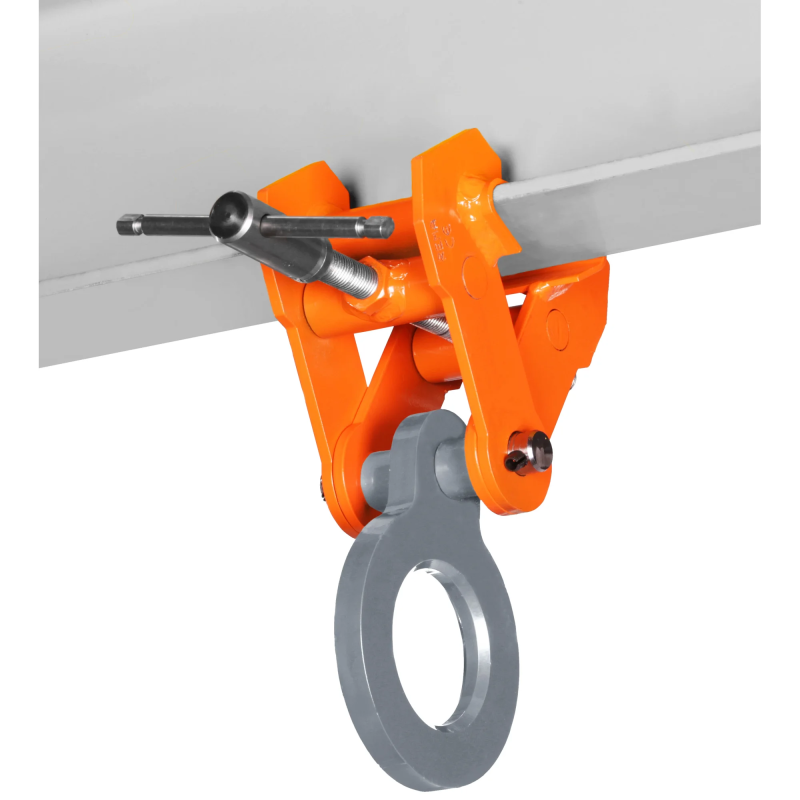

Spindle-equipped beam clamp: Equipped with a spindle for quick and easy mounting on a beam.
-
Safety factor: At least 5 × WLL.
-
Testing: Each clamp is tested at 2 × WLL.
-
Marking: According to standard, CE-marked.
-
Standard: EN 12100, EN 13155.
-
Safety factor: 5.
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
| Brand | Rema |
| Article code | SB3368001 |
| SKU | SB3368001 |
| EAN | 9508798474979 |
