HS Stationary Lift Table 1 Ton – 1300 x 820 mm Platform – Universal Industrial Lifting Table with Safety Frame

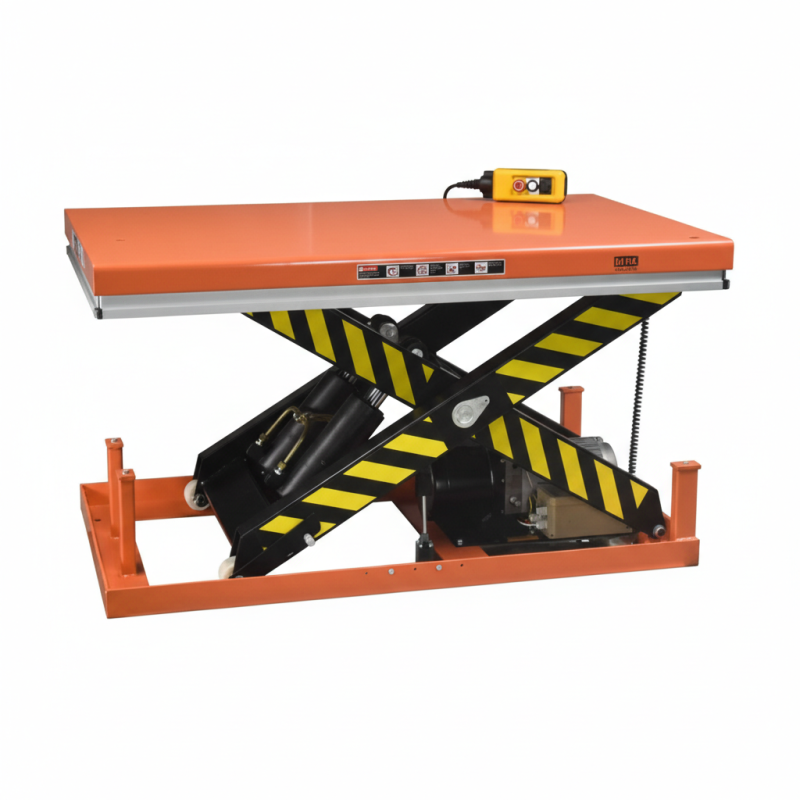

The HS stationary lift table 1 ton by SalesBridges is a universal industrial solution for safely lifting heavy loads up to 1 ton. With a robust steel scissor mechanism and aluminum safety frame, this lift table ensures safe and efficient operation in workshops, warehouses, and production lines.
Equipped with overload protection and hose-rupture safety valve, it guarantees maximum safety. Hard-chromed cylinder and piston rod, along with lifetime-lubricated bearings, ensure durability and low maintenance.
Key Features
-
Universal stationary lift table for heavy loads up to 1 ton
-

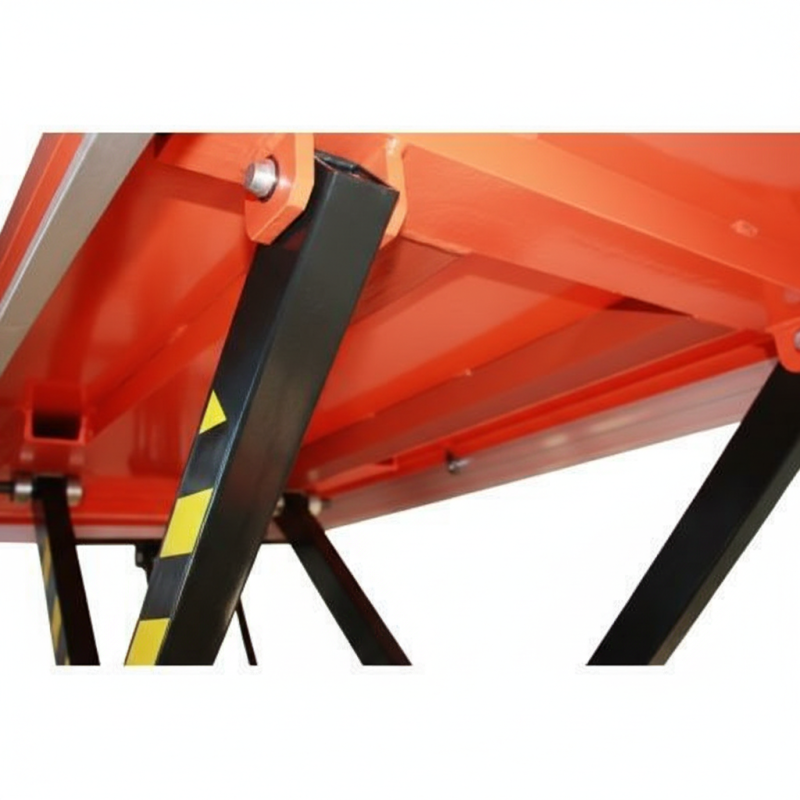

Robust steel scissors and profile-reinforced platform
-
Aluminum safety frame for added protection
-
Overload protection and hose-rupture safety valve
-
Lifetime lubricated bearings
-
Operating voltage 400V, control voltage 24V, IP54 protection class
-
CE marked according to EN 12100 and EN 1570
Applications
-
Industrial production and manufacturing
-
Assembly and maintenance work
-
Warehouse and internal transport
-
Machine handling and service
Technical Specifications
| Specification | Value |
|---|---|
| Capacity (WLL) | 1 ton |
| Model | HS1-01 |
| Lifting times | 20 |
| Motor | 0.75 kW |
| Lifting cycle/hour | 21 |
| A | 248 mm |
| B | 1,300 mm |
| C | 820 mm |
| D | 640 mm |
| E | 1,240 mm |
| H | 1,033 mm |
| Weight | 160 kg |
Standard Delivery
-
24 V push button switch with emergency stop
-
Removable lifting eyes for easy transport
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request a Quote
For pricing, bulk orders, or project inquiries, contact our sales team:
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB3459001 |
| SKU | SB3459001 |
| EAN | 9509733146760 |
