HS Stationary Lift Table 0.5 Ton – 2000 x 800 mm Platform – Universal Industrial Lifting Table with Safety Frame
Stationaire HS heftafel 0,5 ton met robuuste schaar, aluminium veiligheidsframe en overload bescherming. Ideaal voor industriële toepassingen. Levering in Nederland, België en Europa via SalesBridges.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
HS Stationary Lift Table 0.5 Ton – 2000 x 800 mm Platform – Universal Industrial Lifting Table with Safety Frame

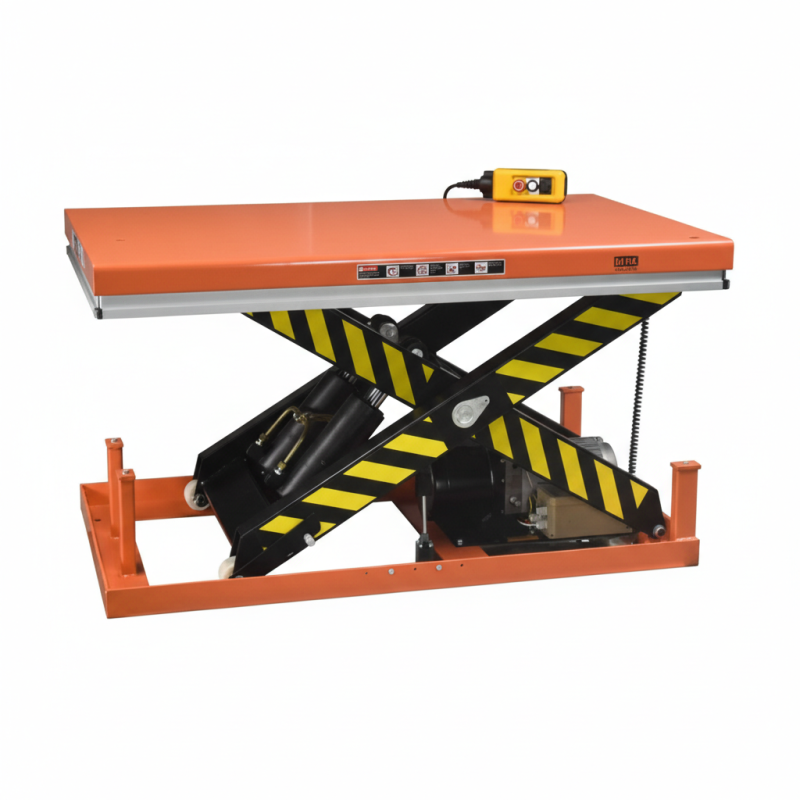

The HS stationary lift table by SalesBridges is a universal industrial solution for safely lifting heavy loads. With a robust steel scissor design and aluminum safety frame, this lift table can be installed in a pit for space-saving and efficient operation.
Equipped with overload protection and hose-rupture safety valve, the table ensures reliable performance and safe operation in industrial environments. Hard-chromed cylinder and piston rod, along with lifetime-lubricated bearings, guarantee durability and minimal maintenance.
Key Features
-
Universal stationary lift table for heavy loads
-

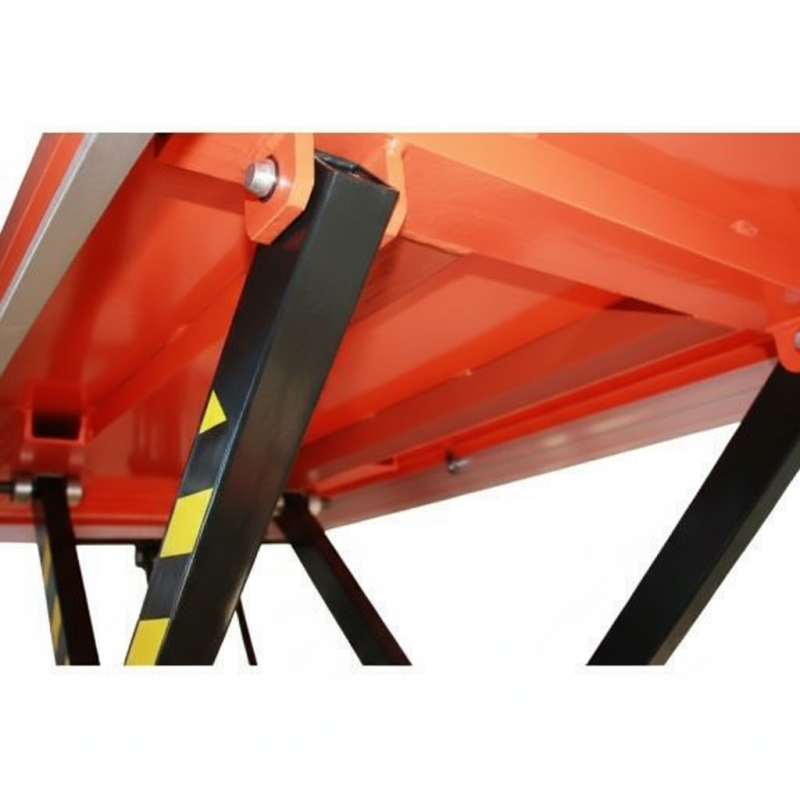

Robust steel scissors and profile-reinforced platform
-
Aluminum safety frame for added protection
-
Overload protection and hose-rupture safety valve
-
Lifetime lubricated bearings
-
Operating voltage 400V, control voltage 24V, IP54 protection class
-
CE marked according to EN 12100 and EN 1570
Applications
-
Industrial production and manufacturing
-
Assembly and maintenance work
-
Warehouse and internal transport
-
Machine handling and service
Technical Specifications
| Specification | Value |
|---|---|
| Capacity (WLL) | 0.5 ton |
| Model | HS05-01 |
| Lifting times | 25 |
| Motor | 1.1 kW |
| Lifting cycle/hour | 21 |
| A | 243 mm |
| B | 2,000 mm |
| C | 800 mm |
| D | 680 mm |
| E | 1,615 mm |
| H | 1,043 mm |
| Weight | 193 kg |
Standard Delivery
-
24 V push button switch with emergency stop
-
Removable lifting eyes for easy transport
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request a Quote
For pricing, bulk orders, or project inquiries, contact our sales team:
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | REMA |
| Article code | SB3459005 |
| SKU | SB3459005 |
| EAN | 9508523387154 |
