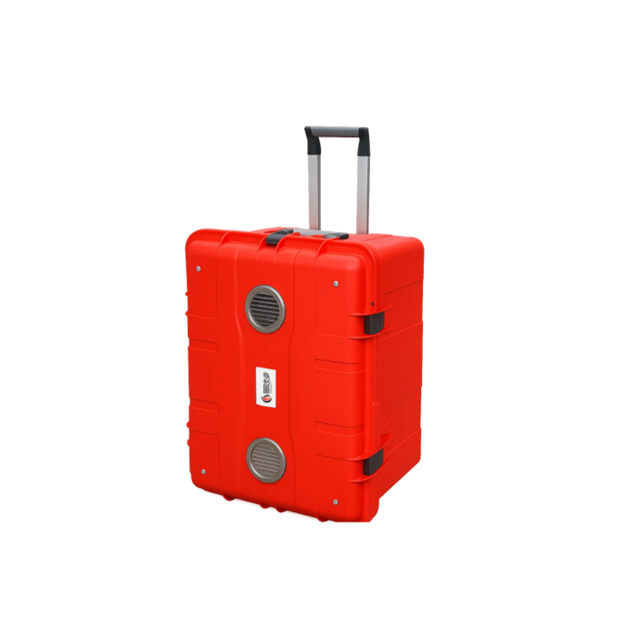

Fire Protection Trolley – Lithium Battery Safety Transport Case – 800 × 600 × 445 mm

Fire Protection Trolley M – Lithium Battery Safety Transport Case – 800 × 600 × 445 mm

The Fire Protection Trolley M is a professional safety case designed for transport, storage, and handling of lithium-ion batteries.

The case is developed in Germany and filled with PyroBubbles® fire protection material to provide maximum protection in case of battery incidents.

General Specifications

• External dimensions (L × W × H): 800 × 600 × 445 mm

• Internal dimensions (L × W × H): 700 × 500 × 380 mm

• Internal volume: 133 L

• Empty weight: 20 kg

• Assembly weight: 52.4 kg

• Maximum gross weight: 60 kg

Construction

• Type: Suitcase / trolley

• Material: Polypropylene (PP)

• Colour: Red

• Inlay: PTFO, thickness 4 – 5 mm

Maximum Battery Size

• Max battery dimensions: 650 × 450 × 330 mm

Certification & Transport

• UN Code: UN 4H2/Y60/S/**/CZ/CIM 16425/GENIUS

• Applicable packing instructions: P903, P908, P909, P910

• Customs tariff number: 39231090

Suitable For

• Non-damaged lithium batteries

• Damaged but non-critical batteries

• Batteries for recycling

• Prototype batteries

Logistics

• Stackable: Yes

• Stack height: 445 mm

• Castors: 2 pcs

• Handles: 2 side handles + 1 telescopic handle

• Cable feed: 1 × Ø 40 mm

Safety Features

• Closures: 2

• Ventilation systems: 2

• Fire protection filler: PyroBubbles® Pure-M

Included Filling Material

Delivery includes:

• 2 × PP-XL cushions – Pure-M approx. 12.5 kg (50 L)

Delivery

Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
