Electrical Insulating Switchboard Mat Class 2 – 17,000 V – 6.4 mm
Class 2 electrical insulating PVC mat for switchboards and electrical installations. Rated for use up to 17,000 V, 6.4 mm thick with diamond plate surface.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Electrical Insulating Mat Class 2 – 17,000 V – 6.4 mm

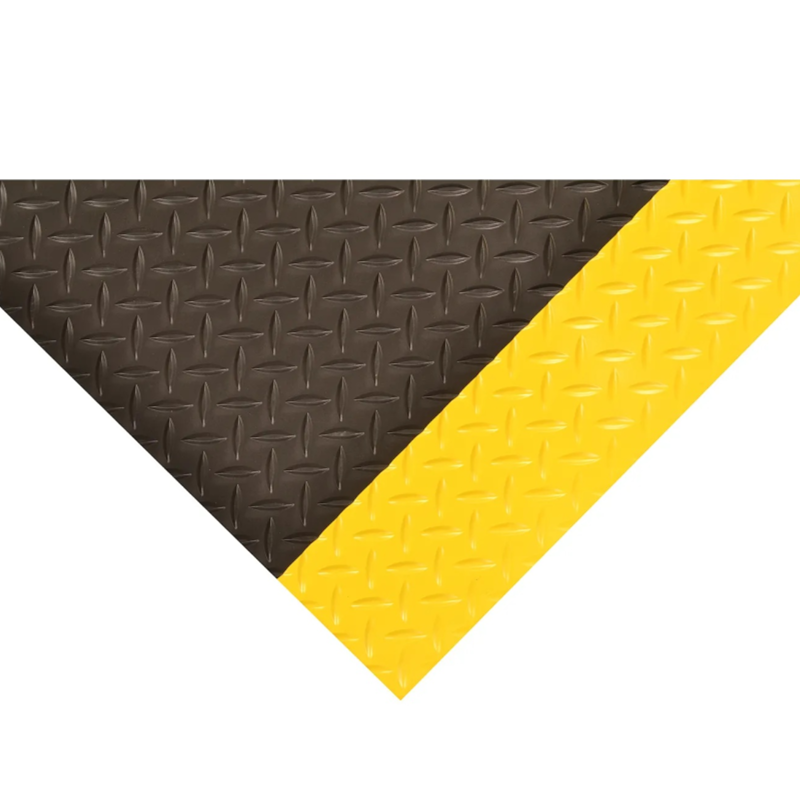

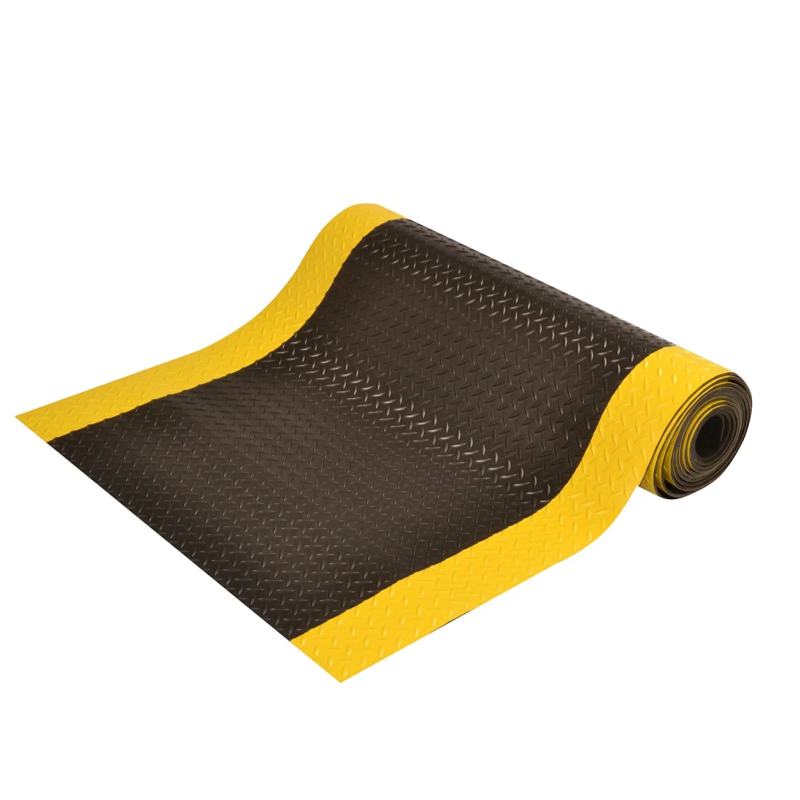

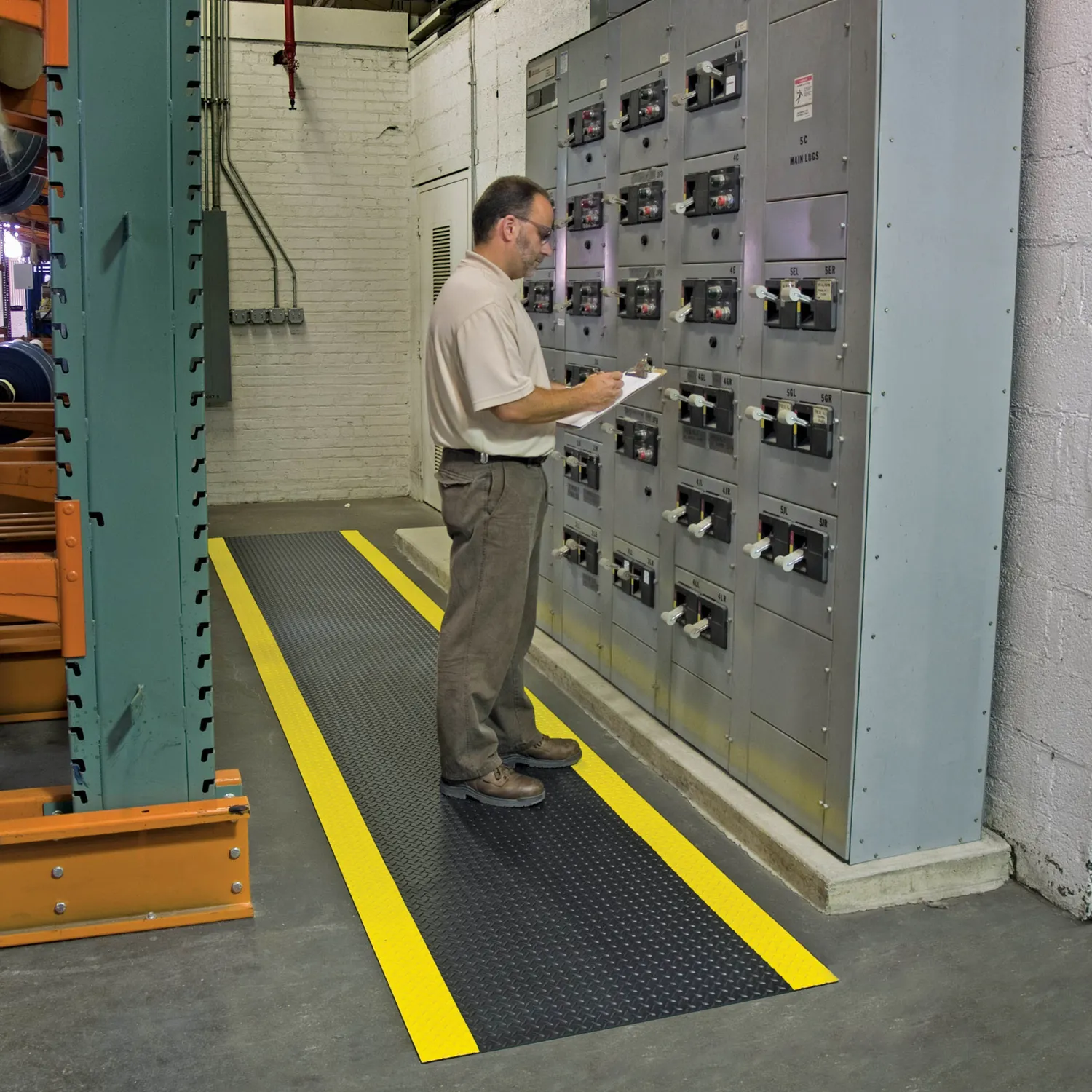

The Notrax 831 Switchboard Matting Diamond Class 2 is a heavy-duty electrical insulating PVC mat designed to provide an additional layer of personnel protection when working near electrical switchgear, switchboards and energized electrical equipment.
The mat helps prevent personnel from being grounded through the floor and provides an additional safety barrier in electrical working areas. Its distinctive diamond plate surface improves traction and stable footing while allowing easy twist turns. The surface is also easy to sweep and maintain.
Its heavy-duty industrial construction makes this electrical safety mat suitable for professional use in industrial facilities, utilities, electrical rooms and maintenance environments.
Key Features
- Class 2 electrical insulating matting
- Recommended maximum usage voltage: 17,000 V
- Heavy-duty industrial PVC construction
- Thickness: 6.4 mm
- Diamond plate pattern for improved traction
- Designed for dry indoor areas
- Tested according to ANSI/ASTM D-178
- Easy-to-sweep surface
- REACH and RoHS compliant
- Designed for heavy-duty professional applications
- Manufacturer recommends replacement every 12 months for optimum safety
Recommended Applications
Suitable for professional applications including:
- Electrical switch rooms
- Switchboards and electrical panels
- Substations and transformer areas
- Generator rooms
- Engine rooms
- Industrial electrical installations
- Technical service rooms
- Electrical maintenance zones
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Notrax |
| Product | Switchboard Matting Diamond |
| Product Number | 831 |
| Insulation Class | Class 2 |
| Recommended Max. Usage Voltage | 17,000 V |
| Material | PVC |
| Manufacturing Process | Calendering |
| Thickness | 6.4 mm |
| Surface Pattern | Diamond plate |
| Usage Intensity | Heavy duty |
| Recommended Areas | Dry areas |
| Edges | No borders |
| Hardness | 91 Shore A |
| Elongation | 317% |
| Tear Strength | 2505 PI |
| Surface Flammability | Pass |
| Compliance | REACH, RoHS |
| Color | Black/Yellow |
| Replacement Guidance | Every 12 months for optimum safety |
Available Sizes
| Article Number | Size | Thickness | Weight |
|---|---|---|---|
| 831R0375BY | 91 cm x 22.8 m | 6.4 mm | 174 kg |
| 831C0036BY | 91 cm x 1 linear metre | 6.4 mm | 7.6 kg |
Required quantities, lengths and cutting requirements can be confirmed during the quotation process.
Delivery in the Netherlands and Across Europe
SALESBRIDGES supplies professional electrical safety products for industrial, utility, technical and facility maintenance applications. This Class 2 electrical insulating matting is available for delivery throughout the Netherlands and across Europe.
For larger quantities, projects, specific lengths or technical requirements, request a quotation from our sales team.
Request a Quote
For pricing, availability, lead times and project enquiries, contact SALESBRIDGES:
Email: [email protected]
Phone: +31 6 52883848
