Switchboard Matting™ Class 1 Insulated Mats – Electrical Safety Black
The Switchboard Matting™ Class 1 insulated mat is designed to protect personnel working near electrical equipment by preventing grounding and reducing the risk of electric shock. Manufactured for use in dry industrial environments, the mat complies with A
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Switchboard Matting™ Class 1 Notrax Insulated Mats – Electrical Safety Black
Insulating Safety Mat for Electrical Protection
The Switchboard Matting™ Class 1 Notrax insulated mat is designed to protect personnel working near electrical equipment by preventing grounding and reducing the risk of electric shock. Manufactured for use in dry industrial environments, the mat complies with ANSI/ASTM D-178 specifications, with every square inch individually tested to ensure reliable electrical insulation performance.

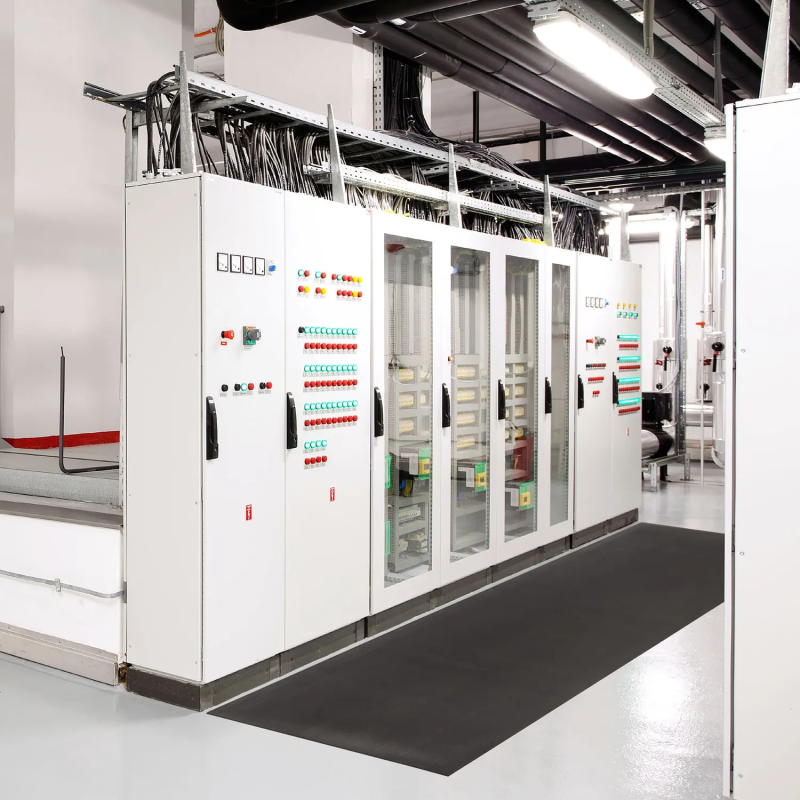

Suitable for use around electrical substations, transformers, switchboards, control panels, engine rooms, and generator rooms, the corrugated saw-tooth surface provides excellent traction while remaining easy to clean and maintain.
Key Features
- Class 1 electrical insulating matting
- Tested according to ANSI/ASTM D-178 standards
- Recommended maximum usage voltage: 7,500 V
- Corrugated saw-tooth surface for improved grip
- Helps prevent workers from becoming grounded
- Ozone-resistant, flame-resistant, and oil-resistant
- Suitable for heavy-duty industrial applications
- Easy-to-clean ribbed surface
- Designed for dry environments
- Recommended replacement every 12 months
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Electrical insulating mat |
| Classification | Class 1 |
| Colour | Black |
| Surface Pattern | Corrugated saw-tooth ribs |
| Thickness | 4.7 mm |
| Recommended Maximum Voltage | 7,500 V |
| Standard | ANSI/ASTM D-178 |
| Resistance | Ozone, flame and oil resistant |
| Environment | Dry indoor areas |
| Duty Rating | Heavy-duty |
| Available Width | 910 mm |
Available Variants
- 91 × 150 cm × 4.7 mm — 12.8 kg
- 91 cm × linear meter × 4.7 mm — 7.6 kg
Recommended Applications
- Electrical substations
- Transformers and switches
- Electrical panels and switchboards
- Fuse boxes
- Engine rooms
- Generator rooms
- Industrial facilities
Delivery
Delivery in the Netherlands and Belgium and shipping across Europe via SALESBRIDGES.
Request A Quote Or More Information
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | Salesbridges |
| Article code | SB830S0035BL |
| SKU | SB830S0035BL |
| EAN | 9508321133298 |
