Electric Hydraulic Mini Stacker 400kg – 1500mm Lift

Create your own review

EUR 2.235,00 Excl. tax

EUR 2.704,35 Incl. tax

Excl. Shipping costs

Electric hydraulic mini stacker with fixed forks and loose chromed platform for multipurpose use. Handle half size pallets or use as mobile lifting table. Electric lifting for effortless operation. Platform 650x580 mm. Capacity 400 kg. Lift 80-1500 mm. Ba

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

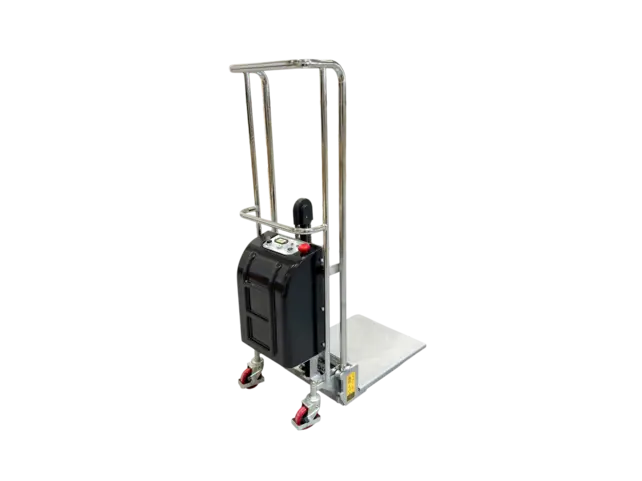

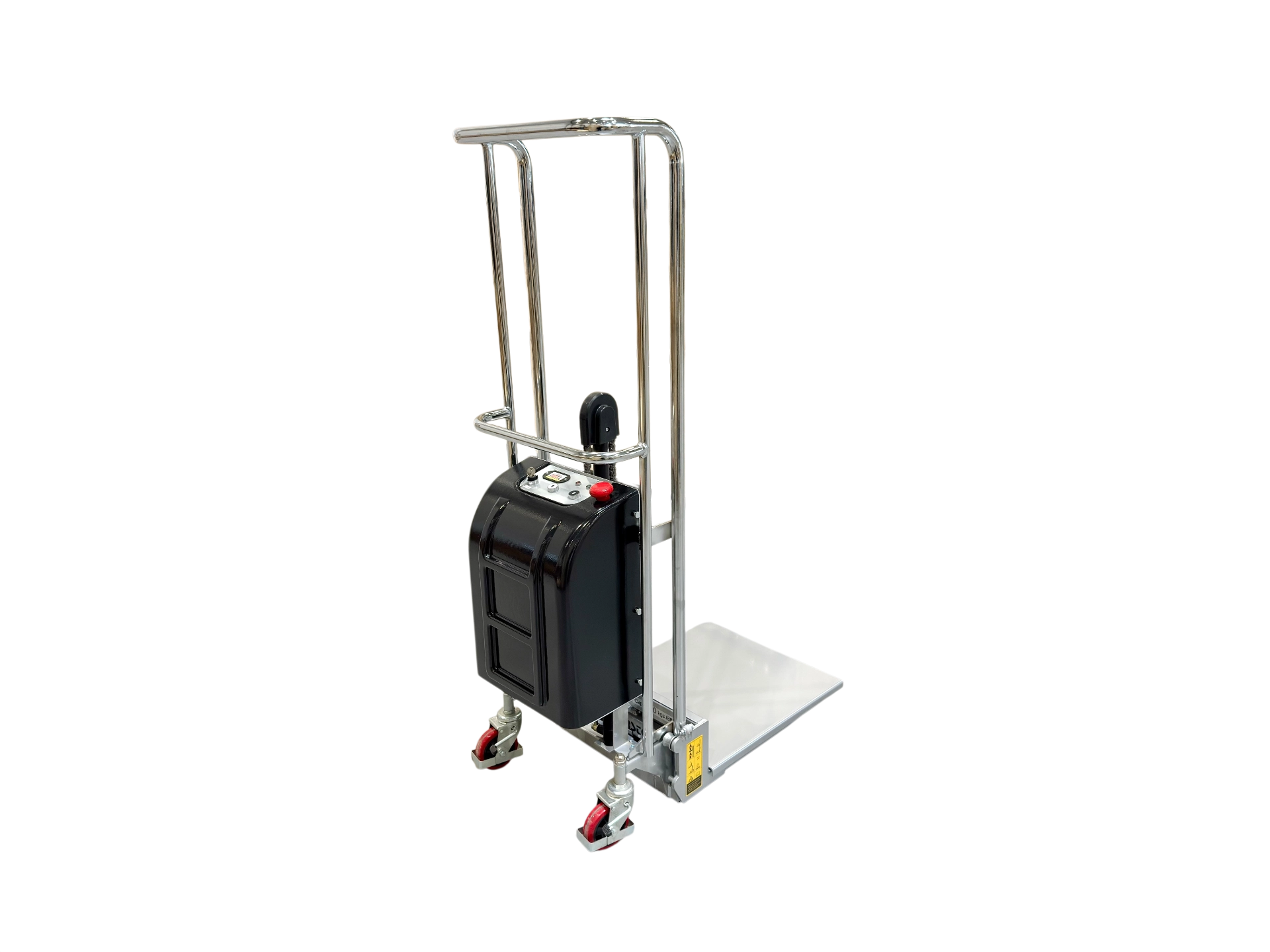

Electric Hydraulic Mini Stacker – 400 kg – 1500mm Lift

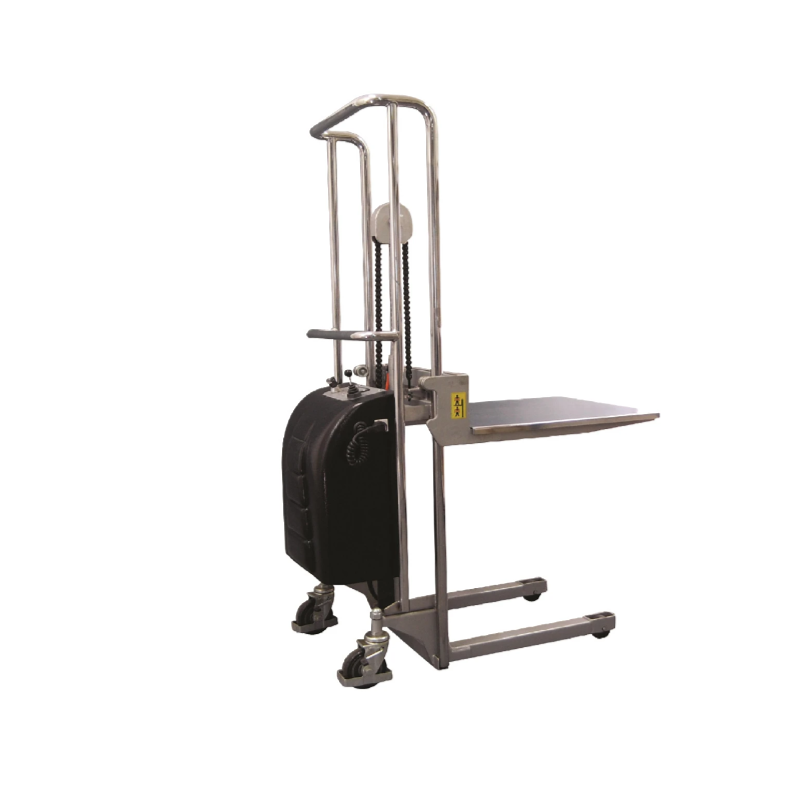

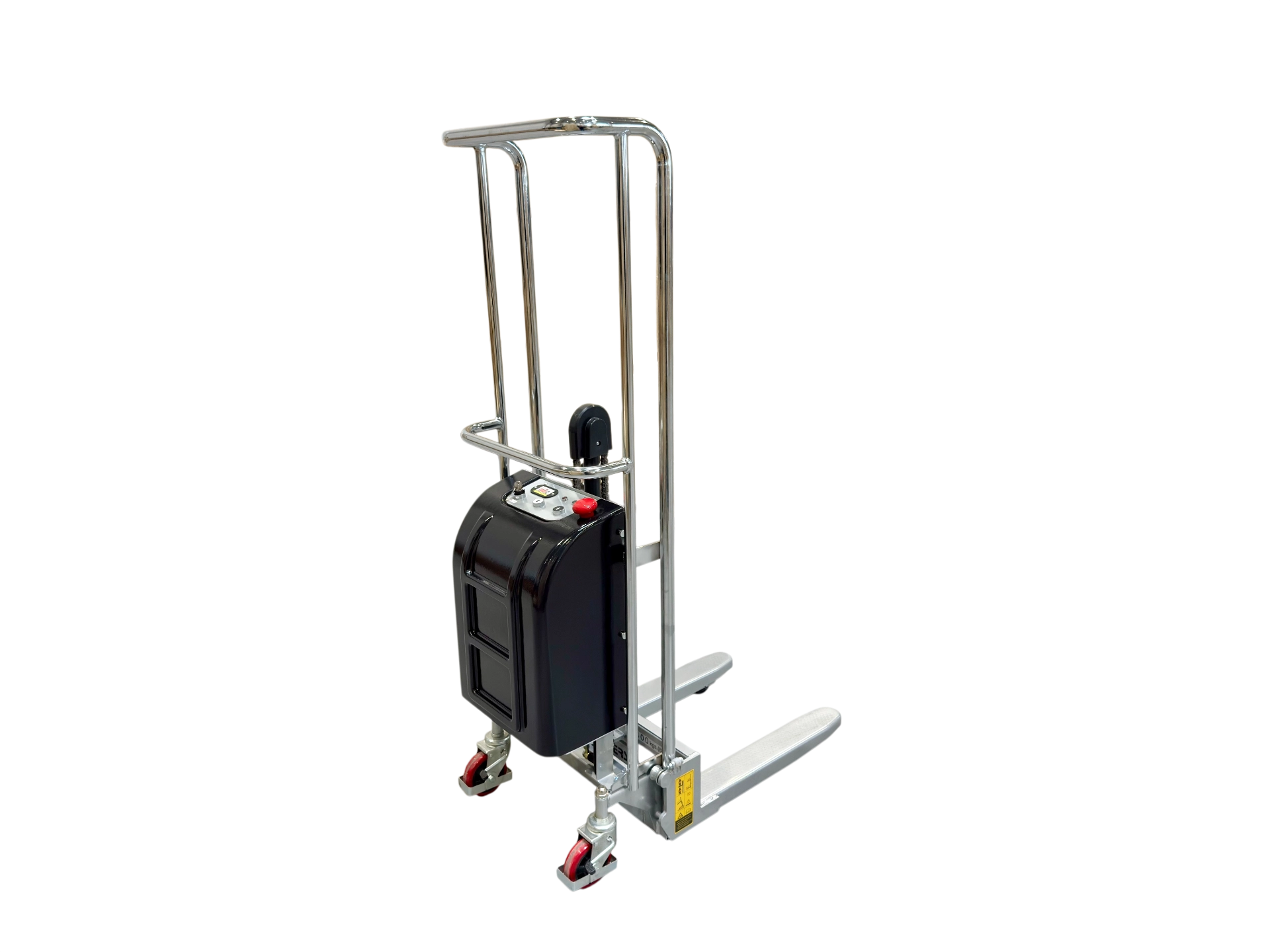

The electric hydraulic mini stacker is equipped with both fixed forks and a loose, chromed platform for multipurpose use. You can handle half size pallets and/or use it as a mobile lifting table. This electric version features an electric pump for effortless lifting, eliminating manual effort.

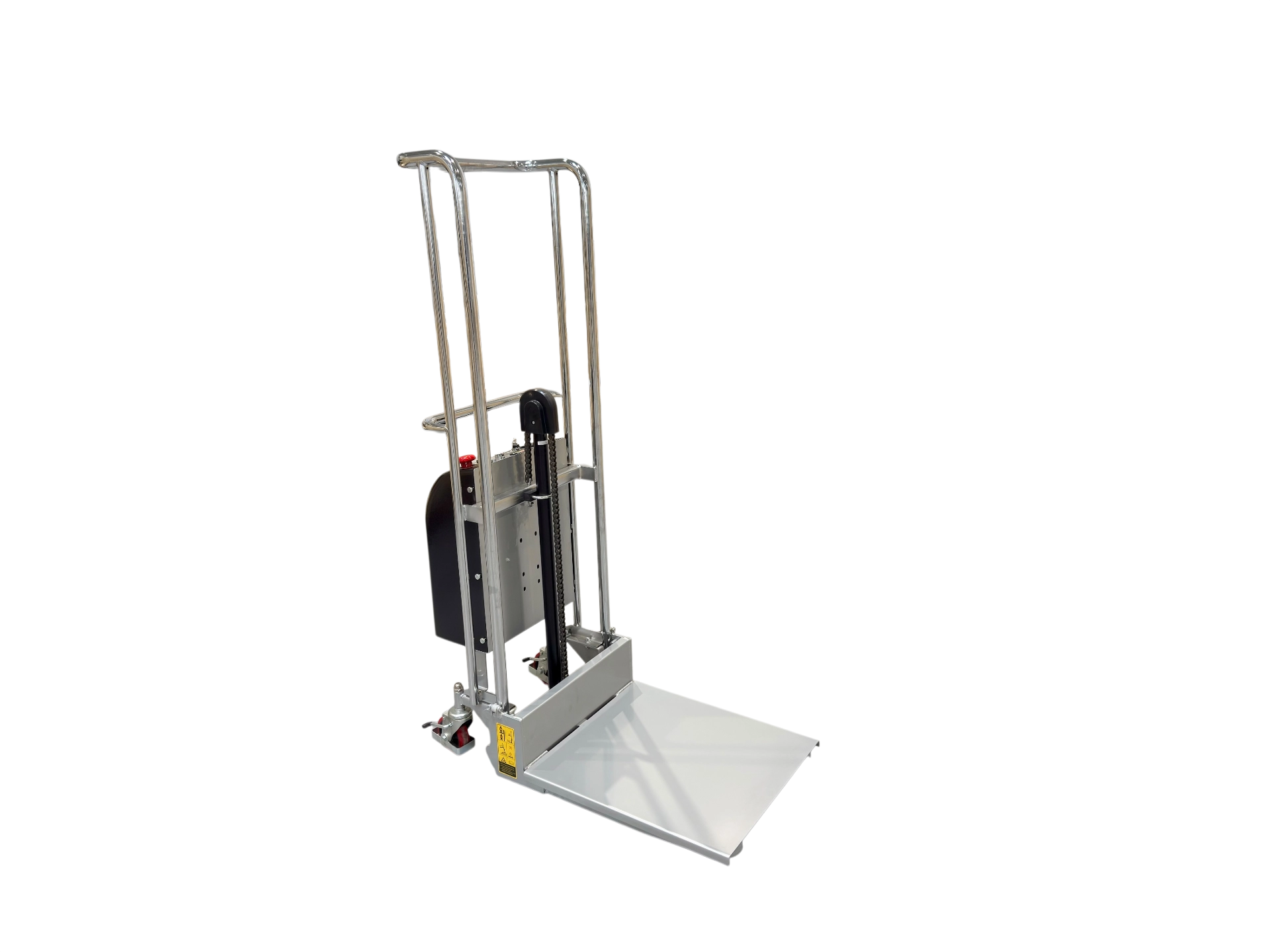

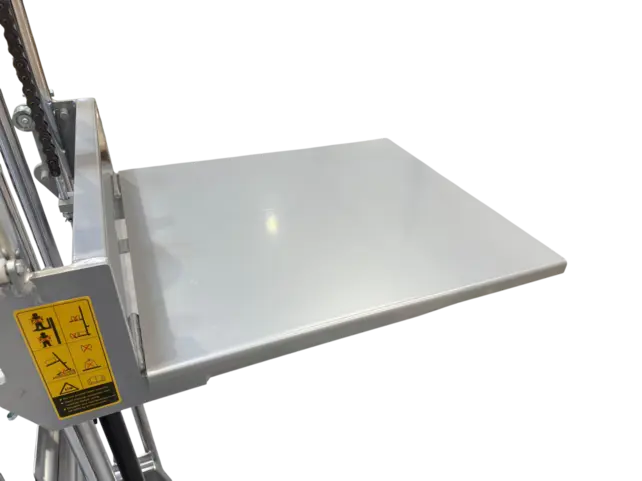

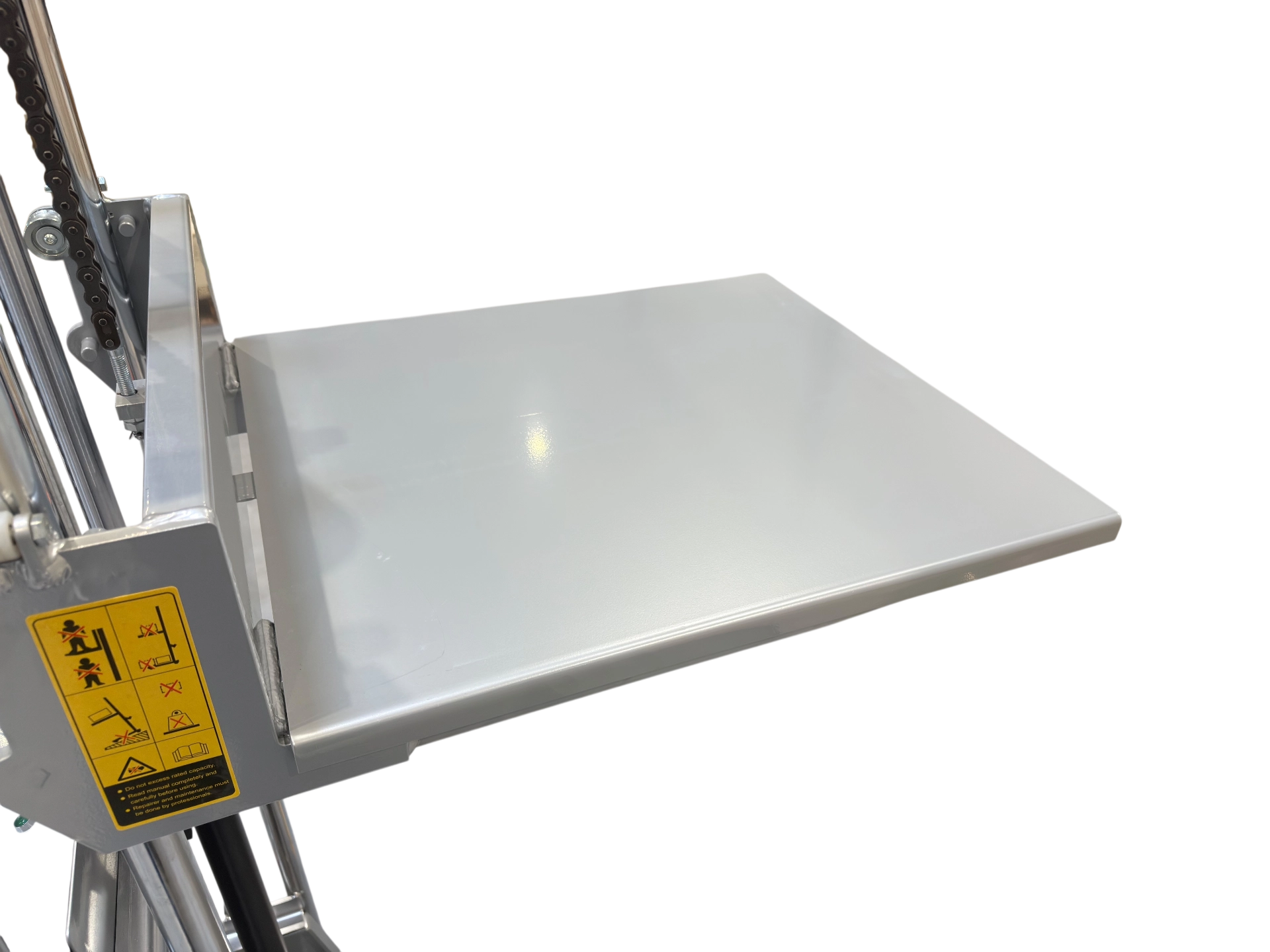

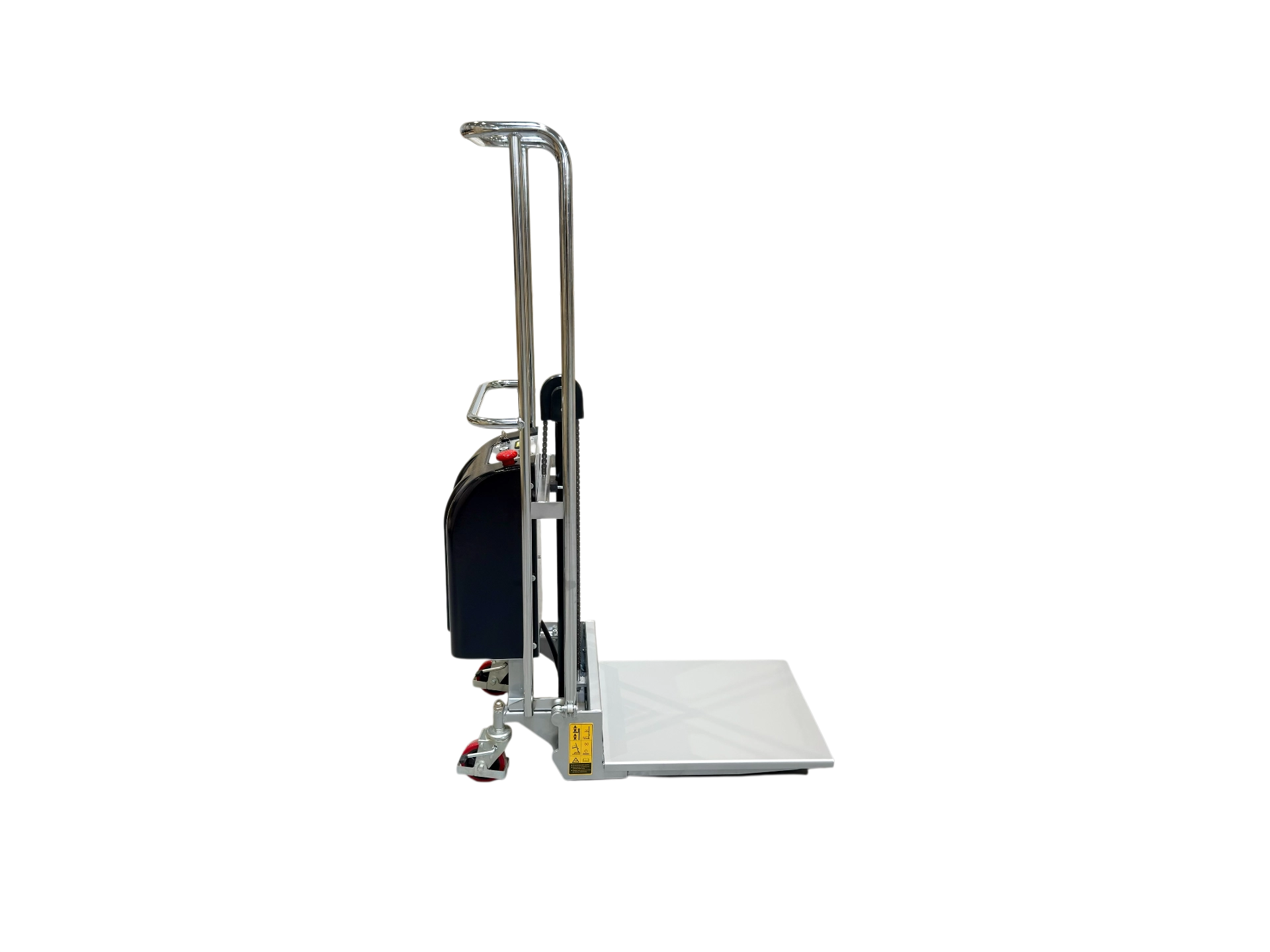

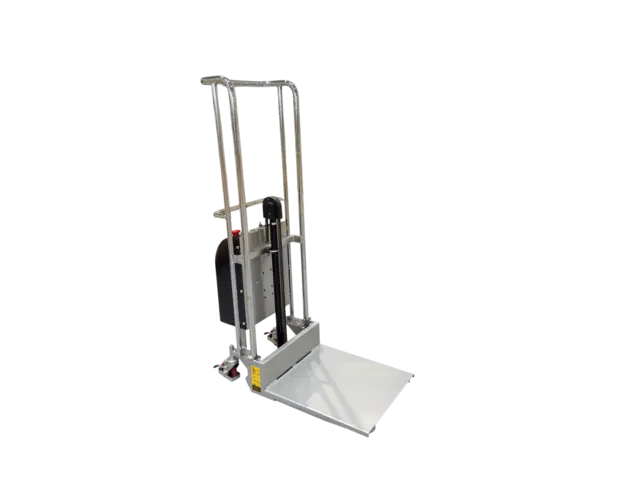

Platform size (LxW): 650x580 mm. Inner measure between supporting legs: 370 mm. Platform in sheet metal is standard.

Key Features

Capacity: 400 kg
Load center: 300 mm
Lift height: 80-1500 mm
Lifting speed: 60 mm/sec (electric)

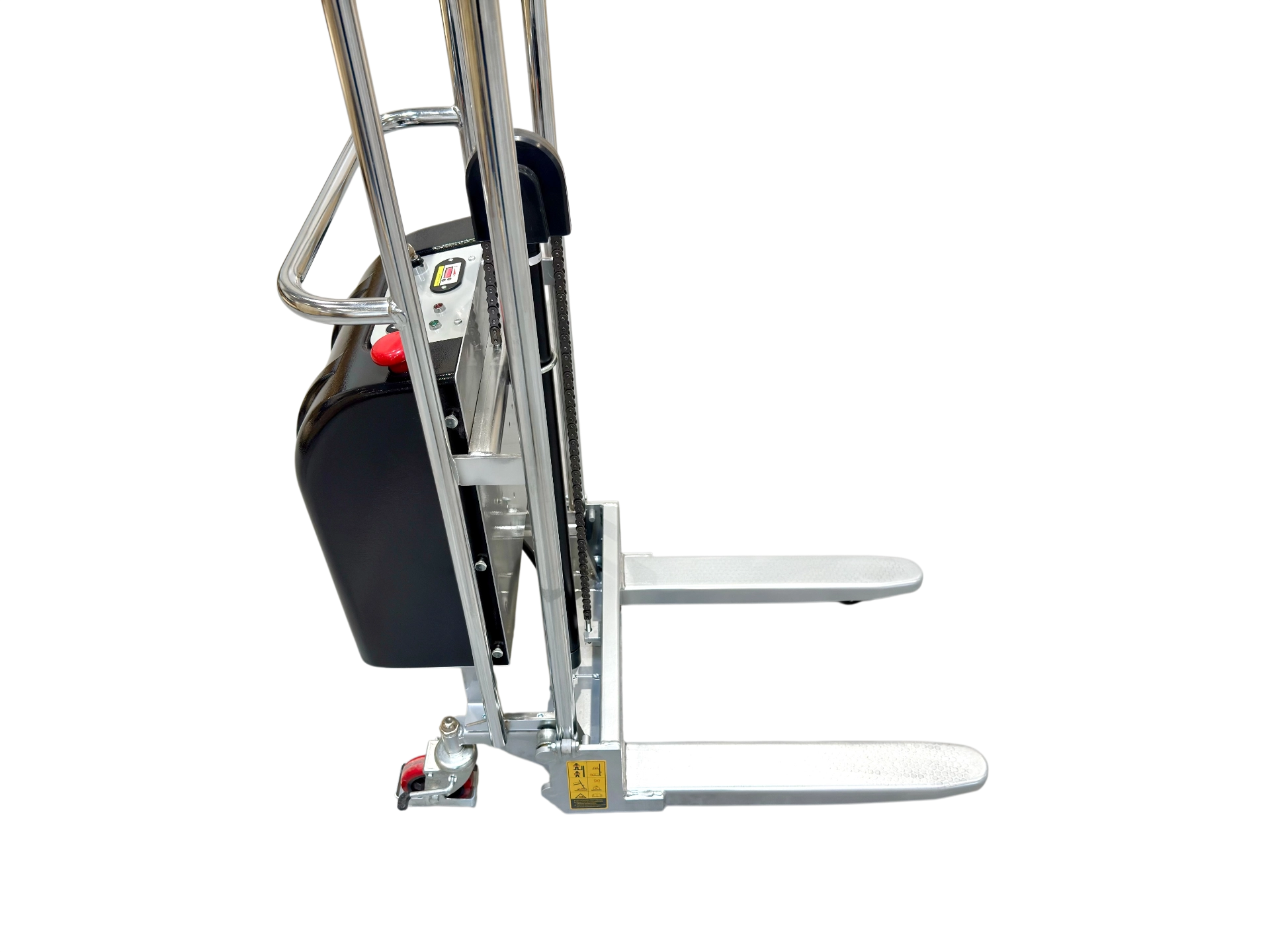

Fork length: 650 mm
Fork width (total/fork): 550/100 mm
Platform size: 650x580 mm
Inner measure between supporting legs: 370 mm
Inner measure between forks: 350 mm

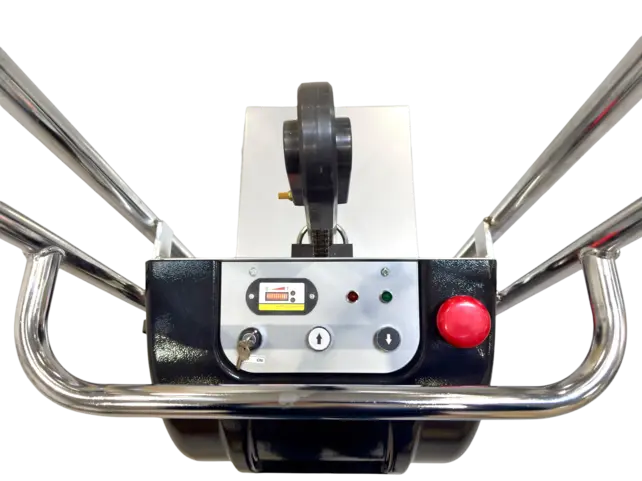

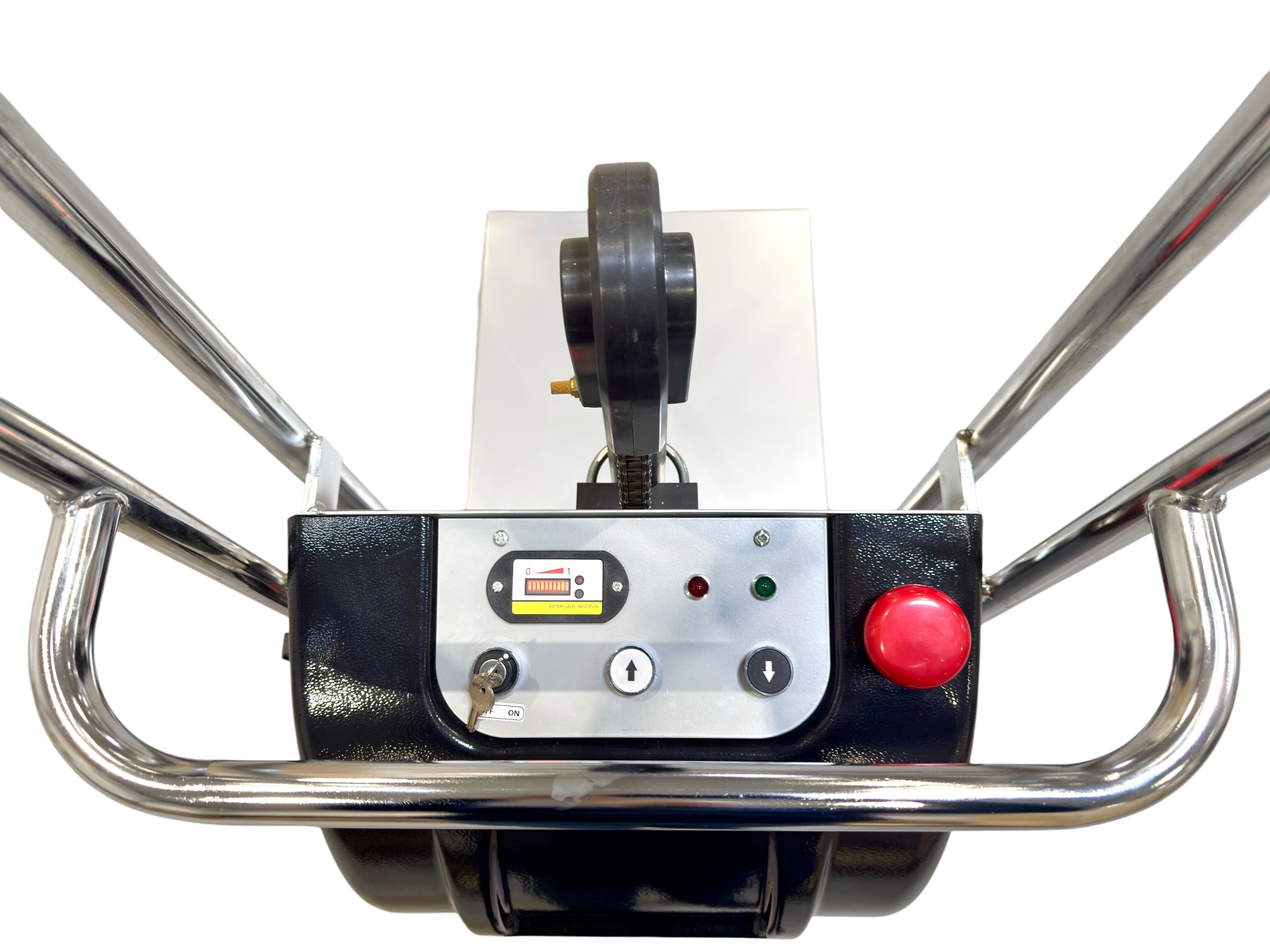

Electric pump operation

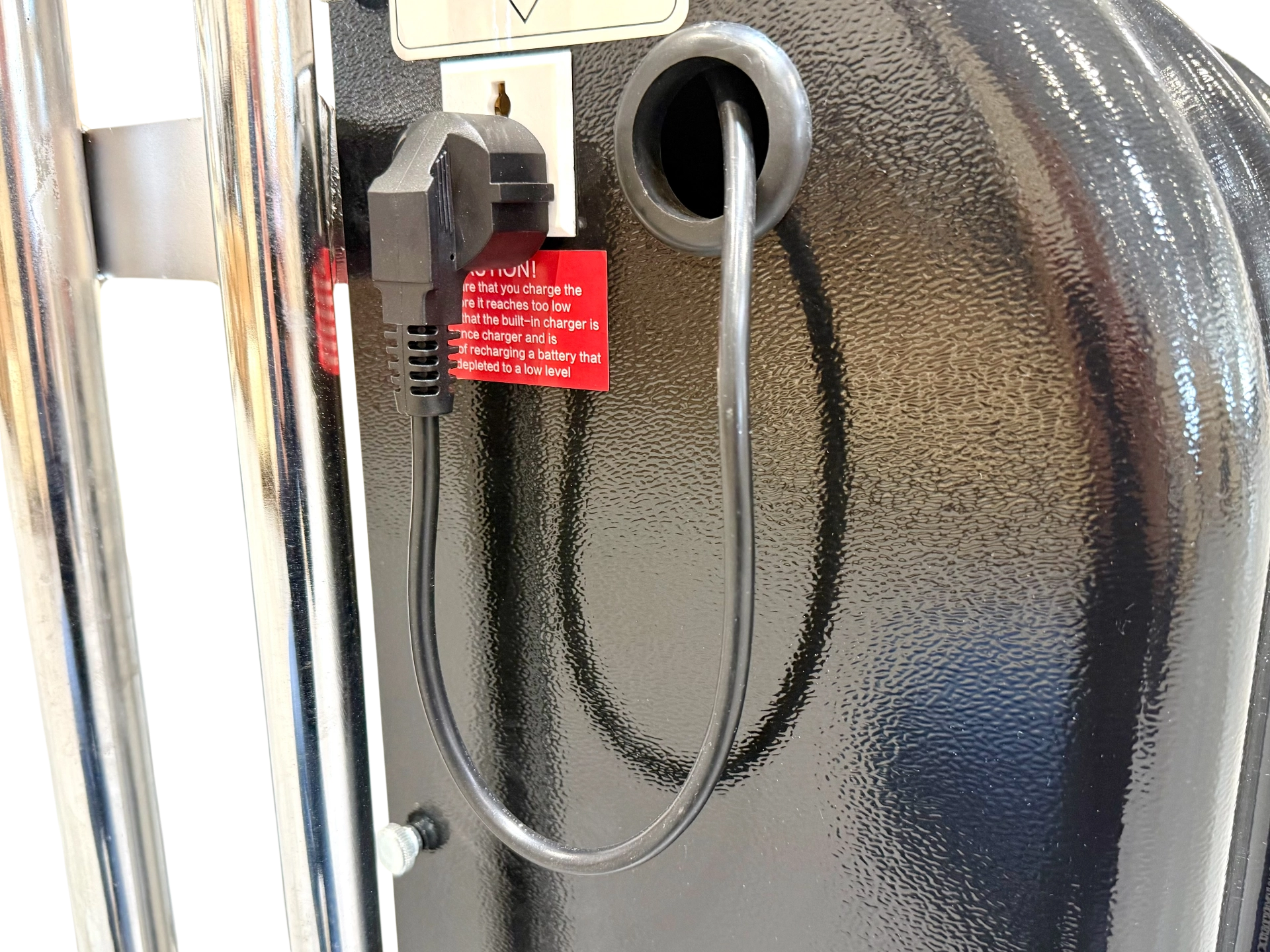

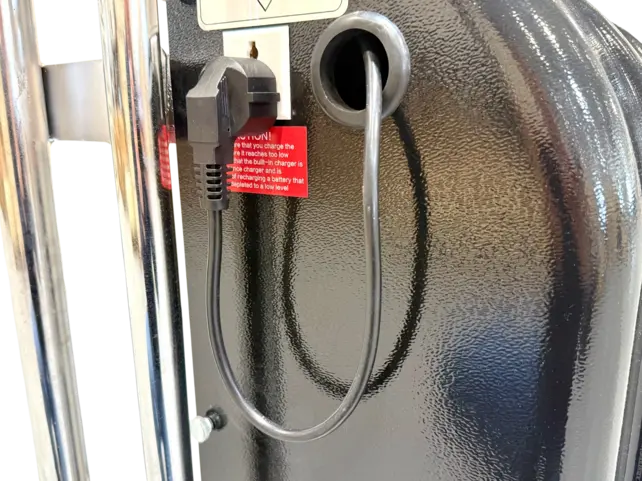

Battery: 74Ah/12V
Chromed platform included

Technical Specifications

Specification	Value
Type	Electric / Foot pump
Capacity (kg)	400
Load center (mm)	300
Lifting height min-max (mm)	80-1500
Lifting speed	60 mm/sec
Fork width total/fork (mm)	550/100
Fork length (mm)	650
Steering / Loading wheel (mm)	125x35/75x20
Fork wheel (mm)	Ø150
Turning radius (mm)	850
Dimensions (LxWxH) (mm)	1100x580x1720
Platform (LxW) (mm)	650x580
Inner measure supporting legs (mm)	370
Inner measure forks (mm)	350
Floor to upper leg (mm)	75
Lift motor (W)	700
Battery (Ah/V)	74/12
Weight (kg)	145
