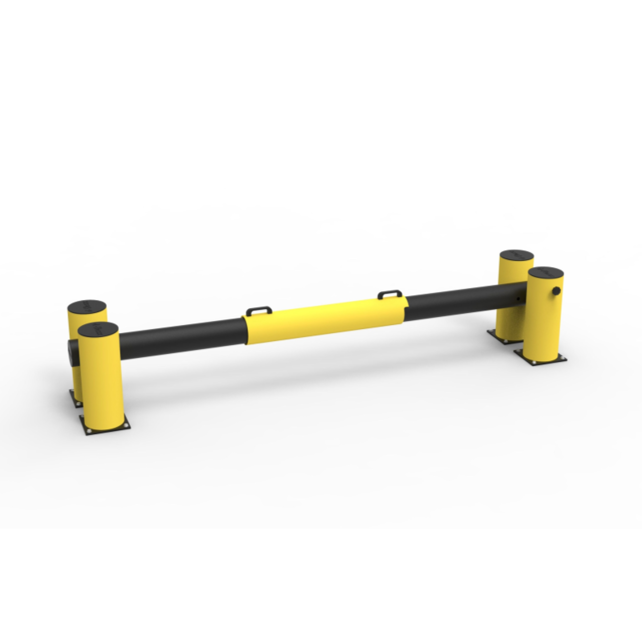

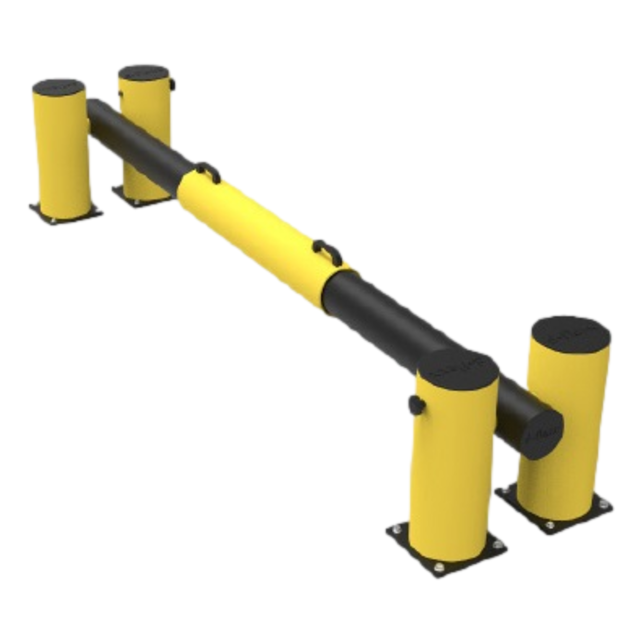

Dock gate adjustable in length 2300 - 3300 mm
Dock gate adjustable in length 2300 - 3300 mm for professional storage, workshop, production and logistics use. Technical information, advice and delivery throughout the Netherlands and Europe.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Loading Dock Safety Gate

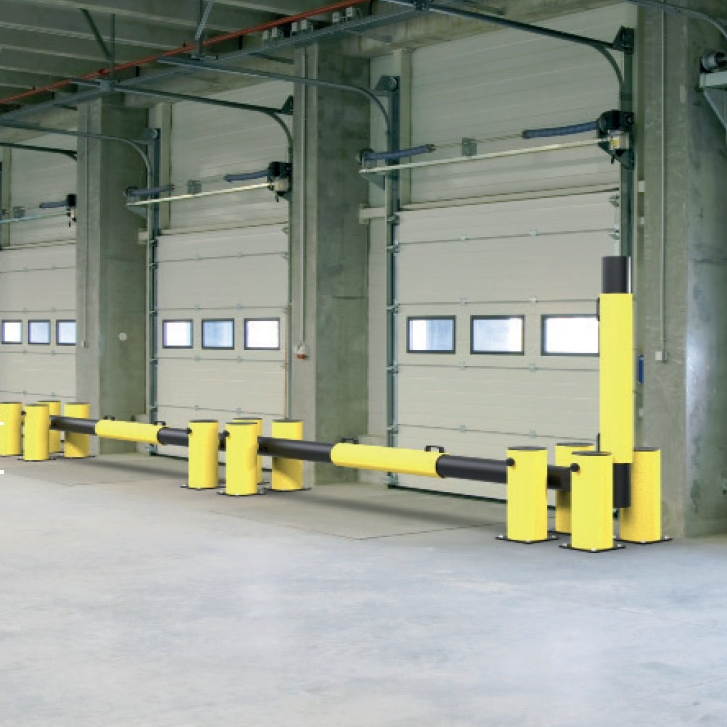

The loading dock gate closes a defined opening beside a loading or warehouse access area. It can be opened and closed by one operator, while the built-in spring assists control of the moving cross tube. Fixed-width and adjustable-width versions allow the opening to be matched to the dock layout.
It has a height of 516 mm and a width of 585 mm.
Key features
- Yellow and black warning colours.
- Built-in spring assists controlled gate operation.
- For indoor and outdoor use.
- Height: 516 mm.
- Width: 585 mm.
- Material: Polyethylene.
- Country of manufacture: Denmark.
Technical specifications
| Specification | Value |
|---|---|
| Brand | Salesbridges |
| Country of manufacture | Denmark |
| Material | Polyethylene |
| Width | 585 mm |
| Height | 516 mm |
| Number of mounting holes | 16 |
Available components and variants
| Product code / SKU | Variant specifications |
|---|---|
| SBDG2300 | Clear opening width: 2300 mm; Overall length: 2777 mm; Net weight: 56.2 kg |
| SBDG2600 | Clear opening width: 2600 mm; Overall length: 3077 mm; Net weight: 58.3 kg |
| SBDGV2330 | Clear opening width: 2300–3300 mm; Overall length: 2777–3777 mm; Net weight: 63.2 kg |
Application and configuration
Use the clear opening width when selecting the gate. The overall installation length is greater than the clear passage, so include the supports and mounting area in the layout.
Delivery
SALESBRIDGES delivers throughout the Netherlands and across Europe. This product is shipped directly from the manufacturer.
Request a quotation
For pricing, availability or a project quotation, contact SALESBRIDGES. Please include the product code, required quantity, delivery address and any configuration requirements.
Email: [email protected]
Telephone: +31652883848
