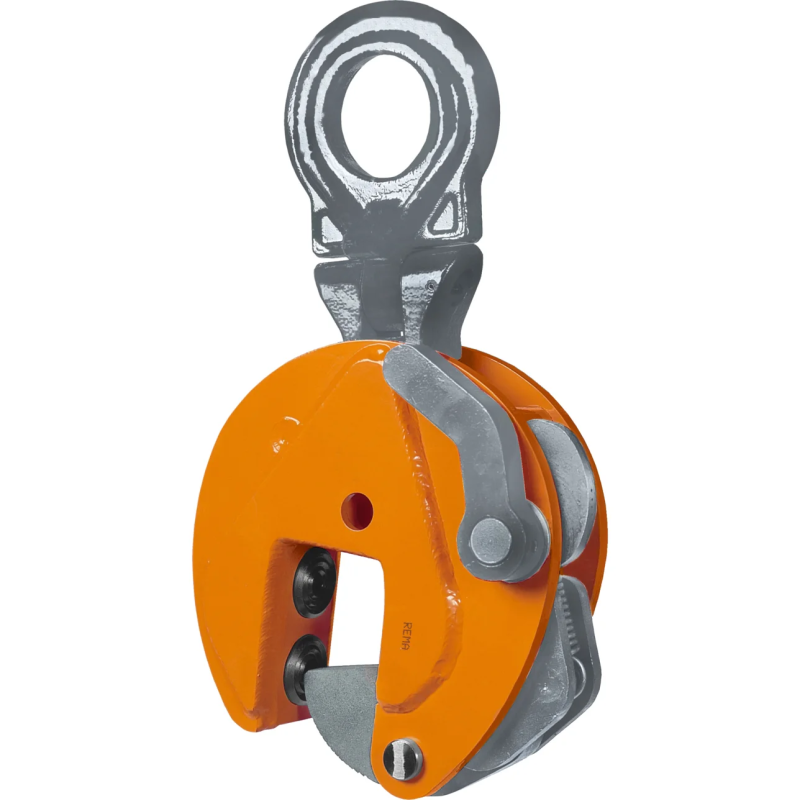

CBU Universal clamps for Holland profiles - 3000-5000 kg

CBU Universal clamps for Holland profiles - 3000-5000 kg

Universal clamps for Holland profiles CBU with 3000-5000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.

Key features

• Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
• Factory-tested lifting equipment with a safety mechanism where applicable.
• Robust professional construction for repeated industrial use.
• Select the correct model for the material, load and gripping range.
• Use only in accordance with the operating manual and inspect visually before every use.

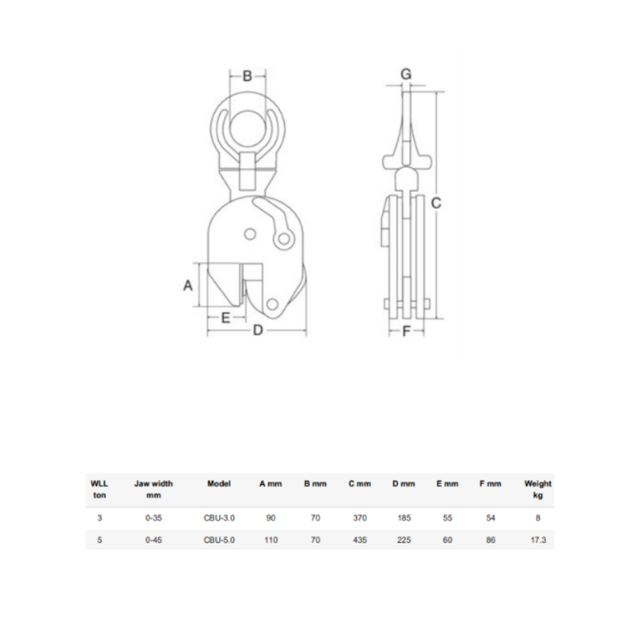

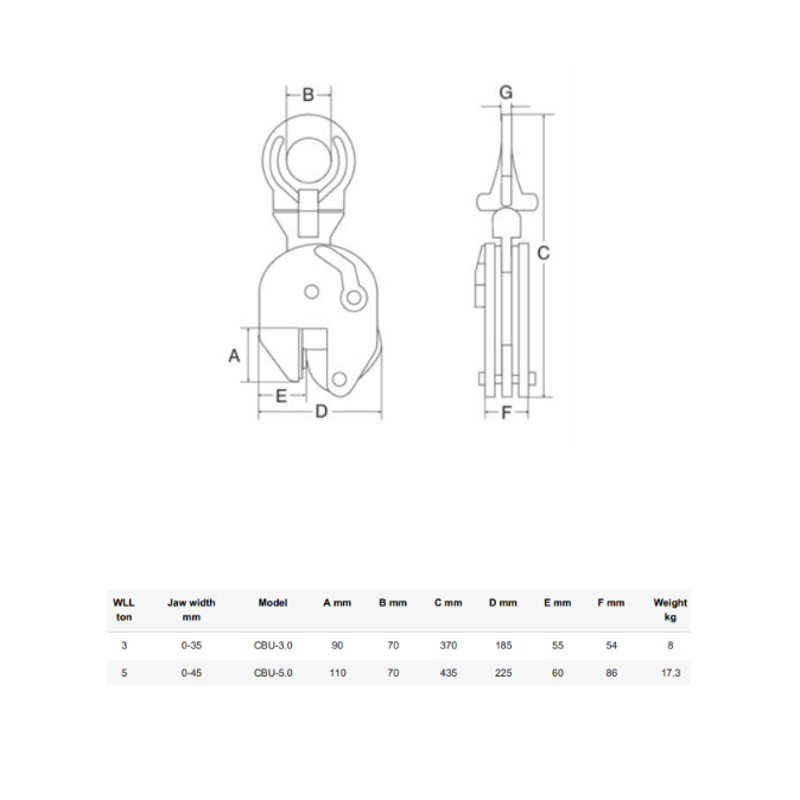

Technical specifications

Application

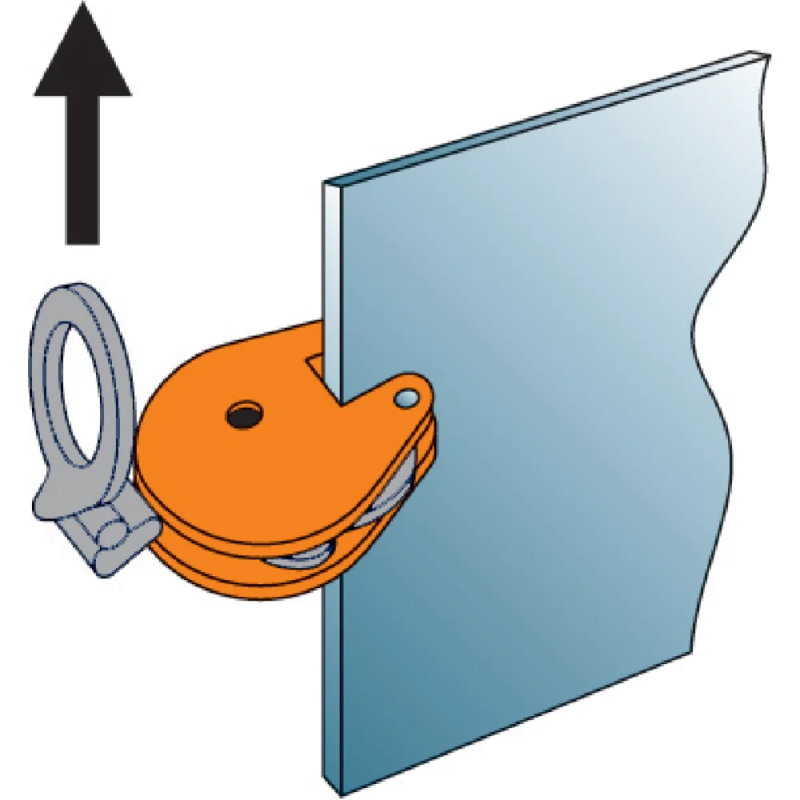

• Vertical lifting: For vertical lifting, handling and transportation of Holland Profile (HP) shipbuilding structures from all positions.

• Jaw opening: Available from 0 to 45 mm.

• Higher WLL: Available upon request.

• Longer sections: Should be lifted using a spreader beam fitted with multiple clamps.

• Marking: CE-marked according to the standard.

• Standards: EN 13155, EN 12100

• Warning: Minimum WLL is 10% of maximum WLL.

• Safety factor: 5
