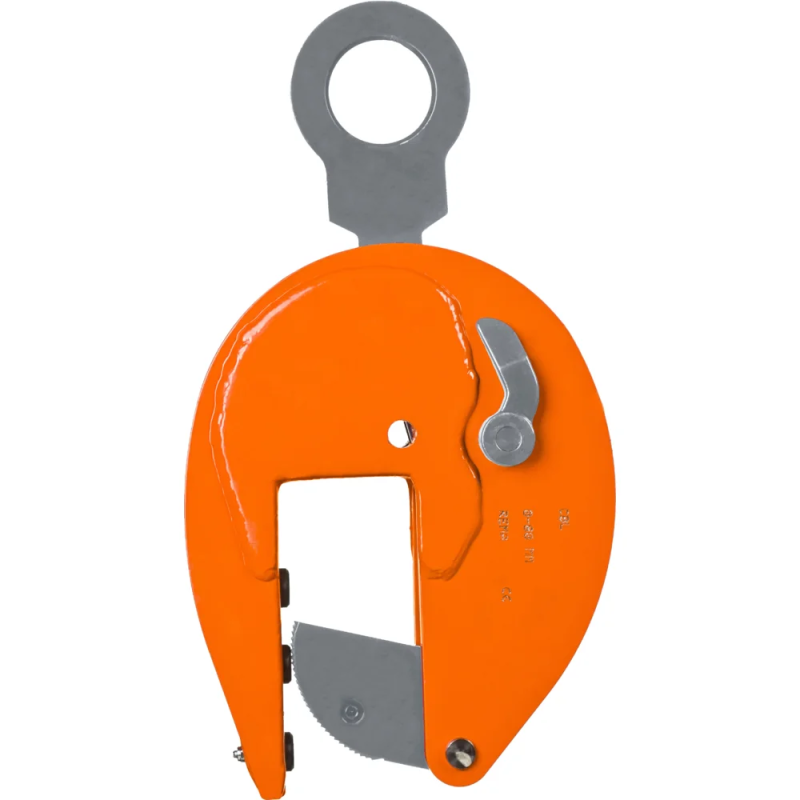

CBL Large-jaw bulb profile lifting clamp - 1500 kg

CBL Large-jaw bulb profile lifting clamp - 1500 kg

Large-jaw bulb profile lifting clamp CBL with 1500 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.

Key features

• Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
• Factory-tested lifting equipment with a safety mechanism where applicable.
• Robust professional construction for repeated industrial use.
• Select the correct model for the material, load and gripping range.
• Use only in accordance with the operating manual and inspect visually before every use.

Technical specifications

Properties

• Three pivots: Standard with 3 pivots for extra powerful clamping force.

• Locking mechanism: The clamp is locked in both the closed and open positions.

• Safety mechanism: Always equipped with a safety mechanism to prevent the clamp from slipping when lifting force is applied and when the load is being lowered.

Application

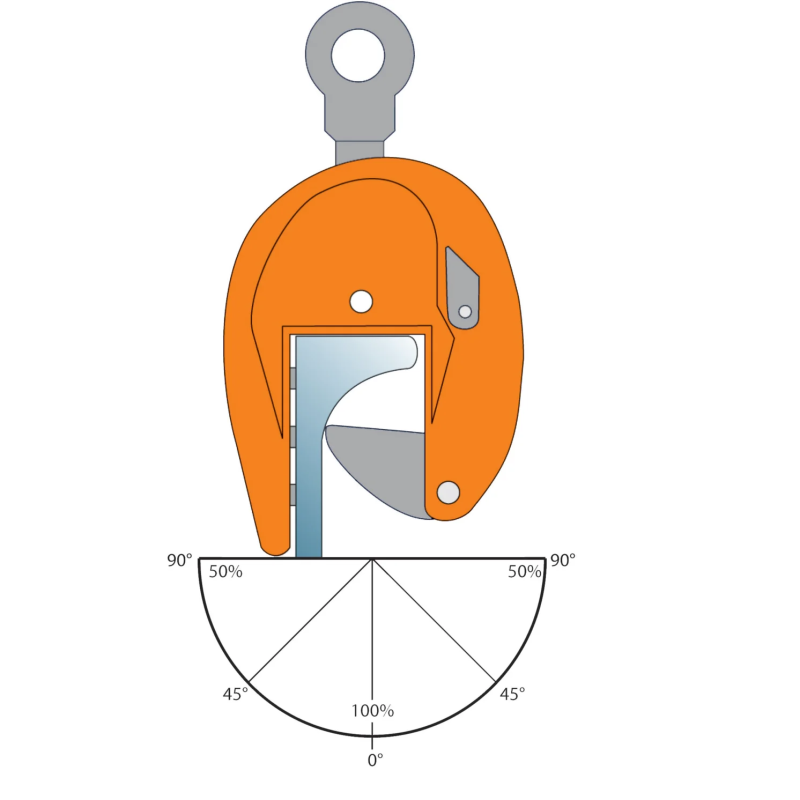

• Vertical lifting: For vertical lifting, handling and transportation of Holland Profile (HP) shipbuilding structures, steel plates and structures.

• Adjustable jaw opening: Available from 0 to 155 mm.

• Longer sections: Should be lifted using a spreader beam fitted with multiple clamps.

• Marking: CE-marked according to the standard.

• Standards: EN 12100, EN 13155

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
