15-min Lithium-Ion Battery Safety Cabinet (Fire-Resistant Counter Cabinet, 2 Doors)

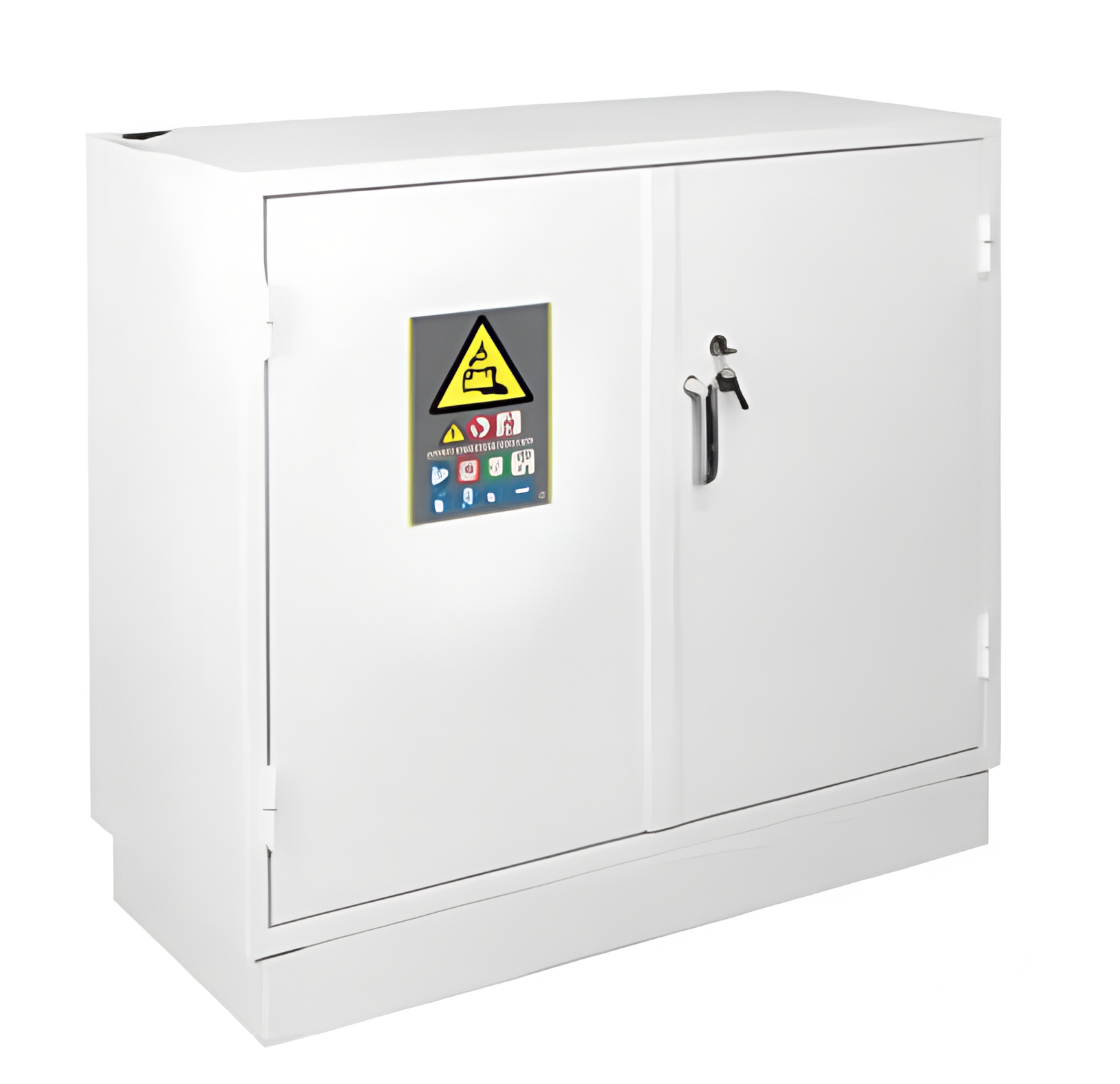

The S804+LIA1 is a fire-resistant, double-walled counter cabinet designed for the safer storage of lithium-ion batteries in workplaces such as workshops, maintenance areas, technical rooms, and industrial environments. It is pre-equipped with a perforated shelf and an automatic fire extinguisher module to help reduce risk in the event of overheating or thermal incident scenarios.

This model is part of an insulated safety cabinet range built with A1-classified non-combustible insulation and an EI 15 min (type A1) fire-stop construction, supporting improved on-site protection and containment.

Key benefits for Li-ion battery storage

• Fire-resistant insulated construction (EI 15 min type A1)
• Double-walled steel cabinet for added robustness
• Pre-equipped for quick deployment (shelf + automatic extinguisher)
• Ventilation ports for connection to external ventilation/filtration
• Secure access with two-point locking and key lock
• Adjustable perforated shelving for airflow and flexible storage layout

Pre-equipped configuration (included)

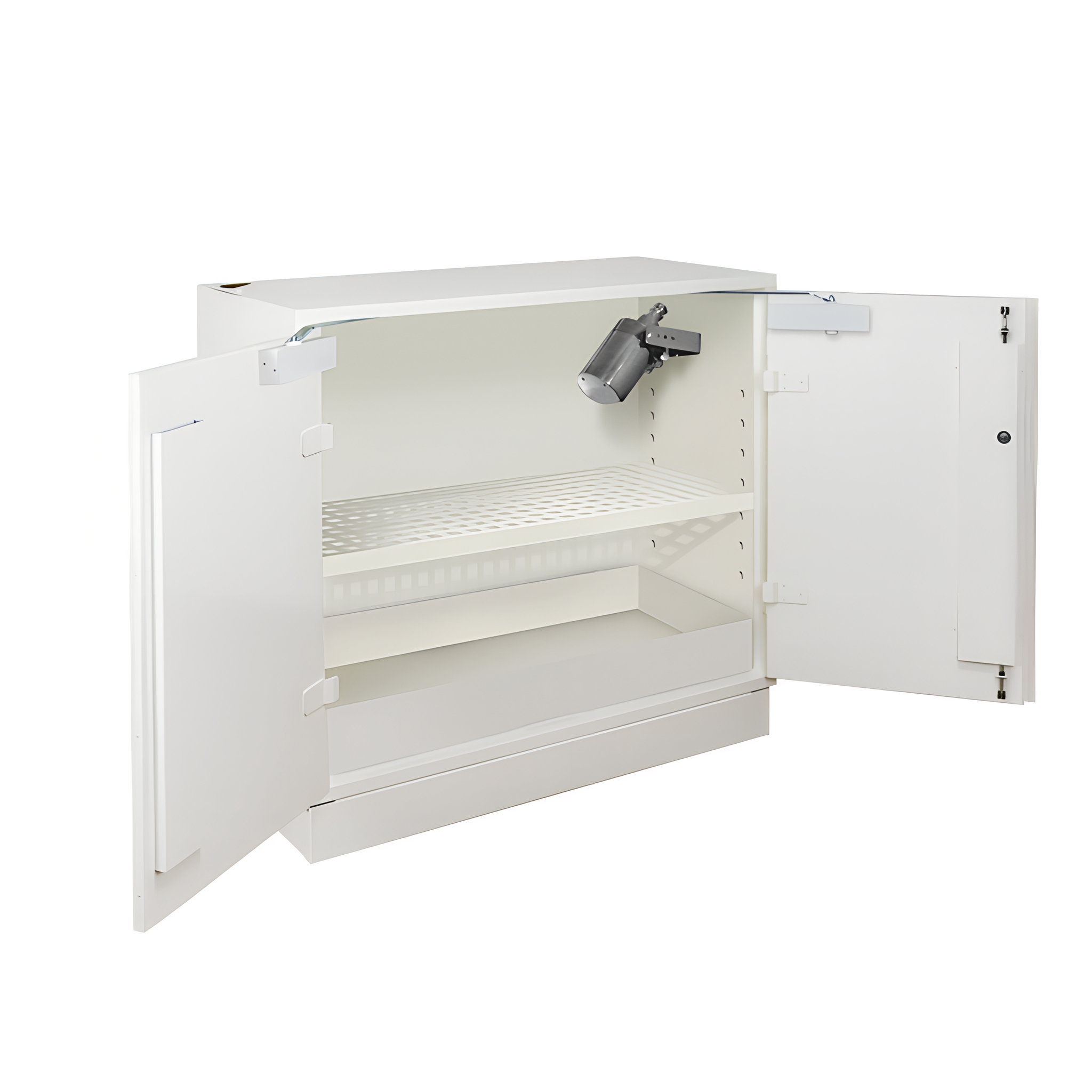

• 1 × E04LI perforated shelf (450 mm deep)
• 1 × EX100LI fire extinguisher, automatically triggered at 79°C via special lithium thermal bulb

Compliance & safety standards (range specifications)

• Non-flammable insulating panels, A1 classification (NF EN ISO 1182)

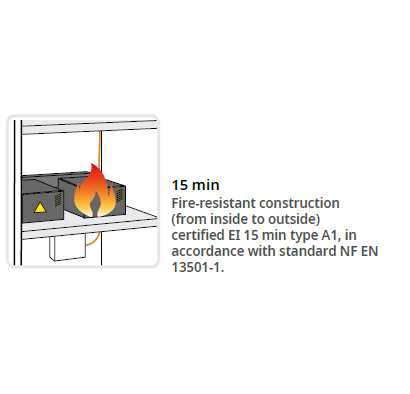

• Fire-stop construction certified EI 15 min type A1 (NF EN 13501-1)
• CE certified; electrical assembly complies with Low Voltage Directive 2014/35/EU (for applicable equipped configurations)
• Safety pictograms compliant with ISO 3864, ISO 7010 and Directive 92/58/EEC

Ventilation (important for Li-ion risk reduction)

The cabinet includes ventilation ports so it can be connected to a ventilation system. Forced ventilation is strongly recommended to help prevent internal heat build-up or vapour stagnation (e.g., in case of electrolyte leakage). Connection can be made to an external outlet or to a ventilation/filtration box.

Technical specifications (S804+LIA1)

Popular accessories (optional)

Depending on your use case (storage only vs. charging, monitoring, spill control), SALESBRIDGES can supply compatible options such as:

• Removable drip tray (containment sump) for the bottom
• Cable passage with fireproof cable gland (for charging setups)

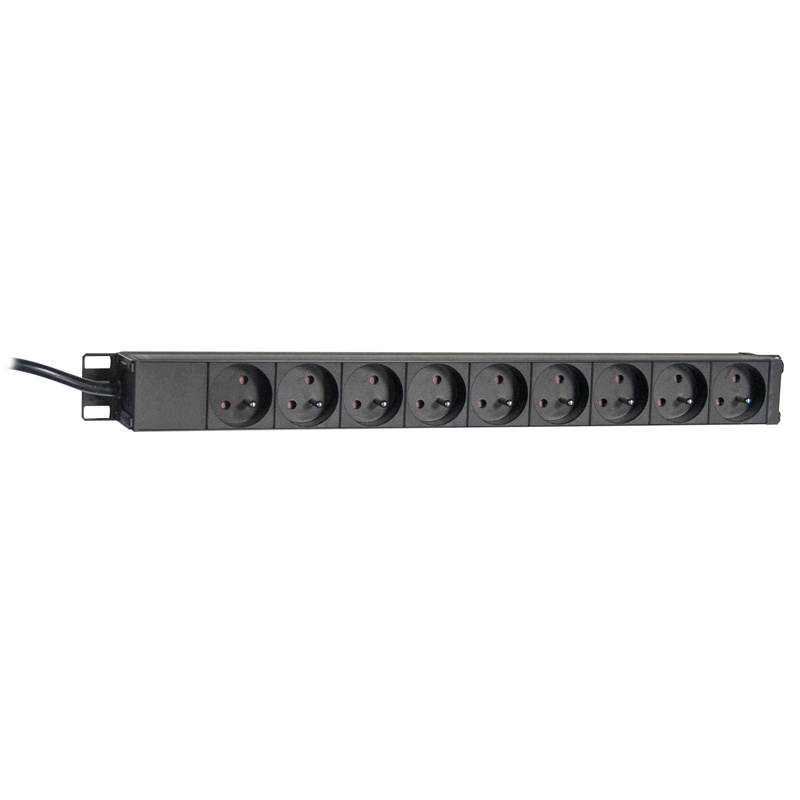

• Socket racks for battery charging inside the cabinet
• Wi-Fi smoke detector for mobile alerts in case of smoke or heat build-up

Delivery (Netherlands, Belgium & Europe)

SALESBRIDGES supports delivery of the S804+LIA1 in the Netherlands and Belgium, and can also arrange shipment across Europe. Ask for current lead time and transport options.

RFQ / Quote request

Contact SALESBRIDGES for price, lead time, options and delivery setup:
[email protected]
+31652883848
