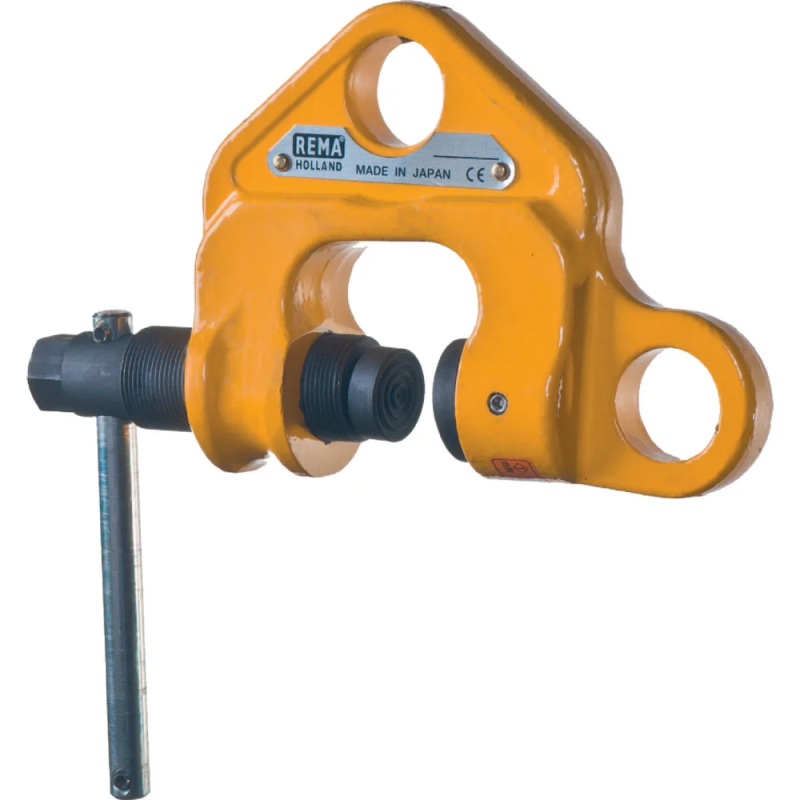

WF Universal screw clamps - 500-5000 kg

WF Universal screw clamps - 500-5000 kg

Universal screw clamps WF with 500-5000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.

Key features

• Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
• Factory-tested lifting equipment with a safety mechanism where applicable.
• Robust professional construction for repeated industrial use.
• Select the correct model for the material, load and gripping range.
• Use only in accordance with the operating manual and inspect visually before every use.

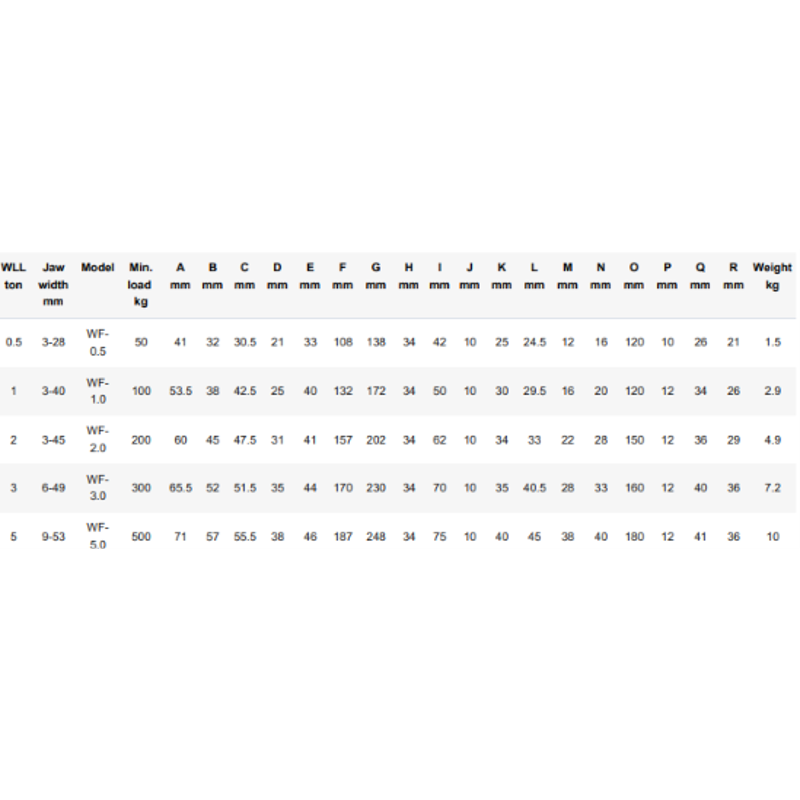

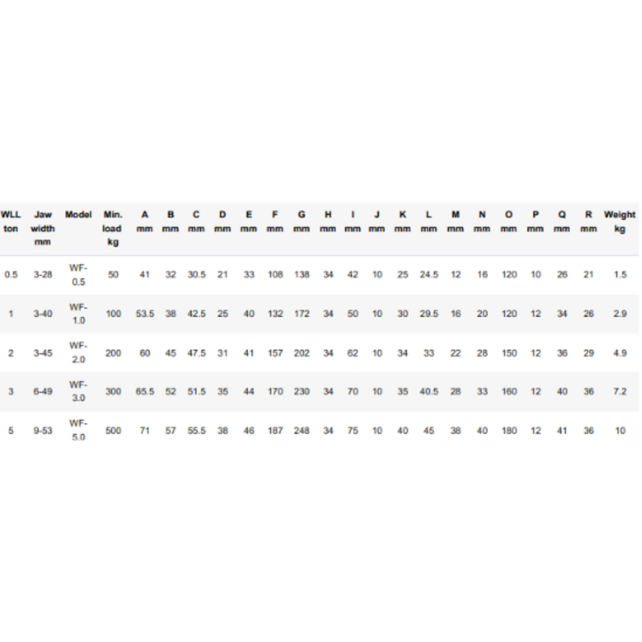

Technical specifications

Properties

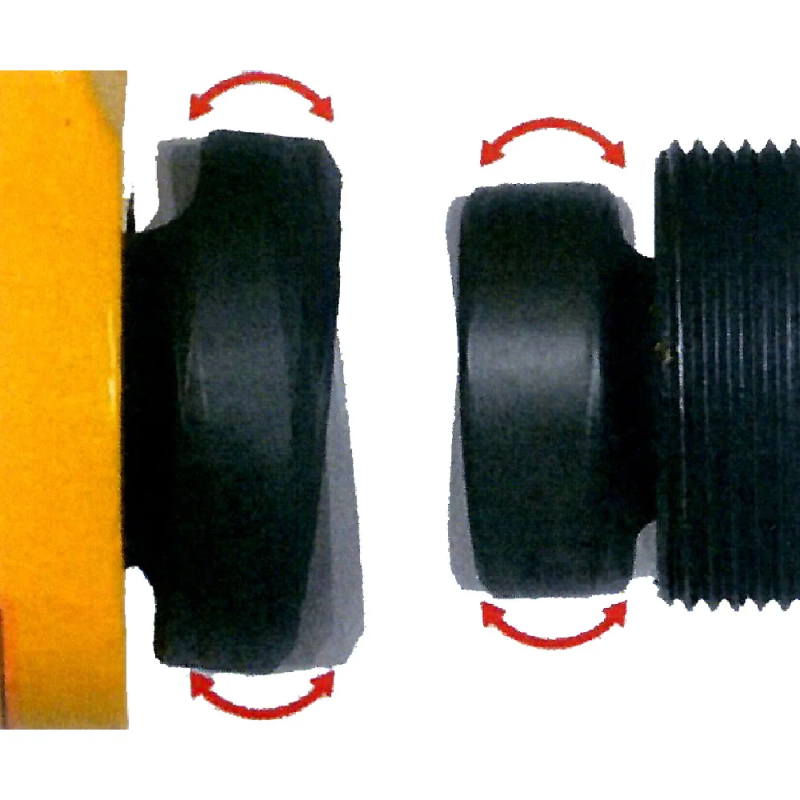

• Double round pivot locking: Provides stronger clamping force and safe operation.

• Two attachment holes: Allow work to be carried out in all directions.

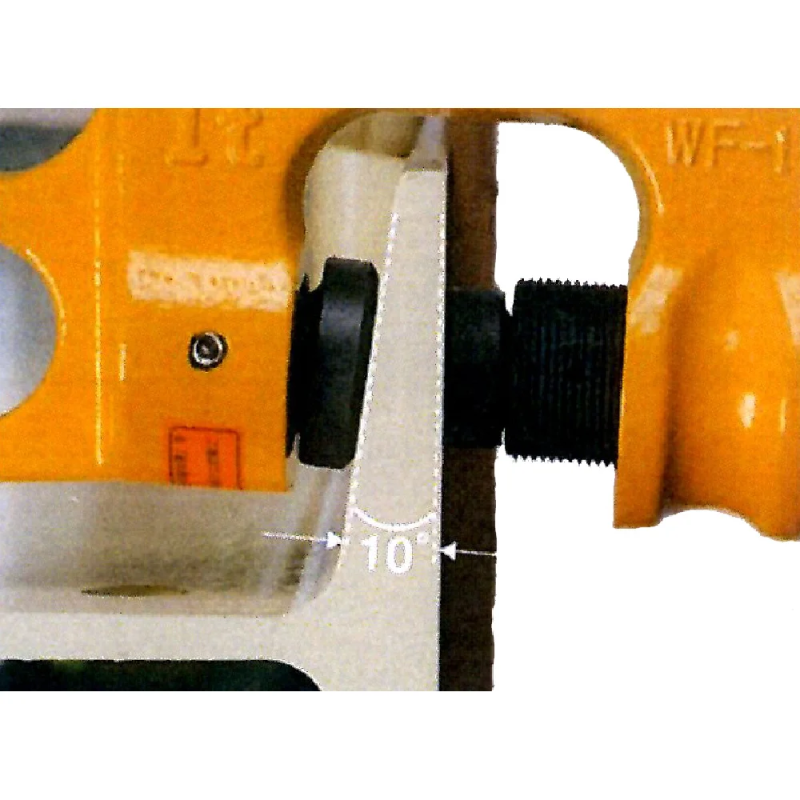

• Inclined loads: Suitable for hoisting inclined loads such as I-beams.

• Fine adjustment: Fine-adjusting screw thread.

• Surface protection: Preservation powder coating.

• Rust protection: The pivots and screw are specially treated to prevent rusting.

Application

• Hoisting and transport: Suitable for steel materials, including H-beams, I-beams, steel plates, tubes, angle profiles, steel posts, steel beams, pillars, welded objects and other workpieces.

• Lowering: Allows workpieces to be lowered easily with any hoisting equipment.

• Dragging: Suitable for dragging steel plates to position them on the ground.

• Marking: CE-marked according to the standard.

• Standards: EN 12100, EN 13155

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For technical advice, availability or an RFQ, contact [email protected] or +31 6 52883848.
