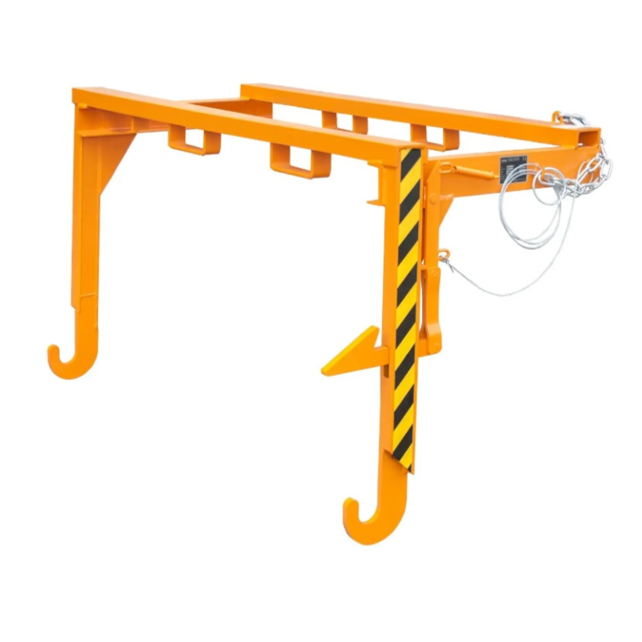

Tilting Traverse BST for stacking tippers with forklift

Tilting Traverse for stacking tippers with forklift BST Type

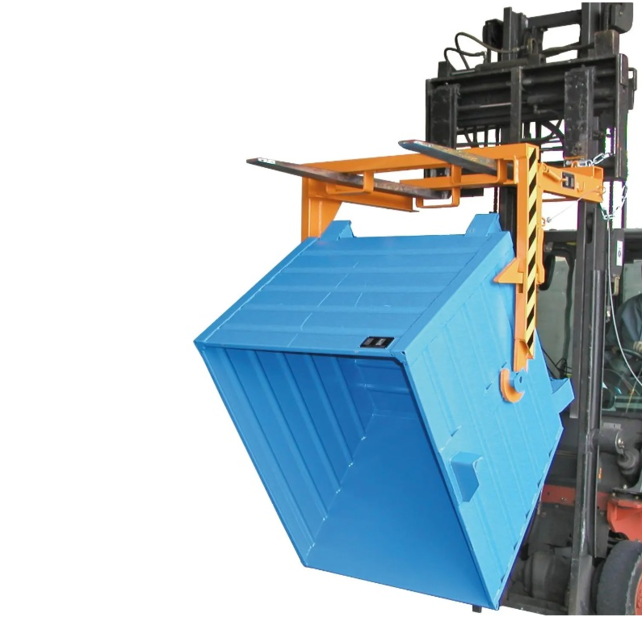

Traverses for emptying stacking tippers containers. It can be emptied at any height by cable operated from the driver‘s seat can be secured to prevent slipping. 6 different sizes.

Designed with fork pockets for pick-up by a forklift

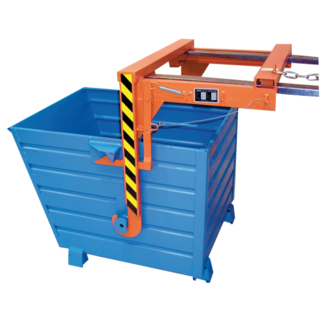

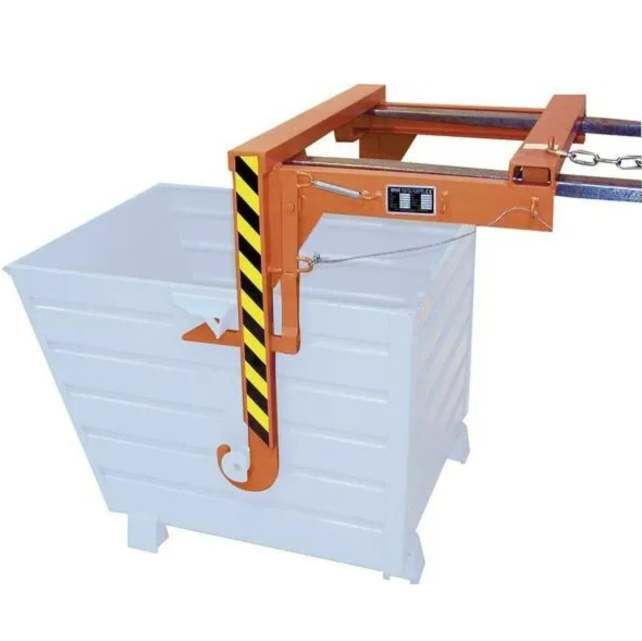

Pick-up arm engages with cones on the Stacking Tipper containers.

Available in 6 different sizes for 6 different volumes of containers.
Price is only for the traverse. Containers are bought separately.

• Traverse for 300L volume containers

  P/N: SBTCBST30

  (LxWxH) mm: 945 x 730 x 845

  Net Weight: 71Kg

  Load capacity 500Kg

• Traverse for 550L volume containers

  P/N: SBTCBST55

  (LxWxH) mm: 945 x 930 x 980

  Net Weight: 79Kg

  Load capacity 1000Kg

• Traverse for 700L volume containers

  P/N: SBTCBST70

  (LxWxH) mm: 945 x 930 x 980

  Net Weight: 79Kg

  Load capacity 1500Kg

• Traverse for 900L volume containers

  P/N: SBTCBST90

  (LxWxH) mm: 945 x 1130 x 980

  Net Weight: 85Kg

  Load capacity 2000Kg

• Traverse for 1500L volume containers

  P/N: SBTCBST150

  (LxWxH) mm: 940 x 1630 x 1085

  Net Weight: 148Kg

  Load capacity 2000Kg

• Traverse for 2000L volume containers

  P/N: SBTCBST200

  (LxWxH) mm: 940 x 2130 x 1085

  Net Weight: 164Kg

  Load capacity 2000Kg

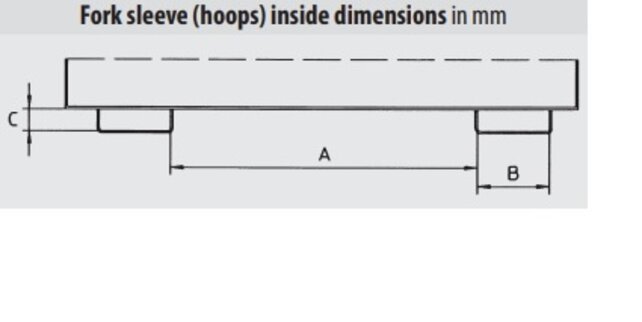

Pockets size dimensions (mm)

A- 300L: 110mm - 550 & 700L: 250mm - 900 & 1500L: 450mm - 2000L: 590mm

B- 200

C- 80

Paint finishing color: ORANGE, bLUE, RED, GREY, GREEN
