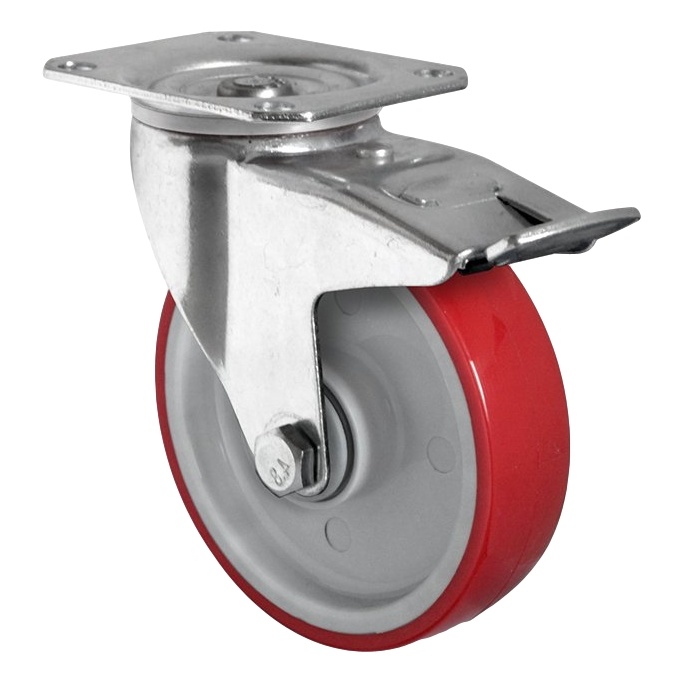

CASCOO Swivel wheel with brake 200mm 350kg PU red
Swivel wheel with brake 200mm 350kg PU red
€0,00 Incl. tax
CASCOO

Swivel wheel with brake 200mm 350kg PU red

Price on request

Swivel wheel with plate mounting, with brake, PU version, 200 mm wheel diameter and 350 kg carrying capacity per wheel.

In stock
3-5 days
Quantity
- +
Product description

Swivel wheel with brake

200mm 350kg

PU red



Specification

  • Wheel material: PU
  • Wheel diameter: 200 mm
  • Tread width: 46 mm
  • Hub width: 59 mm
  • Load capacity: 350 kg
  • Dimensions mounting plate: 135x110mm
  • Distance bolt holes: 105x84/76mm
  • Bolt size: M12
  • Plate thickness: 4.0 mm
  • Total height: 235 mm
  • Bearings: roller bearing
  • Housing surface: zinc blue
  • Temperature: - 40 to + 80 ° C
  • Standard: EN 12532



Swivel castor with brake with a diameter of 200 mm and a load capacity of 350 kg. This wheel is made of PU and suitable for many applications. It is especially suitable for indoor spaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!




PU wheels are tear and wear resistant, do not leave marks on the floors and are also quieter than other wheels. For uneven floors, thresholds, tiles or, for example, more sound insulation, it is best to choose PU or Elastic Rubber wheels.




Do you need advice? Contact us immediately via email [email protected] or telephone +31652883848

Product information
Brand CASCOO
Article code SBWH200-01ZRPU1
SKU SBWH200-01ZRPU1
EAN 9507828458750
