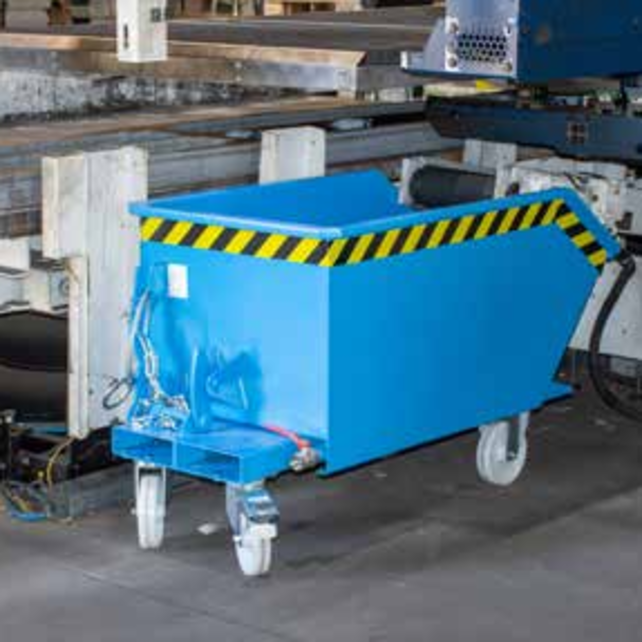

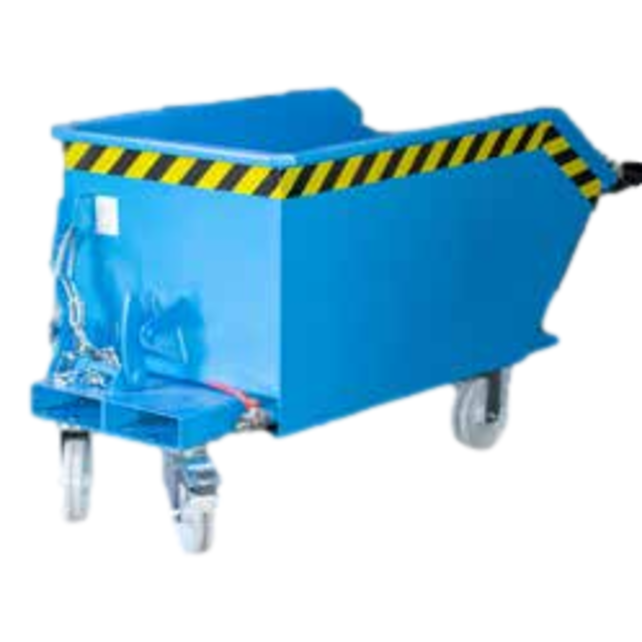

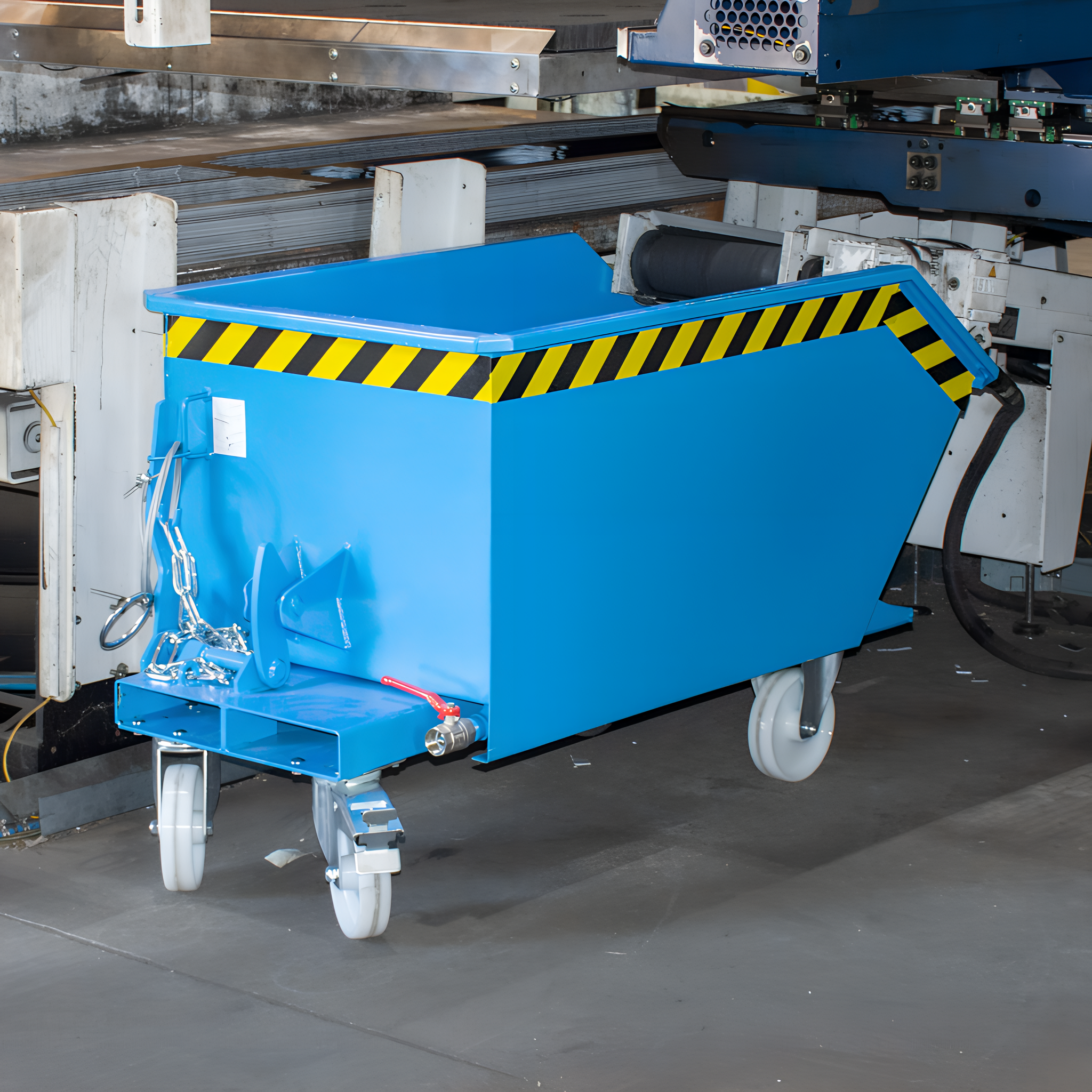

Swarf Tipper Container GU-E model with drain tap and sieve insert

Product description

BAUER GU-E Swarf Tilting Container 300–2000L with Drain Cock

The BAUER GU-E Swarf Tilting Container is specifically designed to separate liquids from solids and collect them, making it particularly suitable for swarf and machining waste generated in metalworking and industrial production environments.

A key feature of the GU-E is its perforated corner sieve combined with a 1-inch drain cock. This arrangement allows liquids to separate from the collected solid material and subsequently be drained from the container. The container itself is welded oil- and watertight.

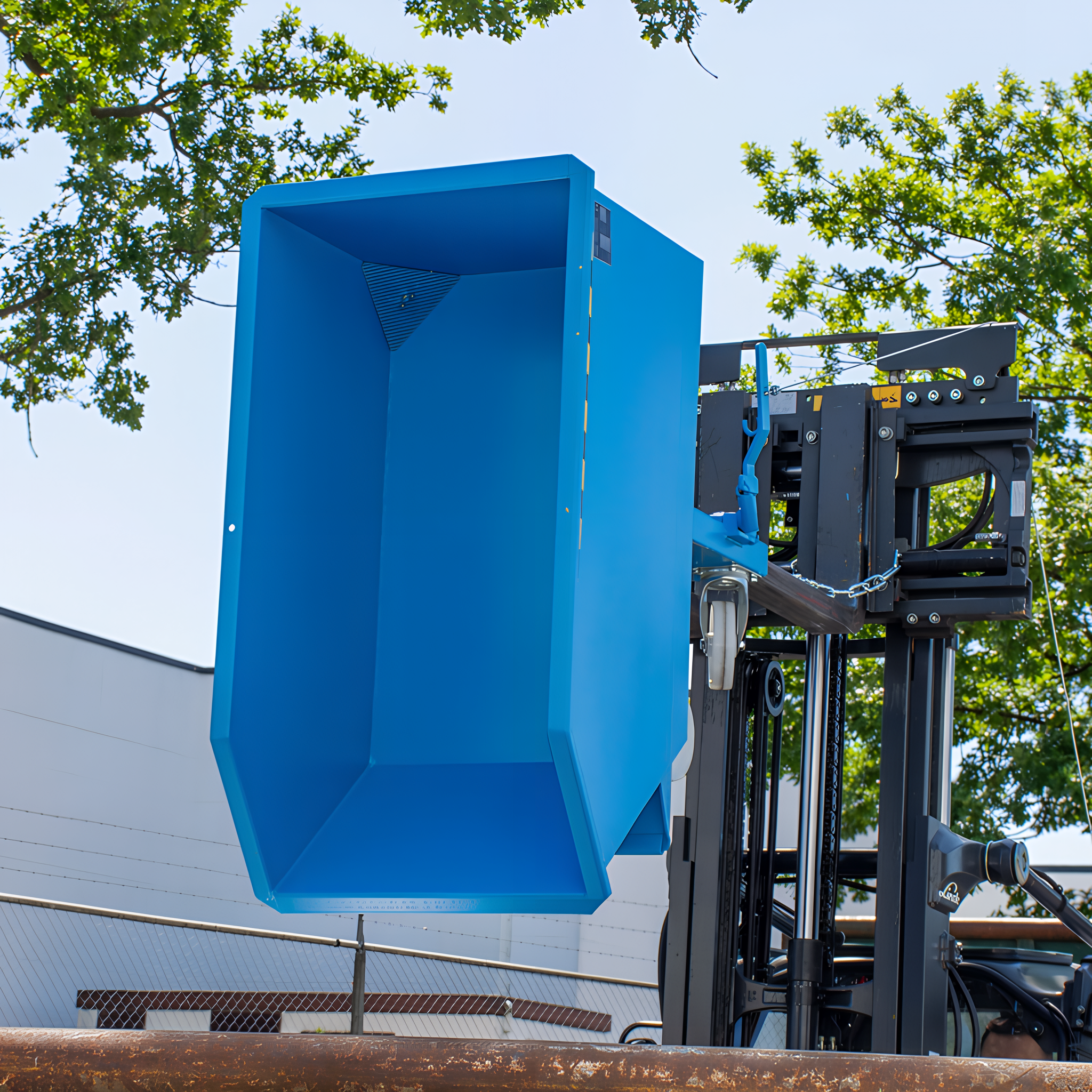

For efficient handling, the GU-E has a sturdy frame with integrated fork sleeves. The container can be emptied at any height using a cable operated directly from the forklift driver's seat. It can also be secured against slipping and unintentional emptying.

Key Features

Specifically designed to separate liquids from solids and collect them

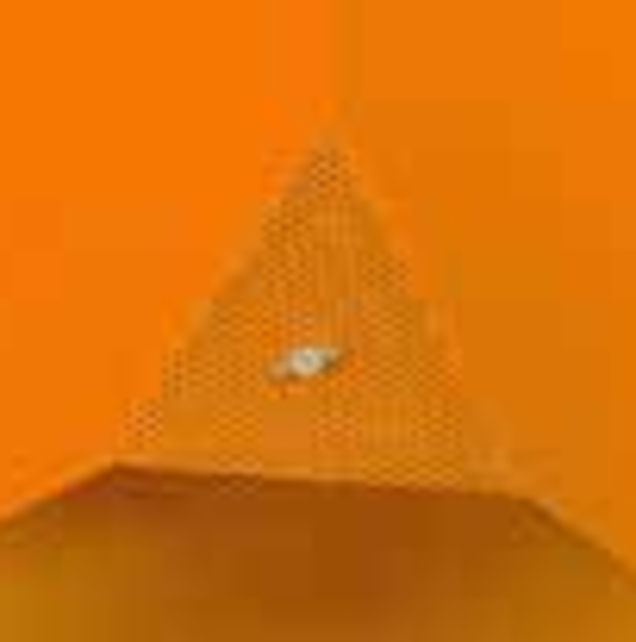

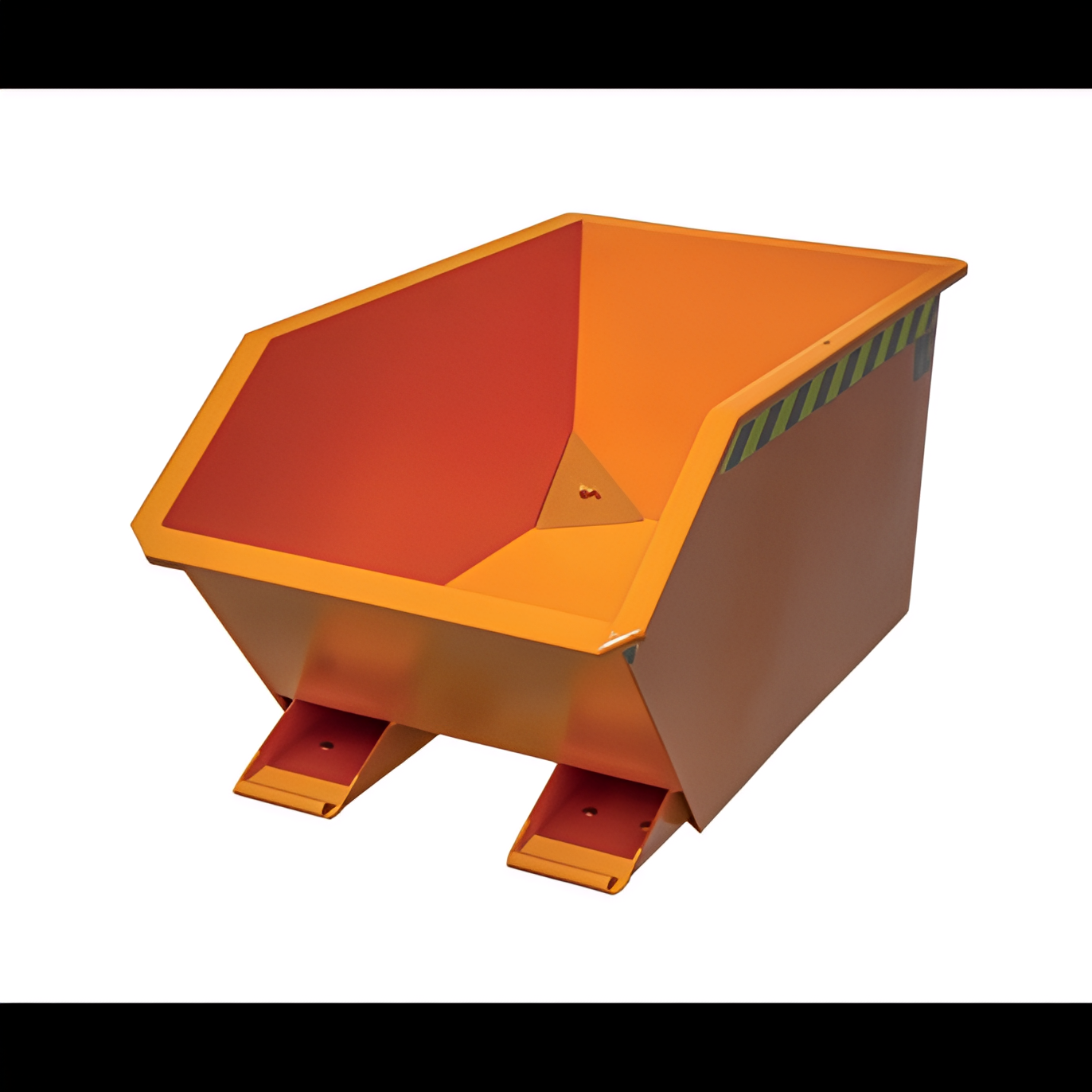

Perforated corner sieve
1" drain cock for draining liquids
Oil- and watertight welded construction

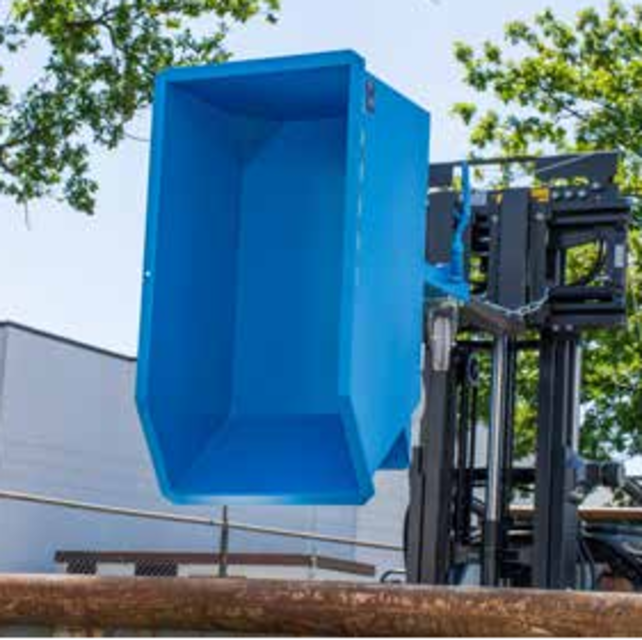

Cable-operated tipping from the forklift driver's seat
Can be emptied at any height
Body with all-round reinforced edging
Sturdy base frame with fork sleeves
Can be secured against slipping
Protection against unintentional emptying
Available from 300 to 2000 litres
Painted or hot-dip galvanized finish
Brand: BAUER
Made in Germany

BAUER GU-E Technical Specifications

Model	Approx. Volume	Dimensions L × W × H	Load Capacity	Weight Painted / Galvanized
GU-E 300	300 L	1440 × 680 × 580 mm	750 kg	95 / 102 kg
GU-E 500	500 L	1440 × 780 × 680 mm	1000 kg	113 / 122 kg
GU-E 750	750 L	1440 × 1280 × 680 mm	1000 kg	141 / 152 kg
GU-E 1000	1000 L	1640 × 1280 × 780 mm	1500 kg	186 / 204 kg
GU-E 1500	1500 L	1640 × 1280 × 1090 mm	1500 kg	217 / 238 kg
GU-E 2000	2000 L	1640 × 1680 × 1090 mm	1500 kg	246 / 270 kg

GU-E 2000 Specifications

Specification	Value
SKU / Article Code	SBTCGU-E2000L
Brand	BAUER
Model	GU-E 2000
Approx. Volume	2000 L / 2.00 m³
Dimensions	1640 × 1680 × 1090 mm
Load Capacity	1500 kg
Painted Weight	246 kg
Galvanized Weight	270 kg
Liquid Separation	Perforated corner sieve
Drain	1" drain cock
Construction	Oil- and watertight welded
Emptying	Cable operated from forklift driver's seat
Handling	Forklift fork sleeves

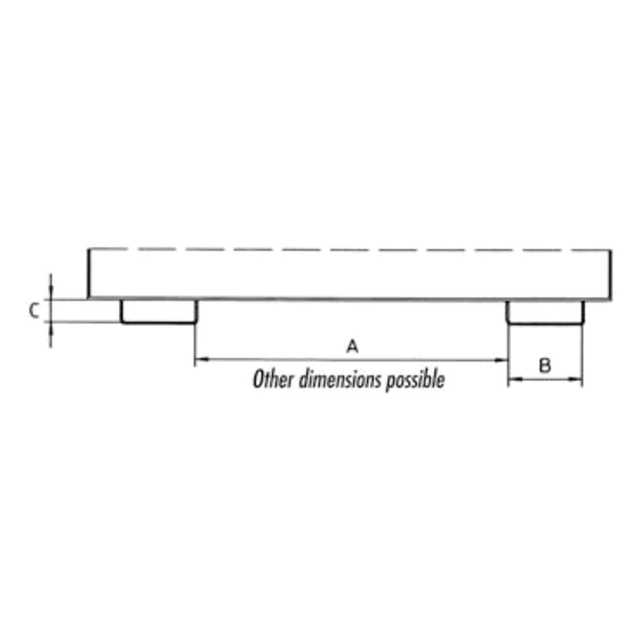

The GU-E 750 through GU-E 2000 models use fork sleeves with published inside dimensions of 495 × 200 × 60 mm.

Available Finishes

BAUER lists:

RAL 2000
RAL 3000
RAL 5012
RAL 6011
RAL 7005

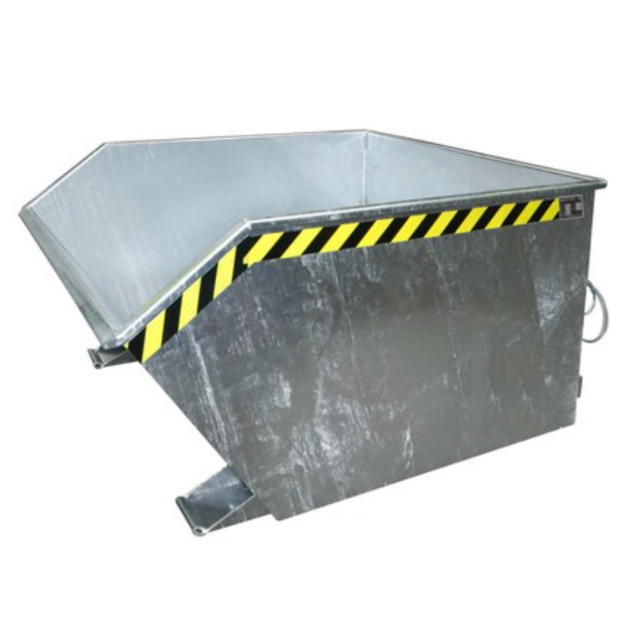

Hot-dip galvanized

Optional Accessories

Available accessories listed by BAUER include:

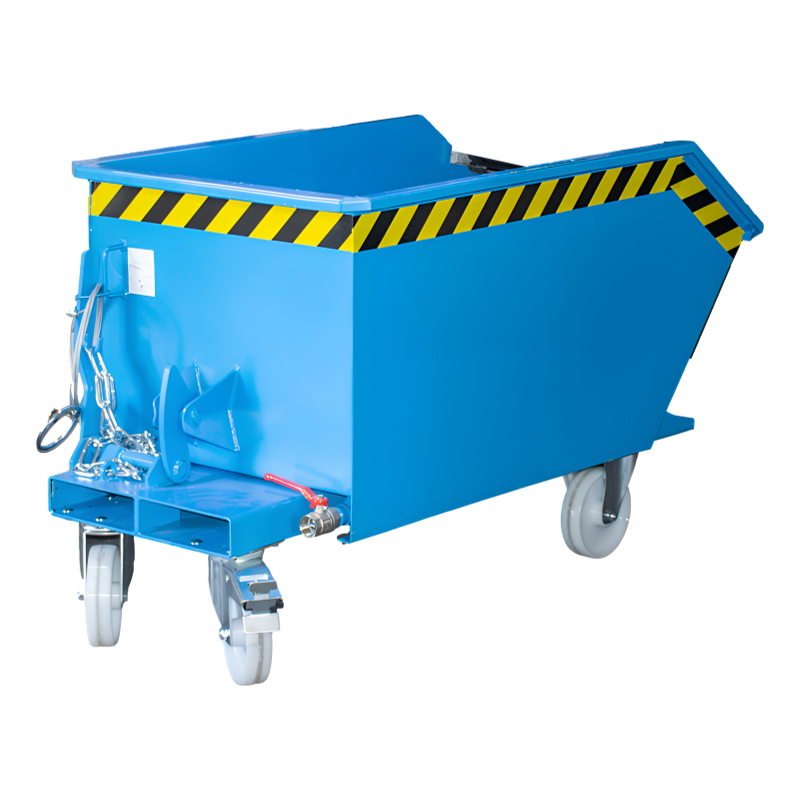

2 swivel + 2 fixed polyamide castors, Ø 180 mm
One swivel castor with brake
Galvanized lid opening from both sides
Pick-up for crane, lever trolley or pallet truck
Trailer coupling and towing bar
Adjustable dumping brake, except GU-E 300
Individual constructions on request

Applications

The GU-E is particularly suitable for:

CNC machining facilities
Metalworking companies
Turning and milling operations
Machine shops
Manufacturing facilities
Industrial workshops
Recycling operations
Industrial material and waste handling

Its combination of perforated corner sieve, drain cock and oil- and watertight construction makes it particularly useful where swarf or other solid material must be collected while allowing associated liquids to be separated and drained.
