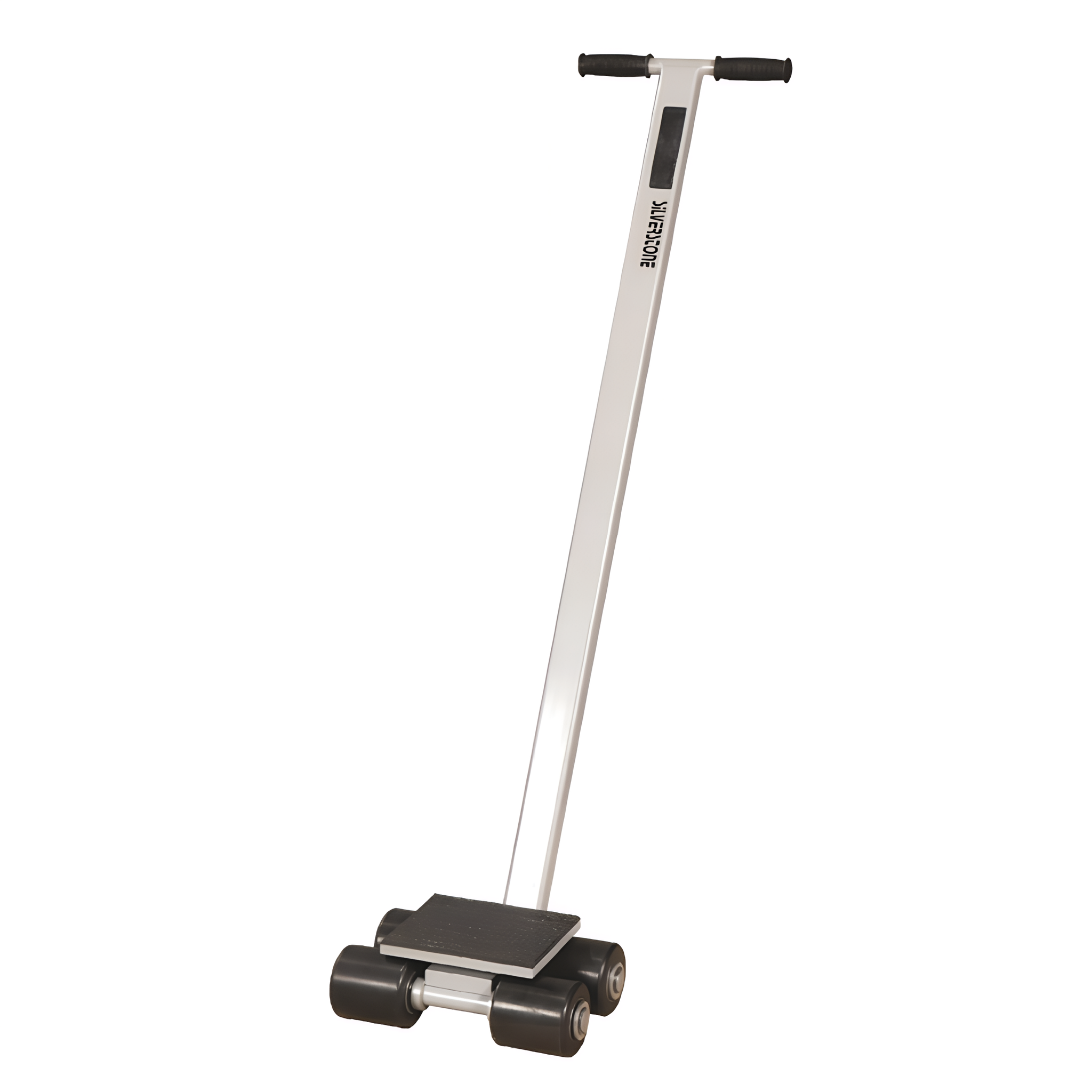

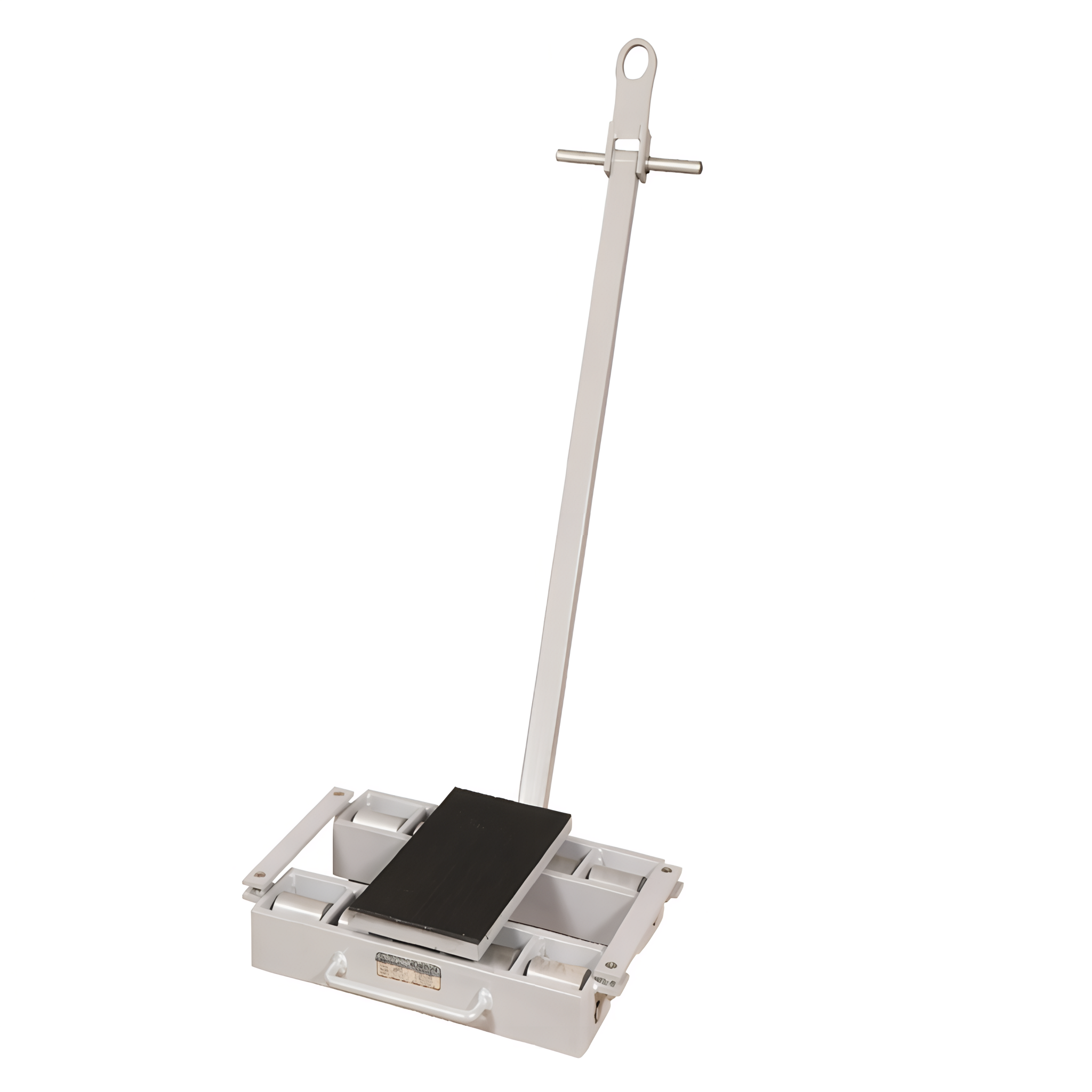

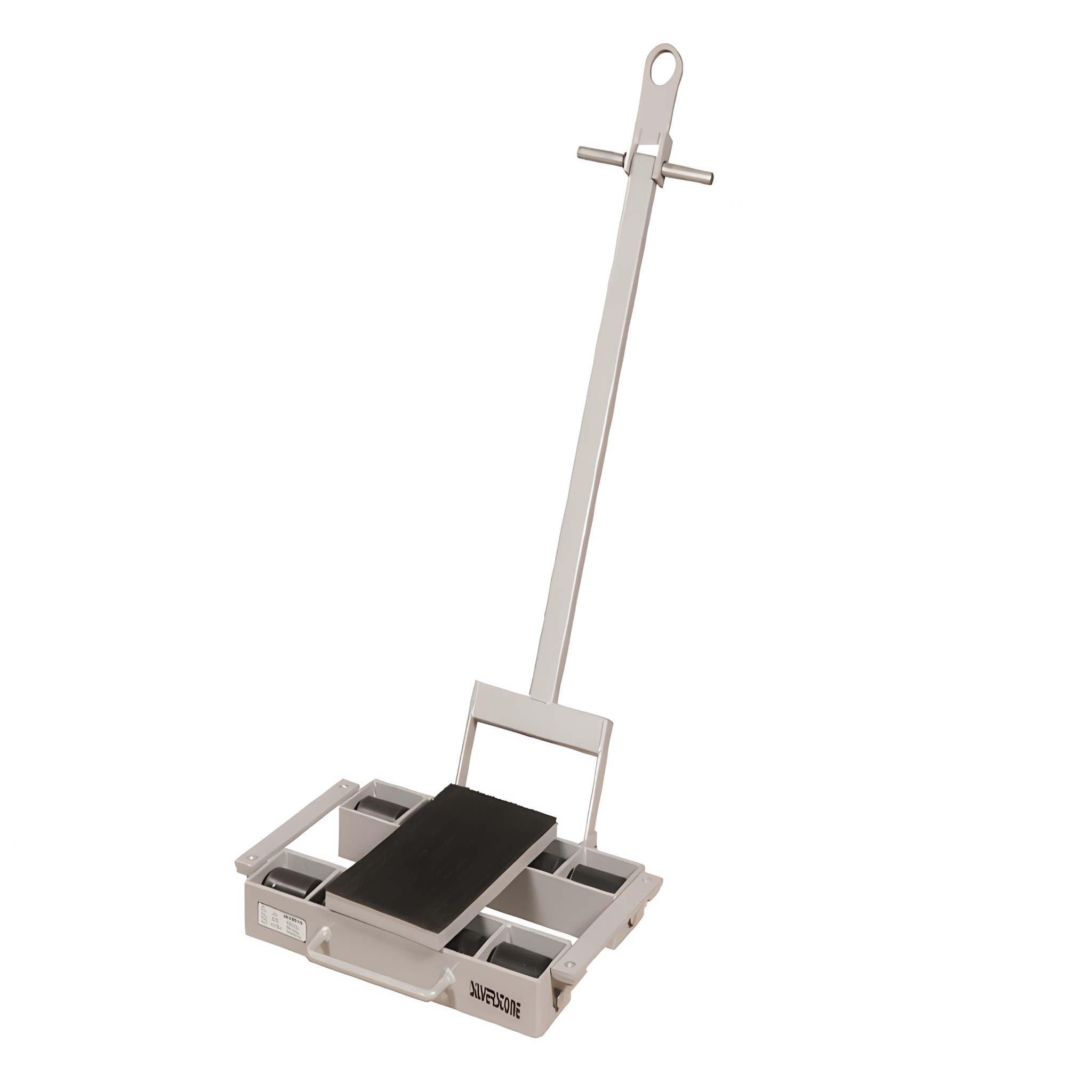

ST Series Steerable Machinery Skates 3–12 ton – swivel platform with drawbar
ST Series Steerable Machinery Skates 3–12 ton – swivel platform with drawbar for professional storage, workshop, production and logistics use. Technical information, advice and delivery throughout the Netherlands and Europe.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Machinery moving skate
This machinery skate supports controlled movement of machines and heavy objects over a suitable floor. Match support points, roller material and capacity to the load dimensions and distribution.
Use the technical data below to match the configuration to your load, workspace and intended application.
Features and benefits
- Drawbar: 1000 mm.
- Rotation: Platform on thrust bearing.
- 3 configurations with individual SKUs; compare their specifications below.
Technical specifications
Compare the configurations below. Specifications apply to the listed SKU; different capacities, fork lengths and drive systems are not interchangeable.
SBST3000
| SKU | SBST3000 |
|---|---|
| Maximum load capacity | 3000 kg |
| Wheel / roller material | Nylon |
| Drawbar | 1000 mm |
| Rotation | Platform on thrust bearing |
| Net weight | 35 kg |
| Model | SBST3000 |
SBST6000
| SKU | SBST6000 |
|---|---|
| Maximum load capacity | 6000 kg |
| Wheel / roller material | Nylon |
| Drawbar | 1000 mm |
| Rotation | Platform on thrust bearing |
| Coupling | Coupling for suitable towing equipment |
| Net weight | 40 kg |
| Model | SBST6000 |
SBST12000
| SKU | SBST12000 |
|---|---|
| Maximum load capacity | 12000 kg |
| Wheel / roller material | Steel |
| Drawbar | 1000 mm |
| Rotation | Platform on thrust bearing |
| Coupling | Coupling for suitable towing equipment |
| Net weight | 50 kg |
| Model | SBST12000 |
Applications
- Moving machinery during installation
- Repositioning equipment for maintenance
- Moving heavy cabinets and structural components
Configuration and use
Determine the centre of gravity and load at each support point. Do not simply add ratings without checking distribution. Check floor loading, route and rollers, and use suitable equipment to place the load on the skates.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBST3000 |
| SKU | SBST3000 |
| EAN | 9502314533645 |
