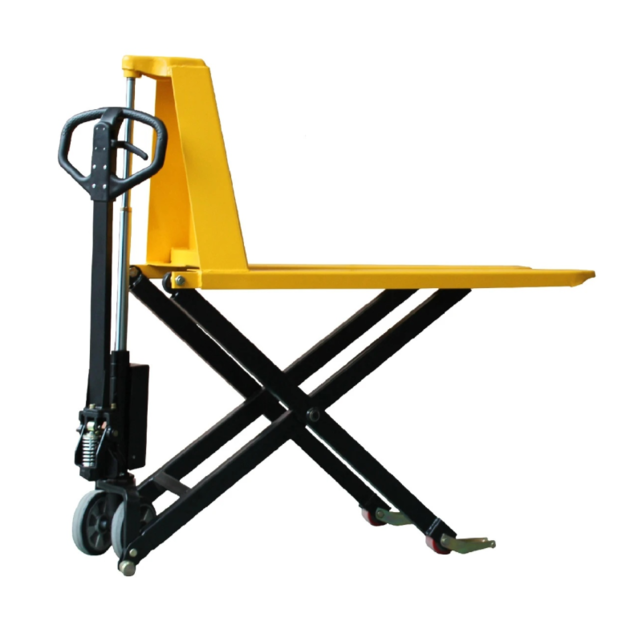

High lift pallet truck – SBHBL1000
This high lift pallet truck picks up suitable palletised goods and presents the load at working height. It brings materials within reach at packing and assembly stations.
The stated load capacity is 1000 kg. The technical table identifies the configuration, dimensions and operating details for this model.
Features and benefits
- Maximum load capacity: 1000 kg.
- Fork length: 1150 mm.
- Lift height min.–max.: 85–800 mm.
- Operation / lifting system: Manual pump.
- Wheel / roller material: PU (polyurethane).
Technical specifications
| SKU | SBHBL1000 |
|---|---|
| Maximum load capacity | 1000 kg |
| Lift height min.–max. | 85–800 mm |
| Fork length | 1150 mm |
| Fork width overall / per fork | 540 / 160 mm |
| Operation / lifting system | Manual pump |
| Lifting cylinder | Two-stage telescopic |
| Lift per pump stroke | 10 / 25 mm |
| Wheel / roller material | PU (polyurethane) |
| Net weight | 140 kg |
| Model | SBHBL1000 |
Applications
- Presenting palletised goods at packing stations
- Material supply beside assembly stations
- Unpacking and inspecting goods
Configuration and use
Check pallet openings, bottom construction and fork fit. A closed pallet bottom can obstruct the scissor mechanism. Match the load and working height to the instructions. A high lift pallet truck does not replace a stacker for racking work.
Options and accessories
Ask Salesbridges about compatible additional equipment or a different configuration for your application. Compatibility, scope of supply and any supplements are confirmed in the quotation. Accessories are described as included only where specified for the configuration.
Delivery in the Netherlands and across Europe
Salesbridges arranges delivery in the Netherlands and across Europe. Ask for current availability, lead time and transport costs for your delivery address. Specify access or unloading restrictions so delivery can be coordinated. Product weight and dimensions do not automatically equal packed shipping weight and transport dimensions.
Request a quotation
Request a quotation for one unit or multiple units. Include the required SKU or configuration, quantity, delivery address and any additional requirements. For advice, availability and pricing: [email protected] / +31652883848.
| Brand | SalesBridges |
| Article code | SBHBL1000 |
| SKU | SBHBL1000 |
| EAN | 9505598424982 |
