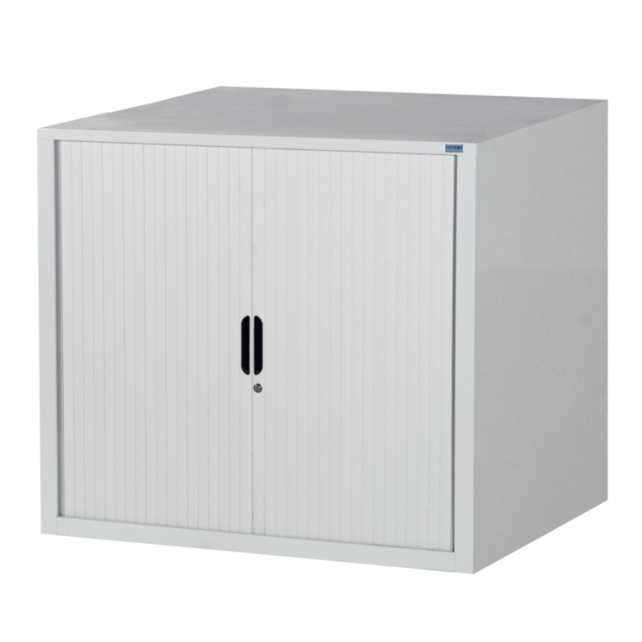

Roller shutter door cabinets storage cupboards for workshop H1000mm

Roll shutter door cabinets storage cupboards for workshop Height 1000mm

The doors are composed of 2 roller shutters with extruded PVC.The roller shutters slide in ABS rails located at the top and bottom and is recessed in a the space available on the interior of the cabinet side walls.

This system enables easy opening and ensures the space in front of the cabinet is totally unimpeded.
The metal end blades on both sides are equipped with ABS recessed handles, a flush-mounted key lock which moves the locking system to latch into the end blade of the opposite door, thus providing a 1-pointlocking mechanism.

The shelves are made of folded sheet steel. They are foreseen with a welded omega-form stiffener which provides greater rigidity and allow an evenly distributed load of 150kg per shelf.

They are height adjustable in step of 25mm and secured with galvanized steel latches.

All metal elements are finished with epoxy powder paint, oven polymerized at 180°C.

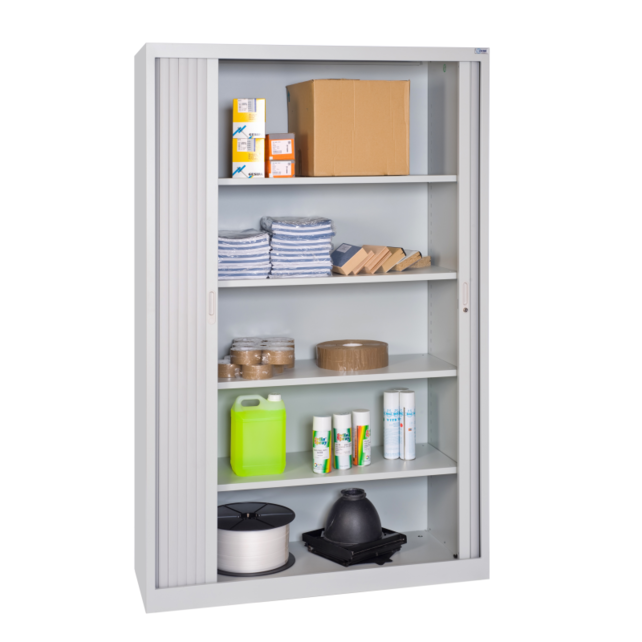

The roller shutter door cabinets are available in 2 heights: 1000 mm (2 shelves) and 1950 mm (4 shelves) and a width of 1200 mm. The useful width of the cabinet is 1045mm.

Attention: The short cabinets are not stackable!

Compliant with standard NF D65 763
