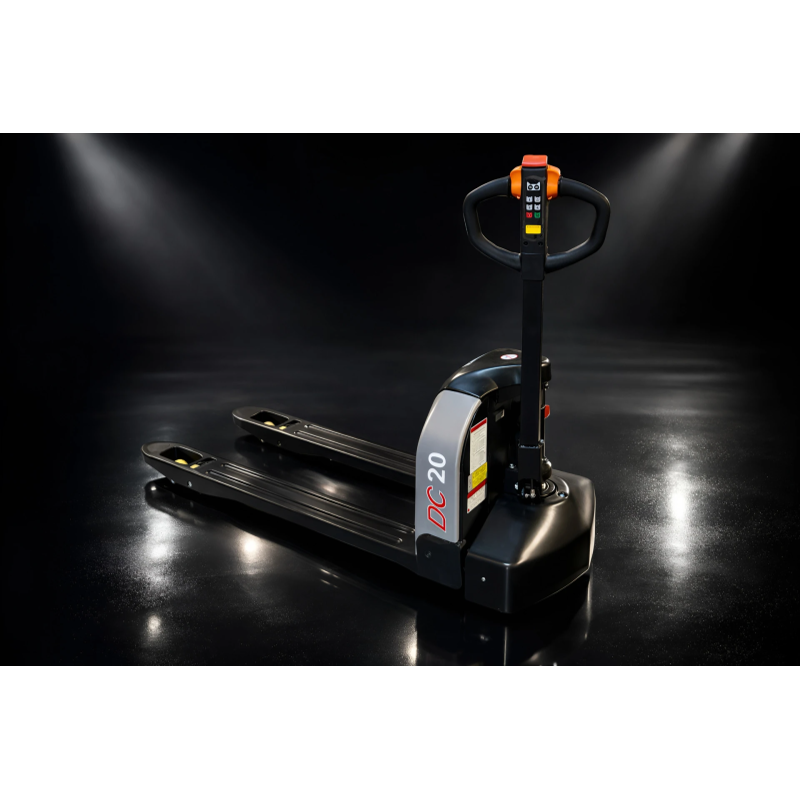

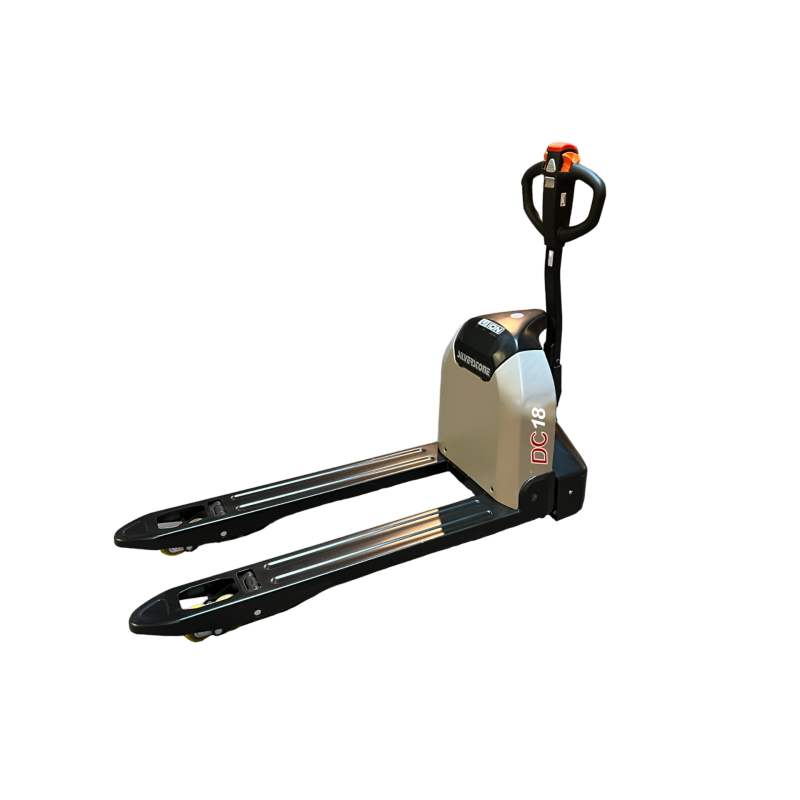

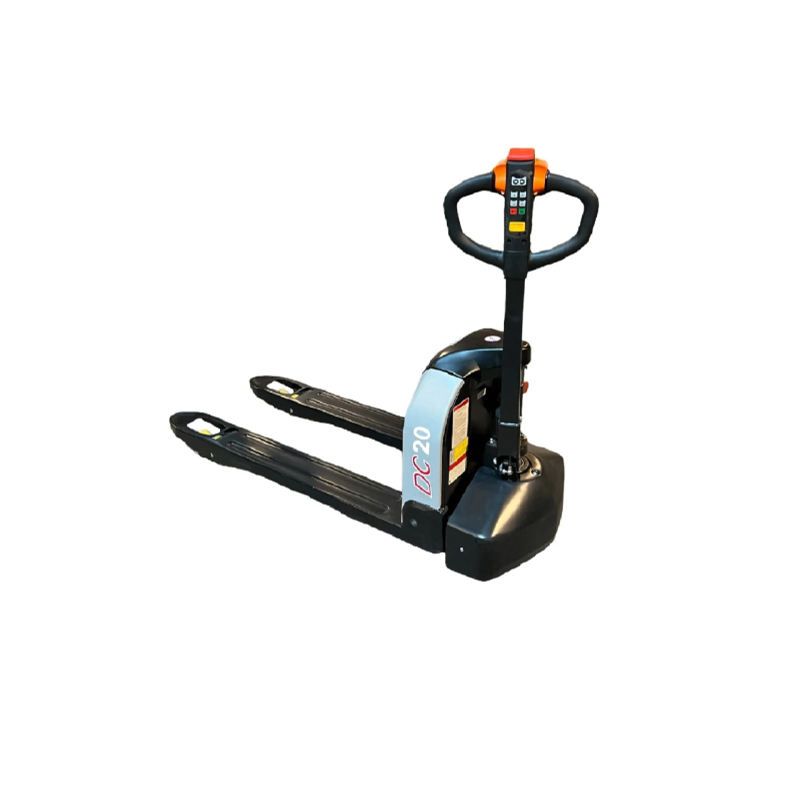

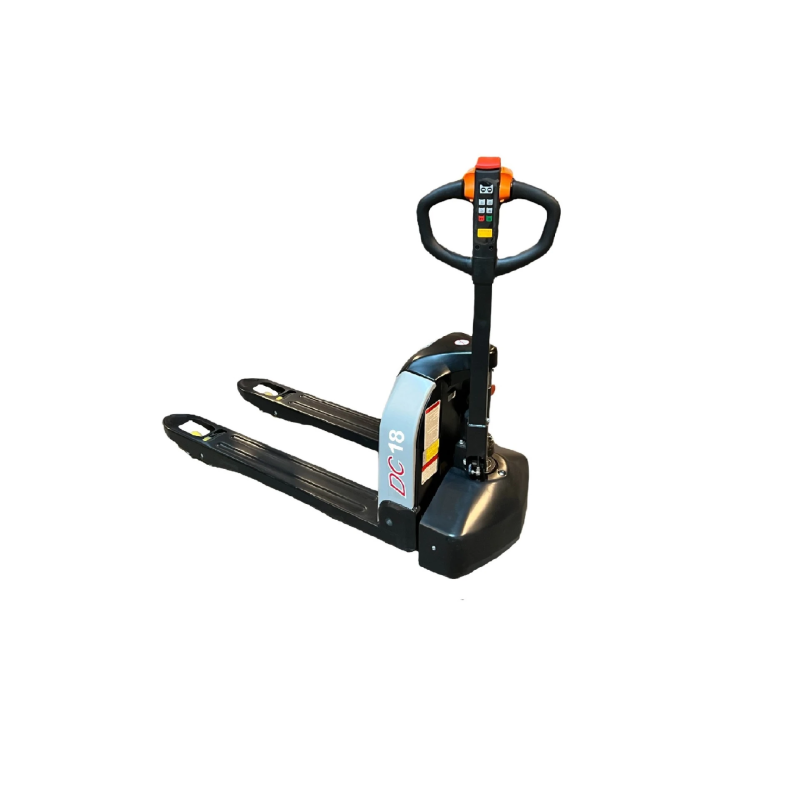

Powered Pallet Truck up to 2000kg – Lithium Battery – DC – 200mm Lift
Compact and fast electric pallet truck with electrical lifting and manual lowering function. Maintenance-free removable 20Ah lithium battery provides minimum 3 hours effective use. Charging time only 2.5 hours. Extremely compact design with 1345mm turning
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Powered Pallet Truck – Lithium Battery – Up to 2000 kg – 200mm Lift
These compact and fast electric pallet trucks feature electrical lifting and manual lowering functions, designed for efficient material handling in warehouses, distribution centers, and production facilities. With an extremely compact design and a turning radius of only 1345 mm, these trucks excel in tight spaces and narrow aisles.

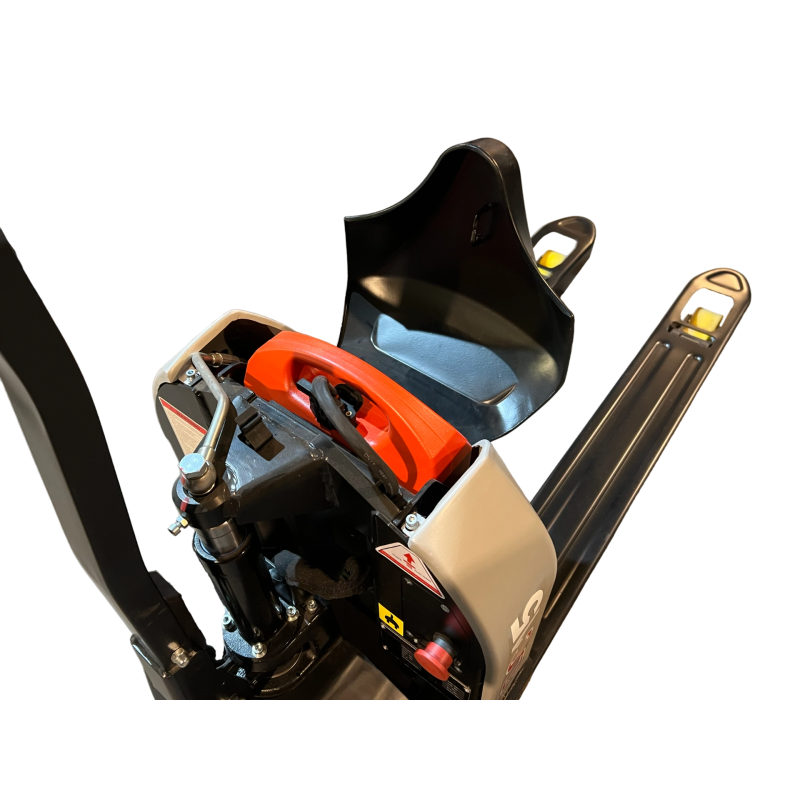

Powered by a maintenance-free removable 48V/20Ah lithium battery that provides minimum 3 hours of effective use, these trucks offer reliable operation with a fast charging time of only 2.5 hours. The battery can be changed in just 5 seconds for continuous operation. The electromagnetic brakes provide safe and controlled stopping.

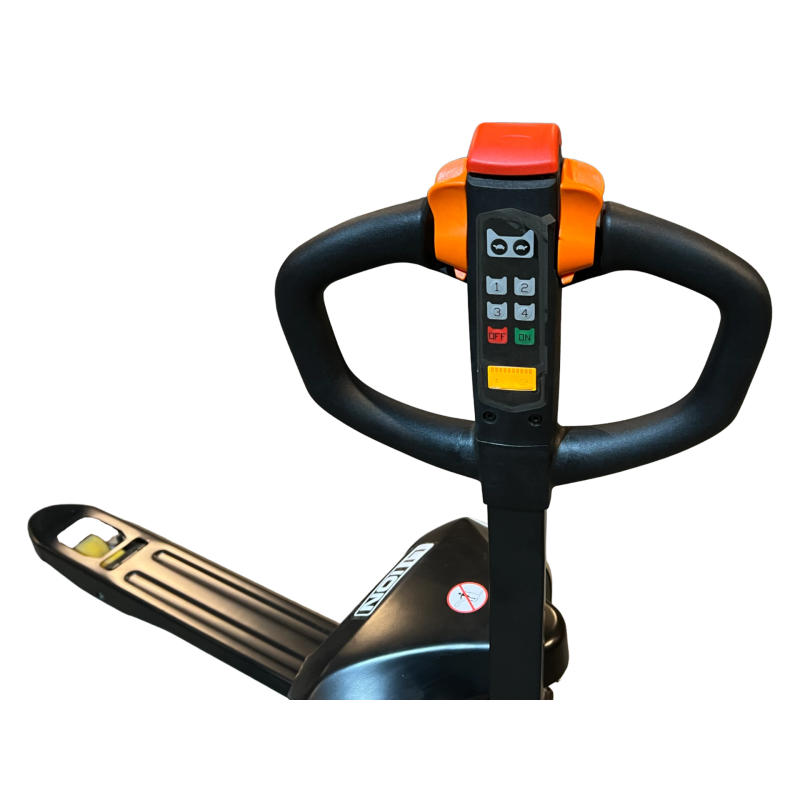

The ergonomically designed handle features a horn, electrical lifting function, and a digital display for battery status and error codes. The Curtis control system ensures smooth and precise operation. Fork length is 1150 mm.
Key Features
-
Capacity: 1800 kg (DC18) / 2000 kg (DC20)
-
Lift height: 200 mm
-
Electrical lifting function
-
Manual lowering function
-
Maintenance-free removable 48V/20Ah lithium battery
-
Minimum 3 hours effective use per charge
-
Charging time: only 2.5 hours
-
Battery change in 5 seconds
-
Extremely compact design
-
Turning radius: 1345 mm
-
Error code display
-
Digital display for battery status
-
Ergonomically designed handle with horn
-
Curtis control system
-
Electromagnetic brakes
-
PU wheels (steering and fork wheels)
-
Travel speed: 4.2-4.5 km/h (load/unload)
-
Fork length: 1150 mm
Technical Specifications
| Specification | DC18 | DC20 |
|---|---|---|
| Type | Walkie | Walkie |
| Capacity (kg) | 1800 | 2000 |
| Ground clearance (mm) | 35 | 35 |
| Fork dimensions (LxWxH) (mm) | 1150x150x50 | 1150x150x50 |
| Outer fork width (mm) | 550 | 550 |
| Weight (kg) | 148 | 150 |
| Wheel type | PU/PU | PU/PU |
| Steering wheel (mm) | Ø210x70 | Ø210x70 |
| Fork wheel (mm) | Ø80x60 | Ø80x60 |
| Wheels | 1x/4 | 1x/4 |
| Load center (mm) | 600 | 600 |
| Total length (mm) | 1550 | 1550 |
| Total width (mm) | 550 | 550 |
| Lifting height (mm) | 200 | 200 |
| Turning radius (mm) | 1345 | 1345 |
| Travel speed load/no load (km/h) | 4.2-4.5 | 4.2-4.5 |
| Length with 1000x1200 pallet (mm) | 1750 | 1750 |
| Length with 800x1200 pallet (mm) | 1800 | 1800 |
| Max gradeability load/no load (%) | 5/10 | 5/10 |
| Battery (V/Ah) | 48/20 | 48/20 |
| Battery type | Lithium maint. free | Lithium maint. free |
| Brakes | Electromagnetic | Electromagnetic |
| Control system | CURTIS | CURTIS |
| Drive motor (kW) | DC 0.75 | DC 0.75 |
| Lift motor (kW) | 0.8 | 0.8 |
Standard Delivery
-
Complete powered pallet truck
-
Electrical lifting function
-
Manual lowering function
-
Maintenance-free removable 48V/20Ah lithium battery
-
Battery charger included
-
Digital display with error code display
-
Ergonomically designed handle with horn
-
Curtis control system
-
PU wheels
-
Electromagnetic brakes
Delivery
Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
Request for Quotation
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | Salesbridges |
| Article code | SBDC18 |
| SKU | SBDC18 |
| EAN | 9504139431854 |
