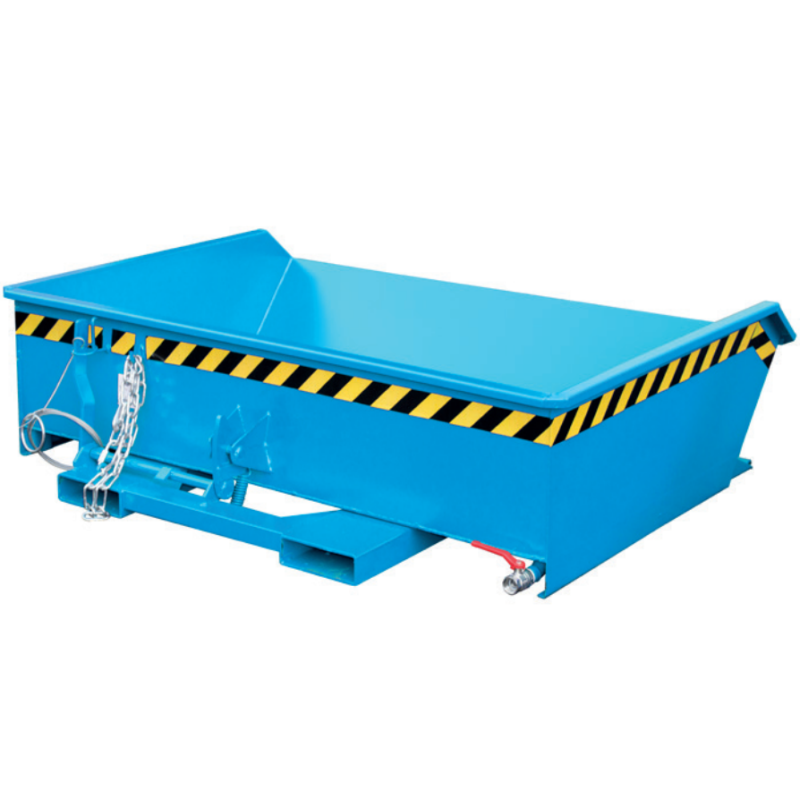

BAUER SMGU Mini Swarf Tipping Container 230–610L

The BAUER SMGU Mini Swarf Tipping Container is specifically designed for industrial applications where metal swarf, machining residues and liquids need to be collected and separated in confined working areas.

Its key advantage is the extremely low overall construction height of only 450 mm. This makes the SMGU particularly suitable for positioning close to CNC machines, lathes, milling machines and other production equipment. The low 350 mm dumping-edge height supports direct collection of swarf and machining waste.

The BAUER SMGU series is available in approximately 230, 270, 460 and 610 litre capacities.

Separation of Liquids and Solids

The SMGU is designed to collect solid machining waste while separating associated liquids.

Each container incorporates:

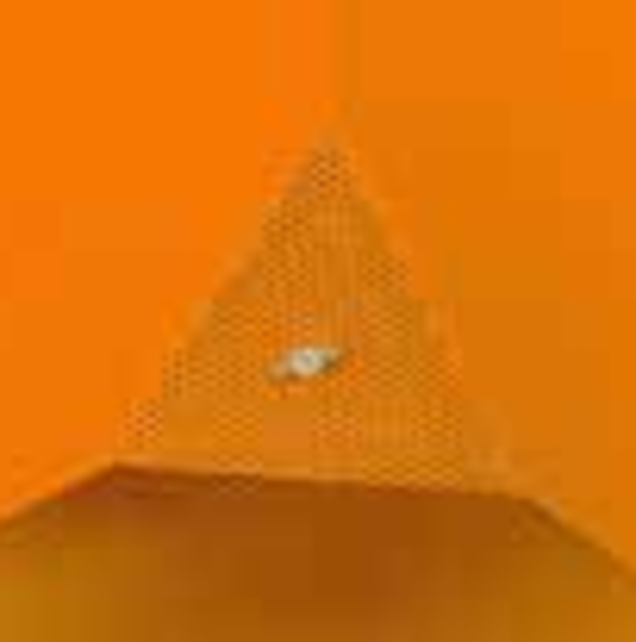

• Perforated corner sieve

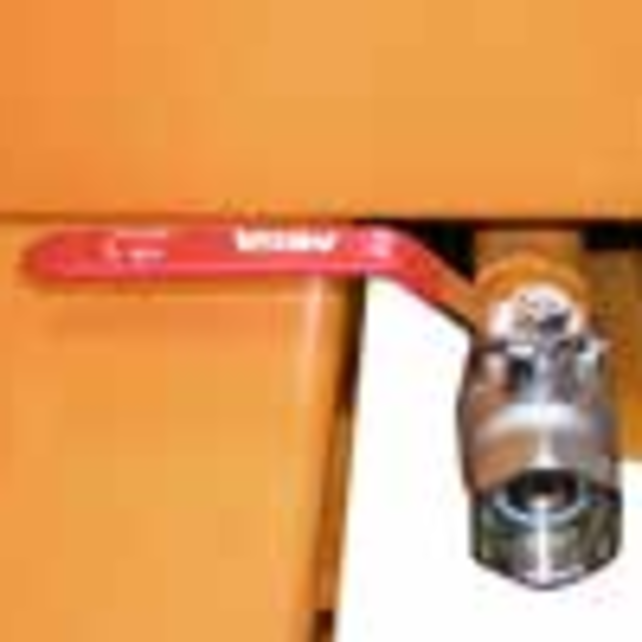

• 1" drain cock

• Oil- and watertight welded construction

Metal chips and other solid materials remain inside the container while coolant, lubricant and other liquids can separate from the solids.

Collected liquid can then be discharged in a controlled manner through the integrated 1-inch drain cock.

Key Features

• Compact mini swarf tipping container

• Extremely low 450 mm overall height

• Dumping-edge height only 350 mm

• Capacities from 230 to 610 litres

• Designed to separate liquids from solids

• Perforated corner sieve

• Integrated 1" drain cock

• Oil- and watertight welded construction

• Robust steel body

• All-round reinforced edging

• Sturdy base frame with fork sleeves

• Suitable for forklift handling

• Cable-operated tipping from the driver's seat

• Can be emptied at any height

• Secured against slipping

• Protection against unintentional emptying

• Painted or hot-dip galvanized versions

• Optional castors and accessories

• Brand: BAUER

• Made in Germany

Ideal for CNC and Metalworking Operations

The exceptionally low-profile design makes the BAUER SMGU suitable for positioning directly beside or beneath industrial machinery.

Typical applications include:

• CNC machining centres

• Lathes

• Milling machines

• Sawing machines

• Metalworking equipment

• Machine shops

• Manufacturing facilities

• Maintenance workshops

Typical collected materials include:

• Metal swarf

• Steel chips

• Aluminium chips

• Machining waste

• Production residues

• Coolant-contaminated swarf

• Oil-contaminated machining residues

Forklift Tipping Operation

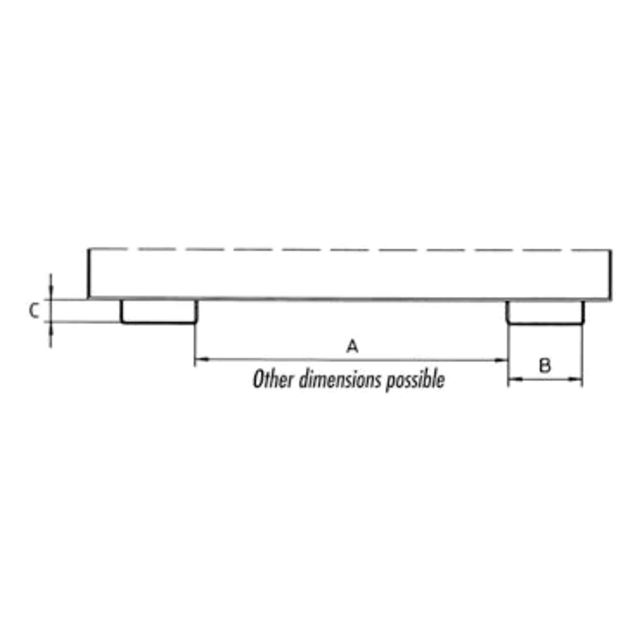

Integrated fork sleeves allow the SMGU to be picked up directly by a forklift.

The tipping mechanism is activated using a cable from the forklift driver's seat, allowing controlled emptying without requiring the operator to leave the forklift.

The container is designed to be secured against slipping and unintended emptying during handling.

BAUER SMGU Technical Specifications

General Technical Specifications

Available Finishes

• RAL 2000 Orange

• RAL 3000 Red

• RAL 5012 Blue

• RAL 6011 Green

• RAL 7005 Grey

• Hot-dip galvanized

Optional Accessories

• 2 swivel and 2 fixed polyamide castors Ø 100 mm

• One swivel castor with brake

• Castor construction height: 125 mm

• Galvanized lid opening from both sides

• Crane pick-up

• Lever trolley pick-up

• Pallet truck pick-up

• Trailer coupling and towing bar

• Adjustable dumping brake, except SMGU 230

• Special constructions on request

Delivery in the Netherlands and Across Europe

SALESBRIDGES supplies BAUER SMGU Mini Swarf Tipping Containers to professional and industrial customers throughout the Netherlands and across Europe.

Contact us for model selection, availability, accessories, project quantities or a quotation.
