Mini lifting beam - 500-800 kg
€443,45
Incl. tax
Bauer
Mini lifting beam - 500-800 kg
EUR 443,45
Excl. tax
EUR 536,57
Incl. tax
Excl. Shipping costs

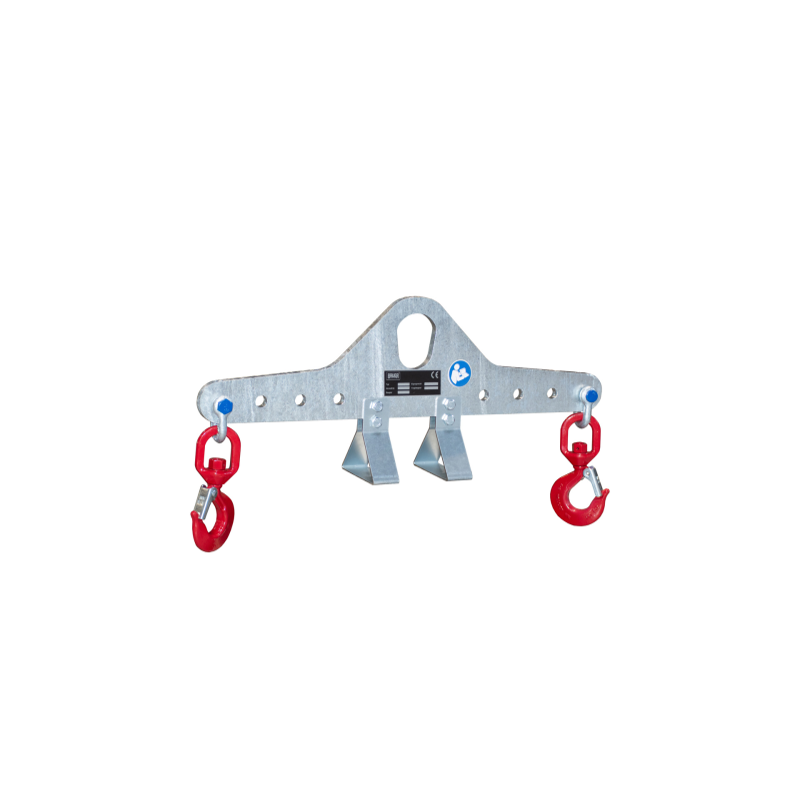

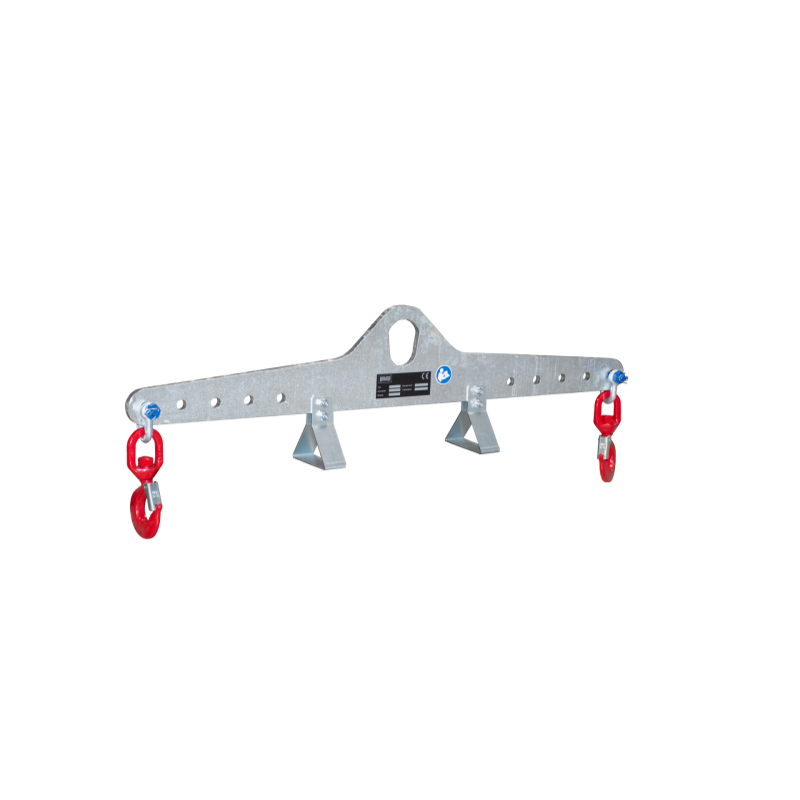

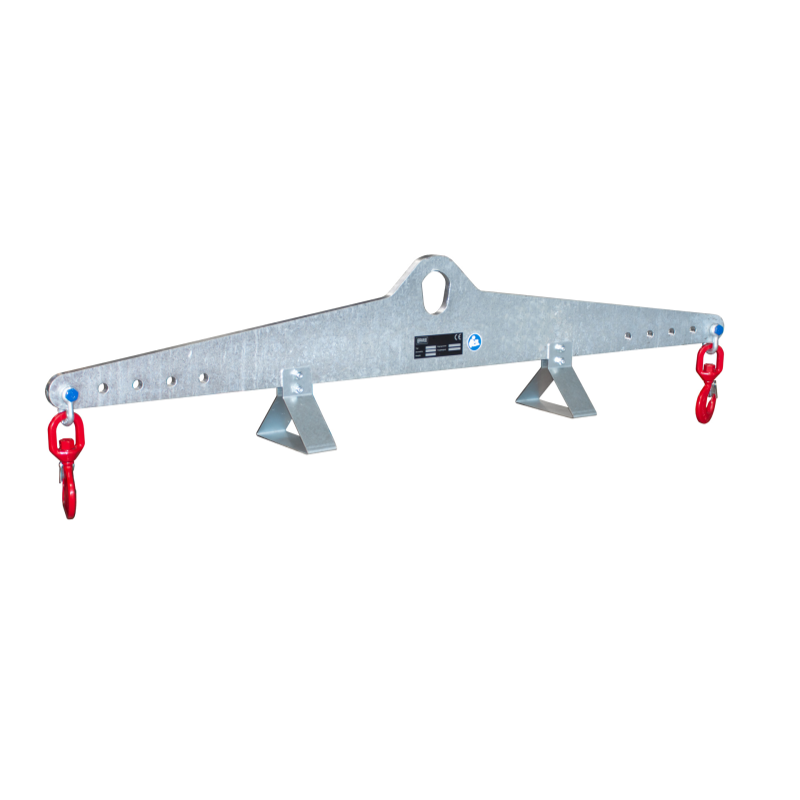

Adjustable mini lifting beam with crane lifting eye and two swivel hooks for crane transport.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description
Mini lifting beam - 500-800 kg
With crane lifting eye, two swivel hooks and adjustment holes for variable hook positions. Support legs comply with DGUV 100-500, chapter 2.8.
Key features
- Non-fixed load lifting attachment compliant with DIN EN 13155

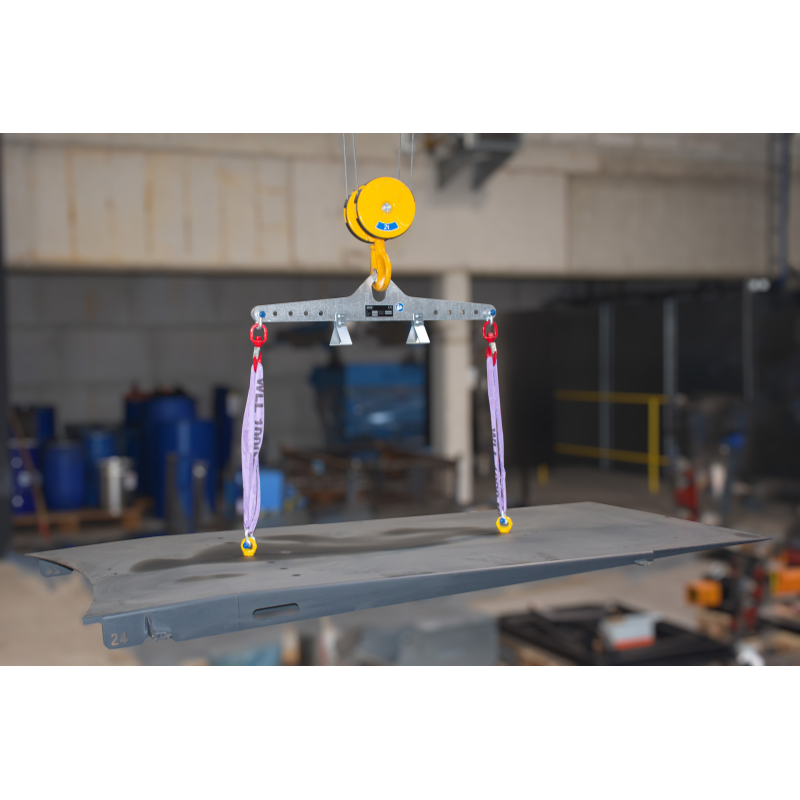

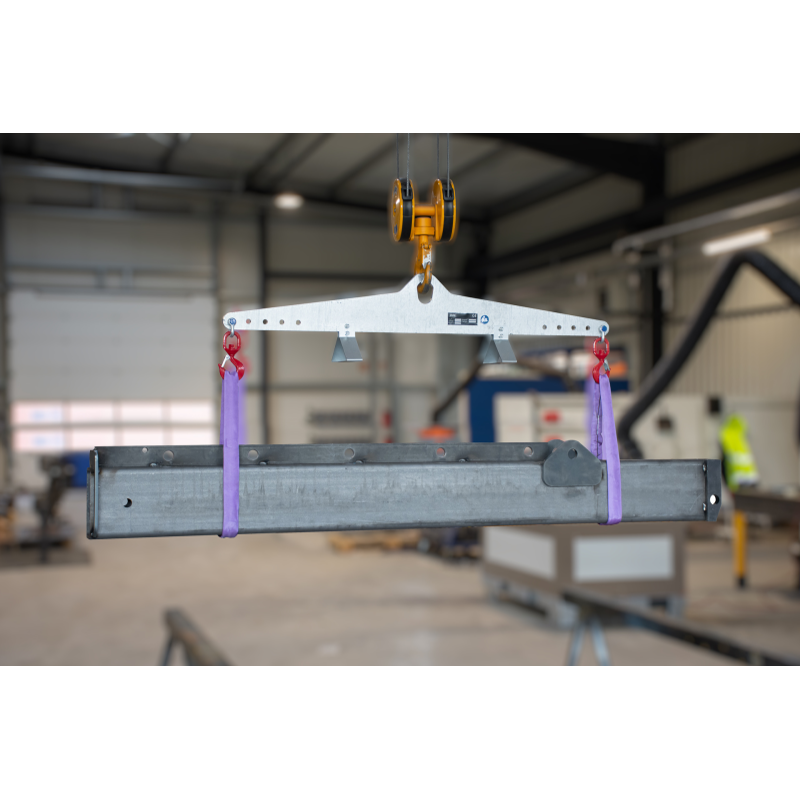

- Designed to move loads, workpieces or machine parts by crane
- Three hook-spacing ranges available
Technical specifications
| Model | Hook spacing min.-max. | Capacity | Dimensions L × W × H | Weight |
|---|---|---|---|---|
| TM 200-500 | 200-500 mm | 500 kg | 550 × 100 × 305 mm | 6 kg |
| TM 400-800 | 400-800 mm | 500 kg | 850 × 100 × 305 mm | 8 kg |
| TM 800-1200 | 800-1200 mm | 800 kg | 1250 × 160 × 340 mm | 17 kg |
Delivery and quotation
SALESBRIDGES delivers throughout the Netherlands and across Europe. For availability, technical advice or an RFQ, contact [email protected] or +31 6 52883848.
Product information
| Brand | Bauer |
| Article code | SBTM200500 |
| SKU | SBTM200500 |
