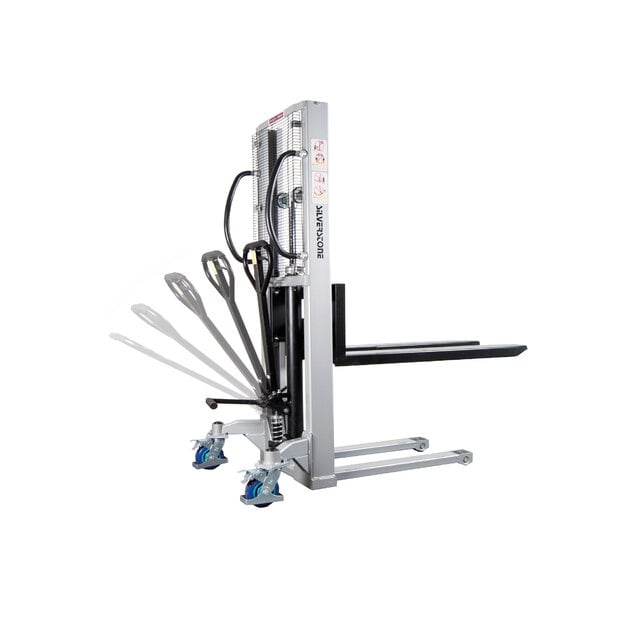

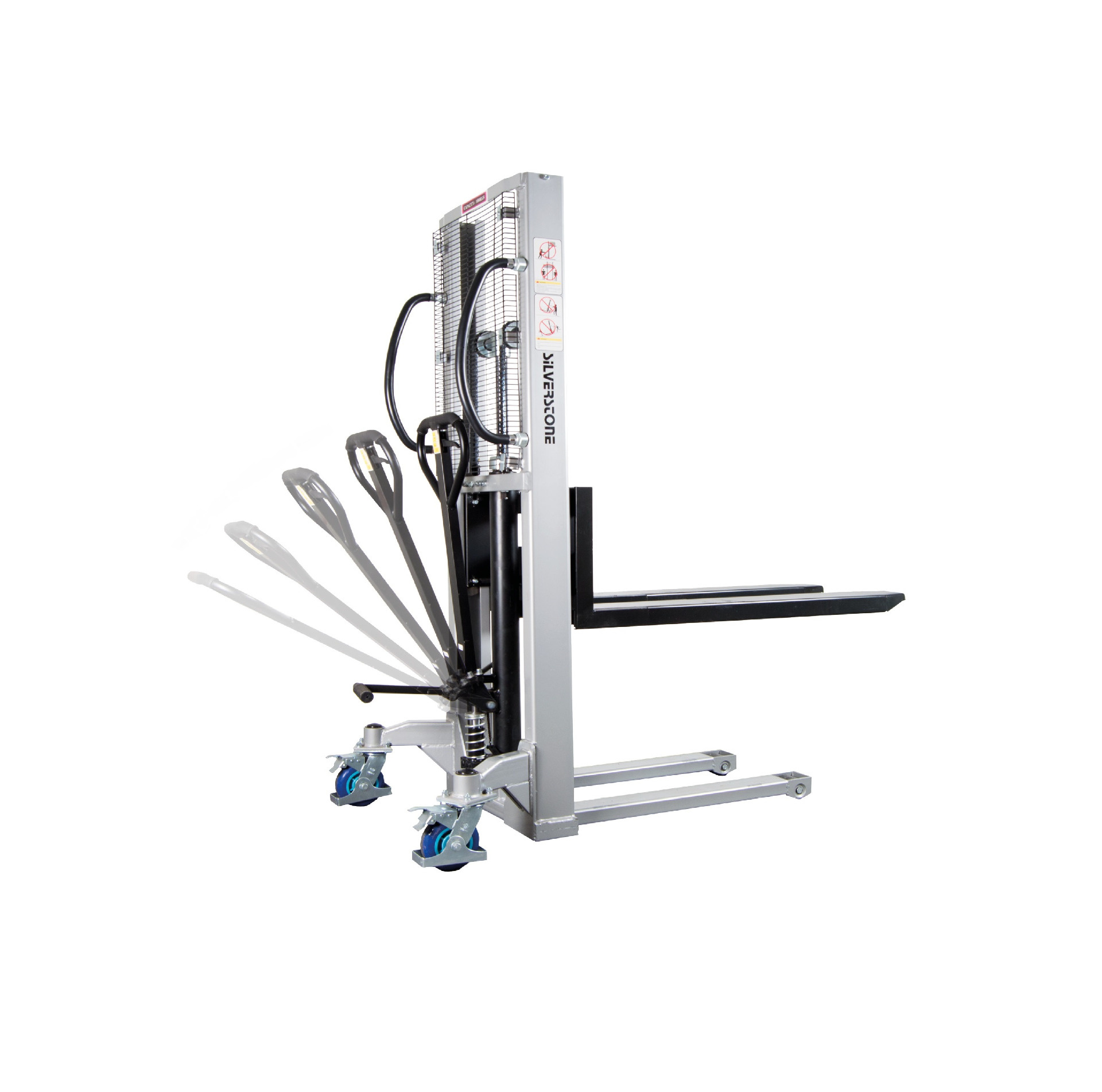

Manual Stacker with Quicklift - Lifting height 2900 mm - 1000 kg

The SBES1029 manual stacker with Quicklift is a robust and high-performance solution for lifting and stacking pallets at increased heights in warehouses, distribution centers, and industrial environments. With a load capacity of 1000 kg and a maximum lifting height of 2900 mm, this manual pallet stacker is designed for professional internal material handling where safety, stability, and efficiency are critical.

The stacker is built with a welded and reinforced steel chassis, ensuring excellent durability under heavy loads and intensive daily use. Its duplex 2-stage lifting mast, manufactured from strong C-section steel profiles, is equipped with dual lifting chains and a single lifting cylinder, providing smooth, controlled, and stable lifting operations. The integrated Quicklift system enables rapid lifting of light loads, achieving up to 45 mm per pump stroke in quick mode, which significantly reduces operator effort and increases productivity.

A sealed hydraulic system with protected pump and built-in overload valve ensures safe operation and a long, trouble-free service life. The stacker can be operated ergonomically using both a hand pump and a foot pump, offering maximum flexibility for the operator. Fully compliant with EN1757, the SBES1029 is suitable for demanding professional and industrial applications.

Technical Specifications
