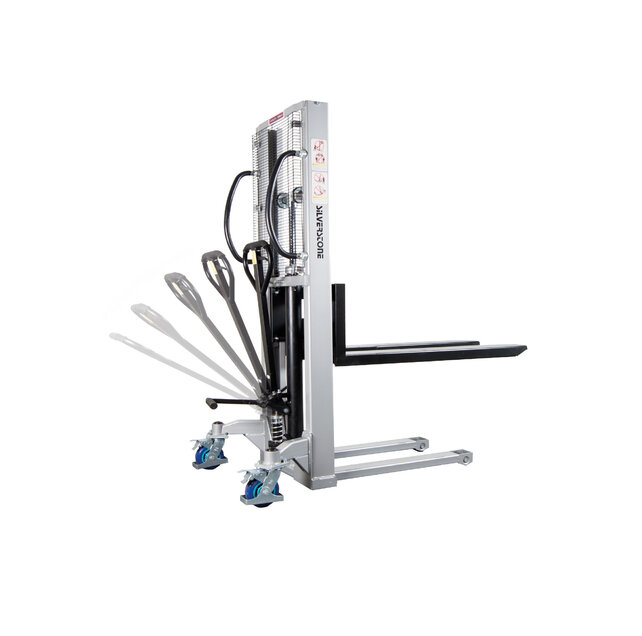

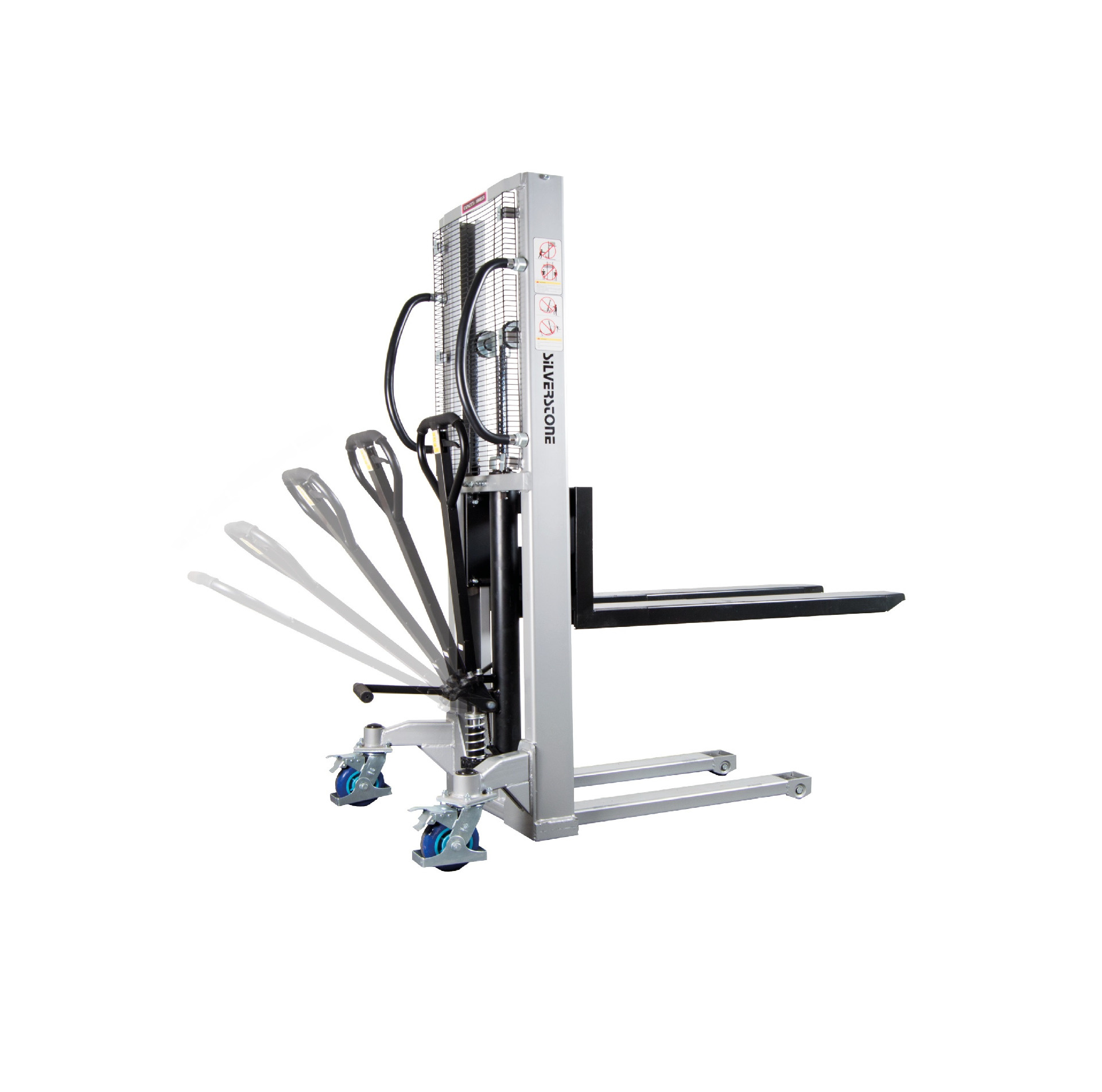

Manual Stacker with Quicklift - Lifting height 2500 mm - 1000 kg

The SBES1025 manual stacker with Quicklift is a reliable solution for lifting and stacking pallets at greater heights in warehouses, production facilities, and logistics environments. With a lifting capacity of 1000 kg and a maximum lifting height of 2500 mm, this manual pallet stacker is ideal for professional internal material handling where stability, safety, and efficiency are essential.

The stacker features a welded and reinforced steel chassis, designed to withstand heavy loads and intensive daily use. Its duplex 2-stage lifting mast, constructed from high-strength C-section profiles, is equipped with dual chains and a single lifting cylinder, ensuring smooth, controlled, and stable lifting operations. The Quicklift system allows fast lifting of light loads, raising up to 45 mm per pump stroke in quick mode, significantly reducing operator effort and improving productivity.

A sealed hydraulic system with protected pump and integrated overload valve ensures long, trouble-free operation and high safety standards. The stacker is operated easily via both hand pump and foot pump, providing ergonomic flexibility. Fully compliant with EN1757, the SBES1025 is suitable for demanding professional and industrial applications.

Technical Specifications
